Digital Video Recorder(DVR)
User Manual

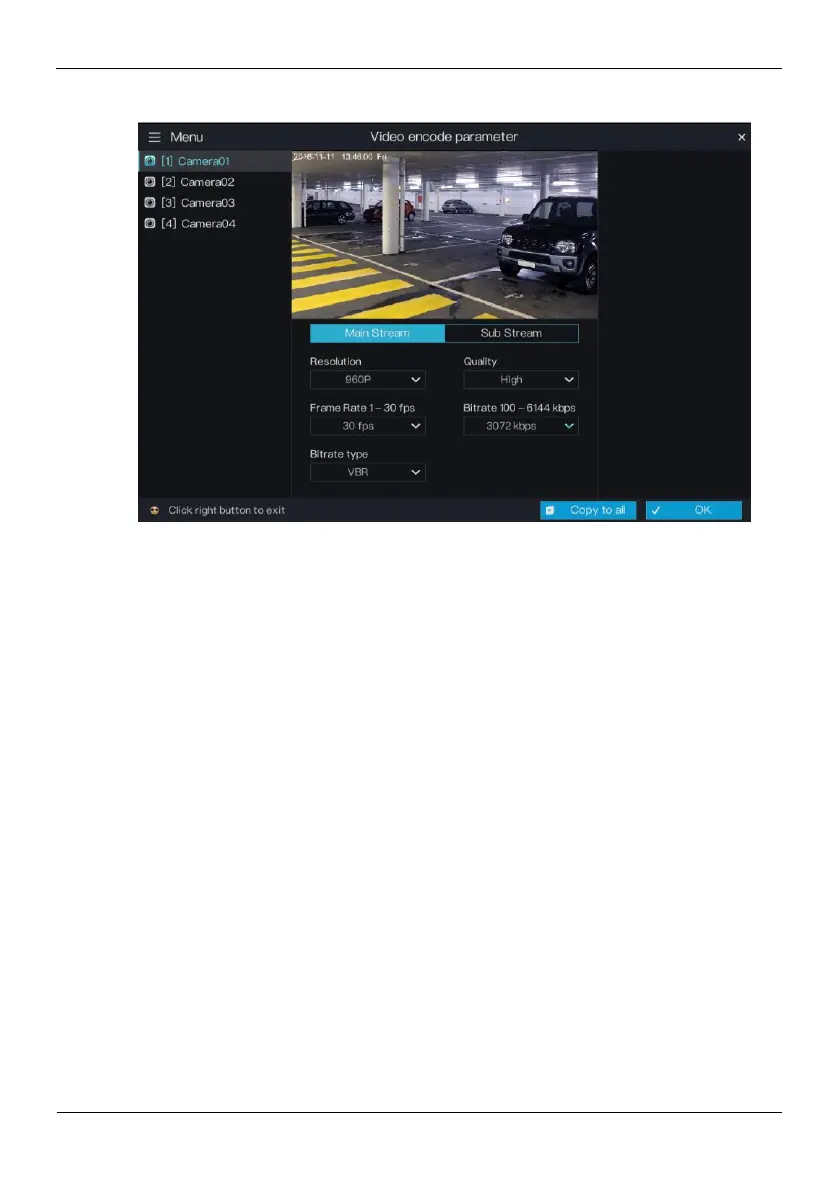

Figure 5-4 Encode Parameter screen
Operation Steps
Step 1 Click a camera in the camera list on the left side of the Encode Parameter screen.
Step 2 Select Main Video or Sub Video.
Step 3 Set Resolution, Quality, Frame rate, Bitrate and Bitrate type.
Step 4 Click OK to save encode parameter settings or click Copy to all , then click OK to
apply the parameter settings to cameras of all channels.
----End
5.4 Video loss
If a camera was disconnected, it will show video loss.
Operation Description
Click Menu in the upper left corner of the camera management screen and choose
Video loss to access the video loss screen, as shown in Figure 5-5.
