Digital Video Recorder(DVR)
User Manual

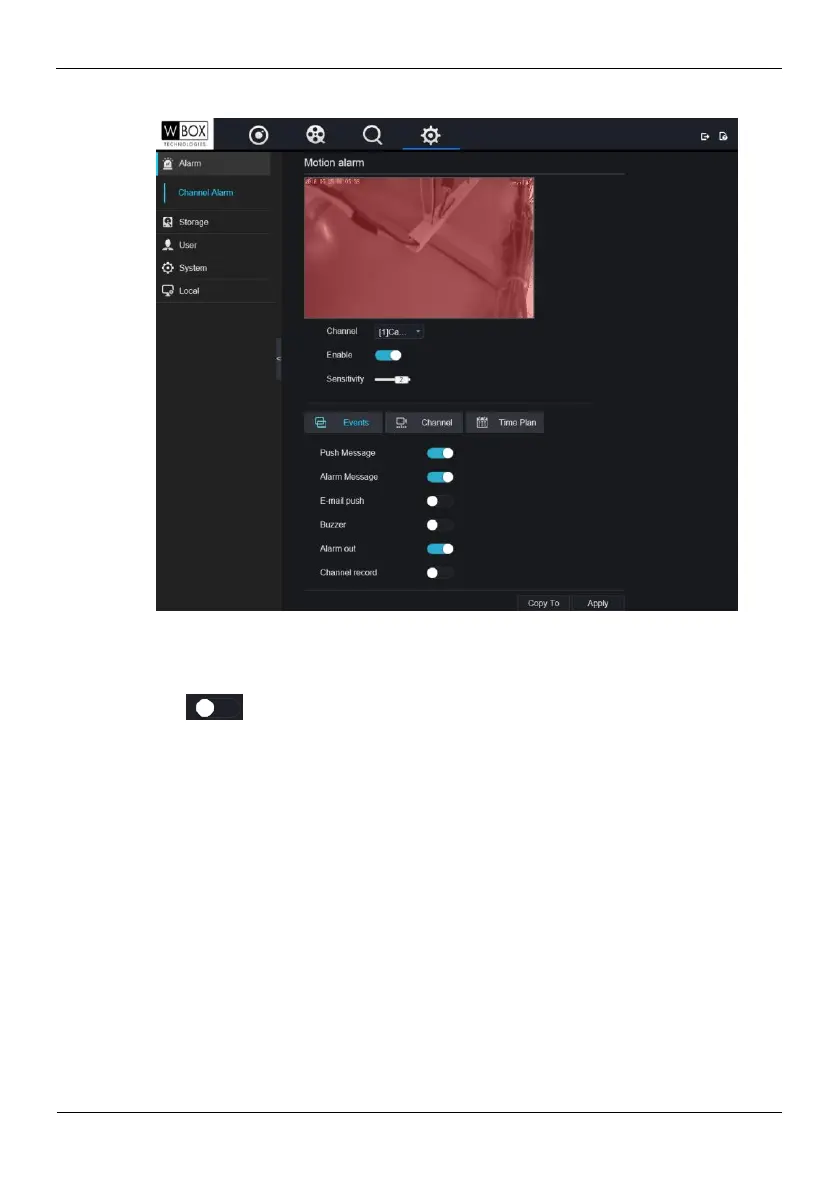

Figure 9-15 Motion Alarm interface
Step 2 Select a channel from the drop-down list.
Step 3 Click to enable channel alarm . It is disabled by default.
Step 4 Drag the slider to set the sensitivity.
Step 5 Set the alarm events.
1. Click Event in channel alarm interface.
2. Click the button of alarm events to enable or disable the events. The alarm events
include push message, alarm message, E-mail push, buzzer, alarm out and channel
record.
3. Click Apply to save the setting or Click Copy to and select one or more channels to
copy the settings to the selected channels.
Step 6 Set linkage channel.
1. Click Channel in channel alarm interface.
2. Select one or more channels to set the linkage with current channel.
3. Click Apply to save the setting or Click Copy to and select one or more channels to
copy the settings to the selected channels.
