Cool Top 7
7 Installation
Find the right place in the drivers cabin where the display will fit.
ATTENTION
Wrong chosen location for cut-out
Result: Damage of wiring and or components behind
the panel.
X Check space behind panel before making the
cut-out.

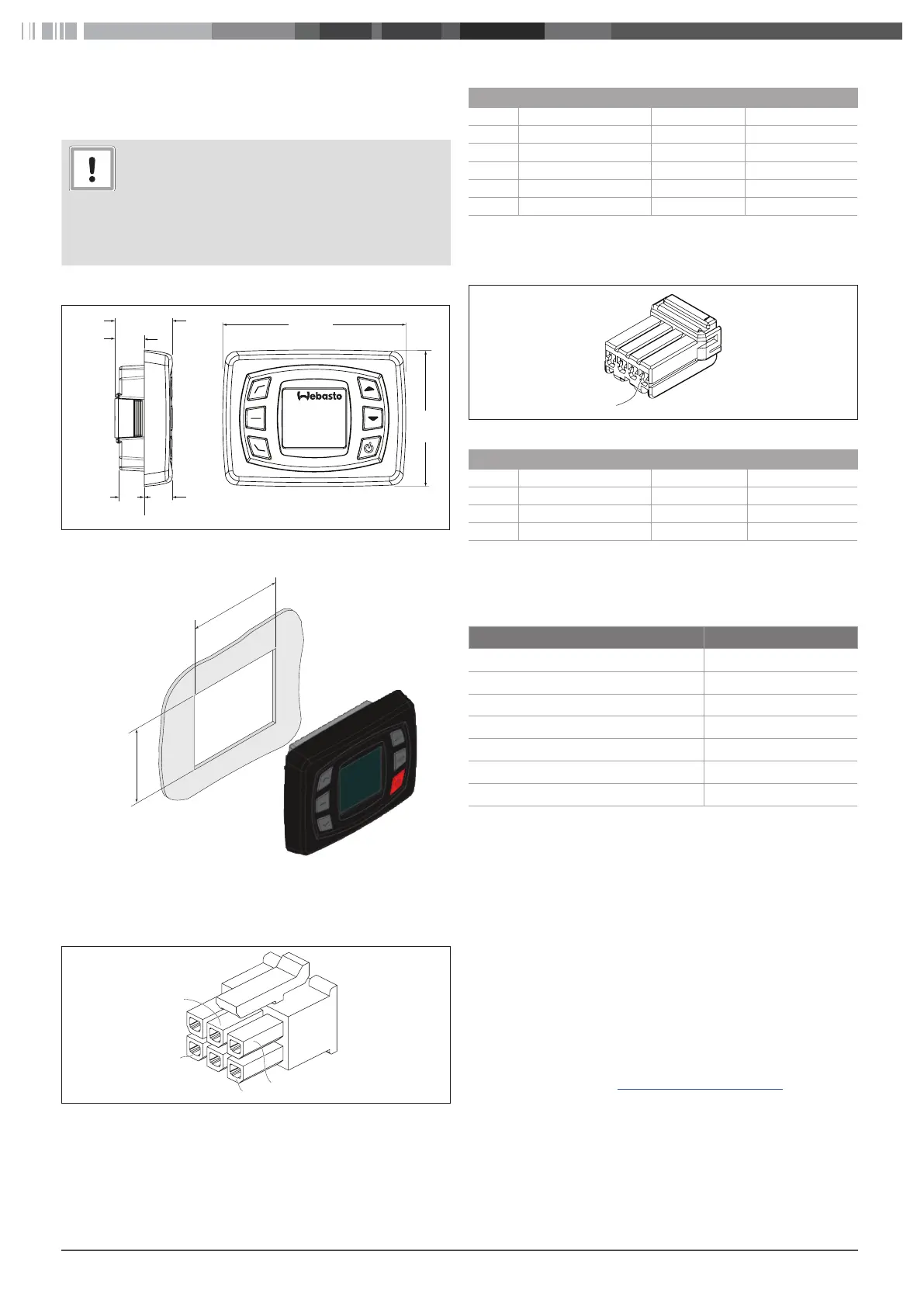

7.1 Display dimensions
Fig. 02:
22,4 mm
9,9 mm 10,7 mm
(0,88 in)
11,7 mm
(0,46 in)
(0,38 in)
(0,42 in)
72,4mm
(2,12 in)
54mm
(2,85 in)
Display dimension
3
Location for control panel has been checked
Fig. 03:
53 mm
42,2 mm
Panel cut-out
X
Make a cut-out of 53 mm wide and 42,2 mm high.
7.2 Display connector
Fig. 04:
1
3
5
6
6 pin connector
Pin Remark Wire number Wire colour
1 CAN H 13 Yellow
2 --
3 CAN L 12 Green
4 --
5 GND B-17 Black
6 +12VDC / +24VDC 027 Red
Tbl. 03: 6 pin connector, pin assignment
7.3 Complementary connecting harness
Fig. 05:
4 pin connector
Pin Remark Wire number Wire colour
1 CAN H 13 Yellow
2 CAN L 12 Green
3 GND B-17 Black
4 +12VDC / +24VDC 027 Red
Tbl. 04: 4 pin connector, pin assignment
8 Technical data
Description Value
Operating voltage range [V] 12-24
Current consumption [mA] 50
Output short circuit protection Protected
Polarity reverse protection Protected
Operating temperature range [°C] -40 to +80
Temperature sensor NTC 10 kΩ @ 25°C
Protection IEC-60529 (front panel) IP54
9 Technical support and
customer service
Do you have any technical questions or problem with the device?
National phone numbers of our representatives are provided on
the following website: www.webasto.com.
9.1 CE-Declaration of Conformity
Webasto hereby declares that the control element conforms
UNECE Regulation No. 10
The complete text of the CE-declaration of conformity is available
on the download area of https://dealers.webasto.com
10 Disposal
When you eventually decommission the system, please dispose of
the individual components properly at a recycling centre
