Marine heating system Installation Instructions
26 © Webasto Global Comfort Solutions
®

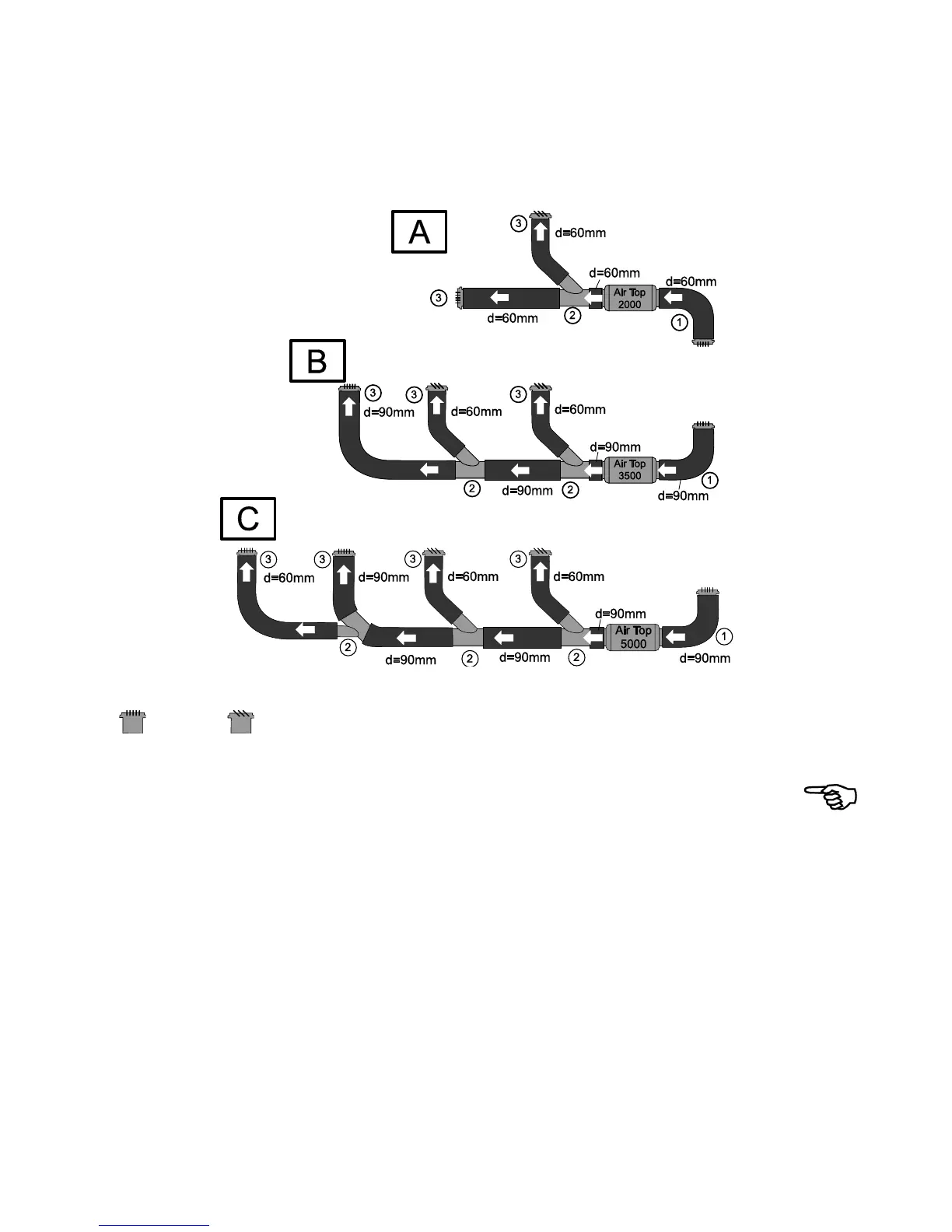

9.4.5 Air circulation example
A): Air Top 2000ST
®
Marine in 9 m sailing boat:
B): Air Top 3500
®
Marine in 11 m sailing boat:
C): Air Top 5000
®
Marine in 13 m sailing boat:
Legend:
open open and/or closable
Heater intake; Y-branch or T-piece; Outlet
With the Air Top 5000
®
do not reduce the main line diameter from 90 to 80 mm. If continuous
use of 90 mm is not possible, it is better to use a Y-piece 90/80/80 and produce two 80 mm main
strings.
