Marine heating system Installation Instructions
© Webasto Global Comfort Solutions
®
7

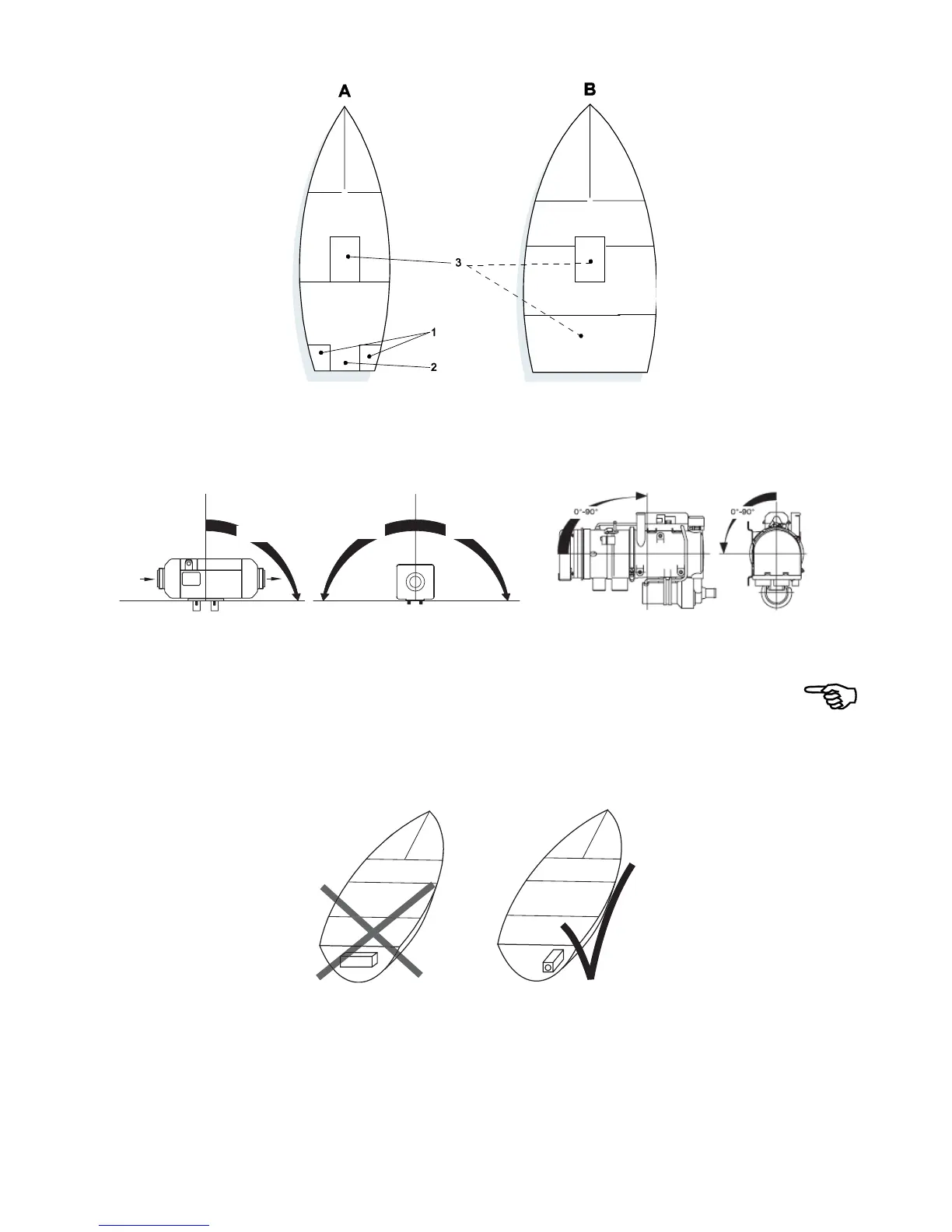

Heating system installation in lockers (1), control cabinets (2) or engine compartment (3).
4.2 Equipment orientation
Permissible installation locations: see device-specific installation instructions.
0-90˚
0-90˚
0-90˚
Examples of permissible installation locations for Air Top
®
air heating system and Thermo 90 ST
®
water
heating system
• Installation locations: consider possible ship inclination.
• Recommended installation location: exhaust outlet downwards, heater parallel to ship’s
longitudinal axis.
• Do not install transversely in sailing boats.
Exception: if heater operation is only when moored or in motorboats then installation
transverse to the longitudinal axis is also permissible.
Install heater system along the longitudinal axis in sailing boats.
