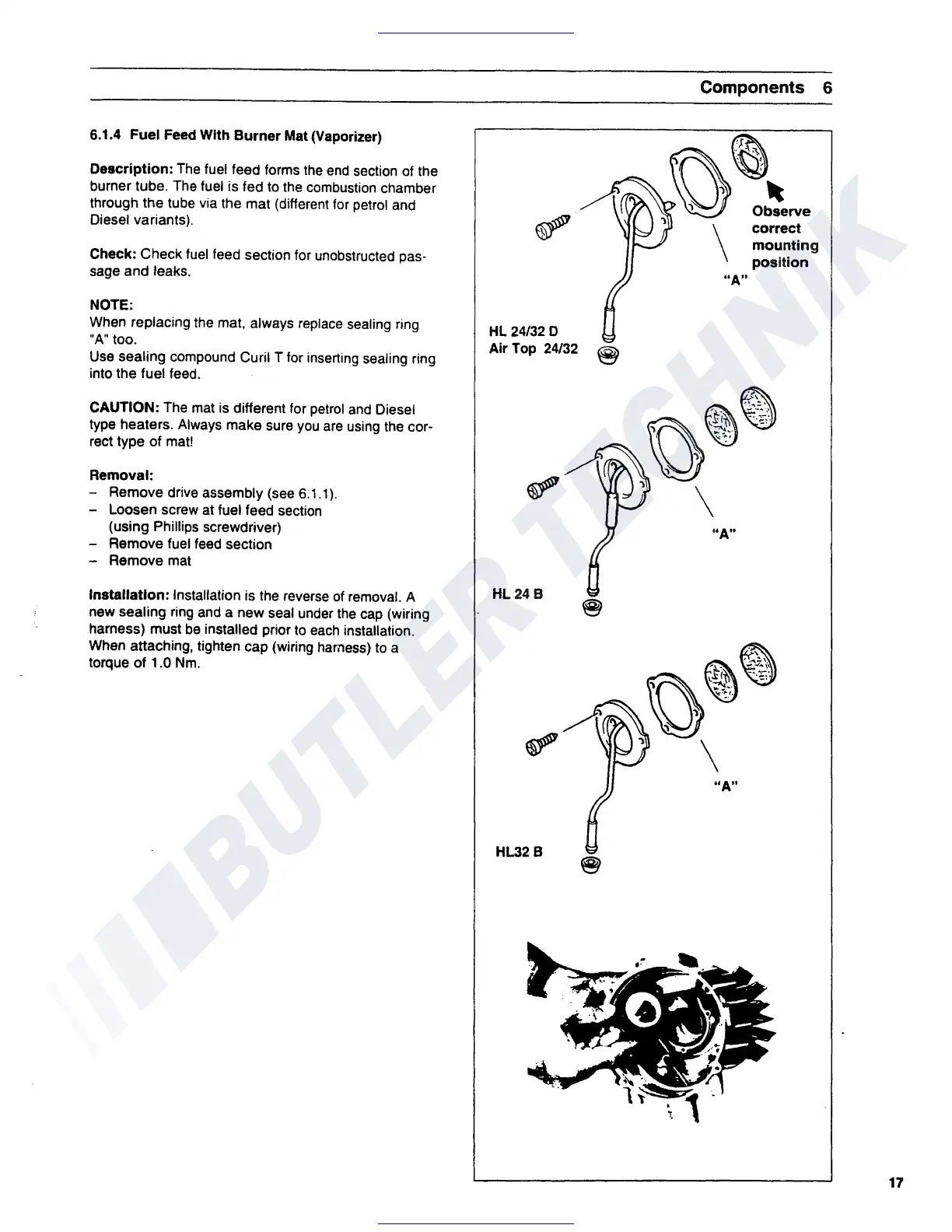

6.1.4 Fuel Feed With Burner Mat (Vaporizer)
Description: The fuel feed forms the
end
section of the
burner tube. The fuel is fed to the combustion chamber
through the tube via the mat (different for petrol and
Diesel variants).
Check: Check fuel feed section for unobstructed pas-
sage and leaks.
NOTE:
When replacing the mat, always replace sealing ring
''A"
too.
Use sealing compound Curil T for inserting sealing ring
into the fuel feed.
CAUTION: The mat is different for petrol
and
Diesel
type heaters. Always make sure you are using the cor-
rect type
of
mat!
Removal:
- Remove drive assembly (see
6:
1.1
).
- Loosen screw at fuel feed section
(using Phillips screwdriver)
- Remove fuel feed section
- Remove mat
Installation: Installation is the reverse
of
removal. A
new sealing ring and a new seal under the cap (wiring
harness) must be installed prior to each installation.
When attaching, tighten cap (wiring harness) to a
torque of 1.0
Nm.
HL 24/32 D
Air Top 24/32
@)
HL24B
HL32B
Components 6
"A"
:\o~,
~
"I
:\
\
"A"
17
