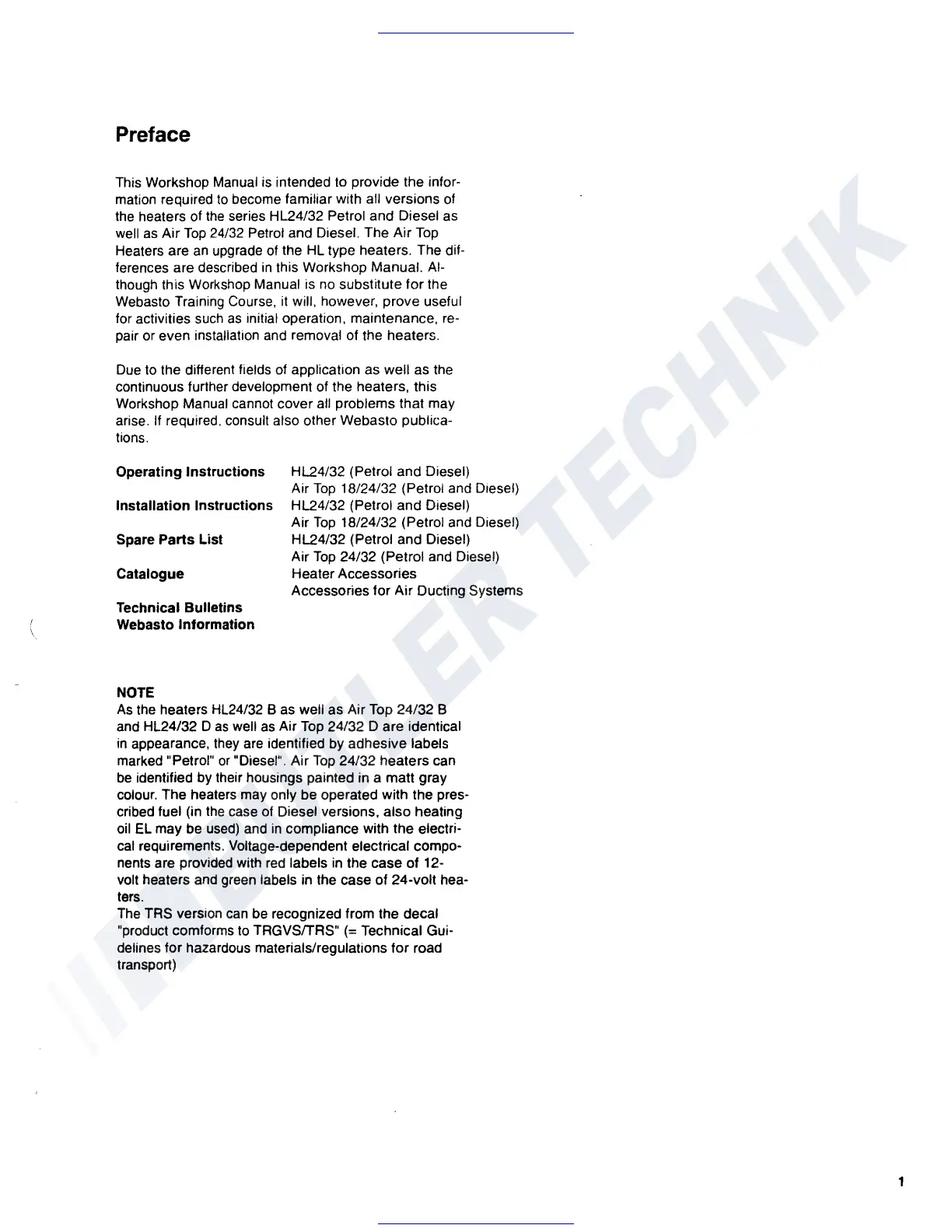

Preface
This Workshop Manual is intended to provide the infor-
mation required
to
become familiar with all versions
of
the heaters of
the
series HL24/32 Petrol and Diesel as
well
as
Air
Top
24/32 Petrol and Diesel. The Air
Top
Heaters are
an
upgrade
of
the
HL
type heaters. The dif-
ferences are described
in
this Workshop Manual. Al-
though this Workshop Manual is
no
substitute for the
Webasto Training Course.
it
will. however, prove useful
for activities
such
as
initial operation. maintenance.
re-
pair or even installation and removal of the heaters.
Due
to
the different fields of application as well as the
continuous further development of the heaters, this
Workshop Manual cannot cover all problems that may
arise.
If
required. consult also other Webasto publica-
tions.
Operating Instructions HL24/32 (Petrol and Diesel)
Air
Top
18/24/32 (Petrol and Diesel)
Installation Instructions HL24/32 (Petrol and Diesel)
Air
Top
18/24/32 (Petrol and Diesel)
Spare Parts List HL24/32 (Petrol and Diesel)
Air
Top
24/32 (Petrol and Diesel)
Catalogue Heater Accessories
Accessories for Air Ducting Systems
Technical Bulletins
Webasto Information
NOTE
As
the heaters HL24/32 B as well as Air Top 24/32 B
and HL24/32 D
as
well
as
Air
Top
24/32 D are identical
in
appearance, they
are
identified by adhesive labels
marked "Petrol"
or
"Diesel". Air
Top
24/32 heaters can
be
identified by their housings painted in a matt gray
colour. The heaters may only be operated with the pres-
cribed fuel (in
the
case of Diesel versions, also heating
oil
EL
may be
used)
and
in
compliance with the electri-
cal requirements. Voltage-dependent electrical compo-
nents are provided with
red
labels
in
the case of 12-
volt heaters and green labels
in
the case of 24-volt hea-
ters.
The TRS version
can
be recognized from the decal
"product comforms
to
TRGVSfrRS"
(=
Technical Gui-
delines for hazardous materials/regulations for road
transport)
