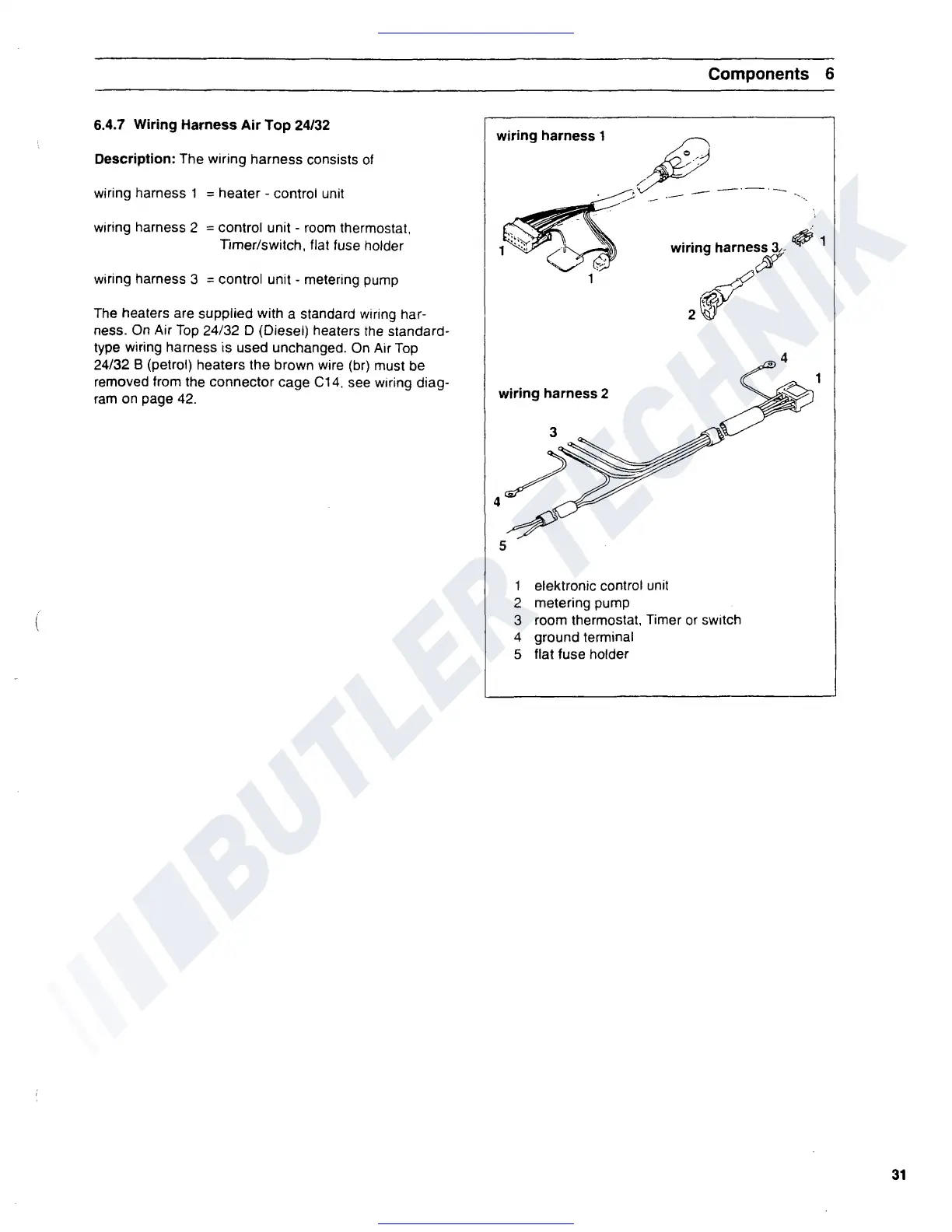

6.4.7 Wiring Harness Air Top 24/32
Description:
The wiring harness consists
of
wiring harness 1 = heater - control unit
wiring harness 2 = control unit -
room
thermostat,
nmer/switch, flat fuse holder
wiring harness 3 = control unit - metering pump
The
heaters are supplied with a standard wiring har-
ness.
On
Air
Top
24/32 D (Diesel) heaters
the
standard-
type wiring harness is used unchanged.
On
Air
Top
24/32 B (petrol) heaters the brown wire (br) must be
removed from the connector cage
C14,
see
wiring diag-
ram
on
page
42.
wiring harness 1
wiring
harness
2
5
1 elektronic control
unit
2 metering pump
Components 6
wiring
harness
3,.
~
1
2~'5§'
3 room thermostat, Timer
or
switch
4 ground terminal
5 flat fuse holder
31
