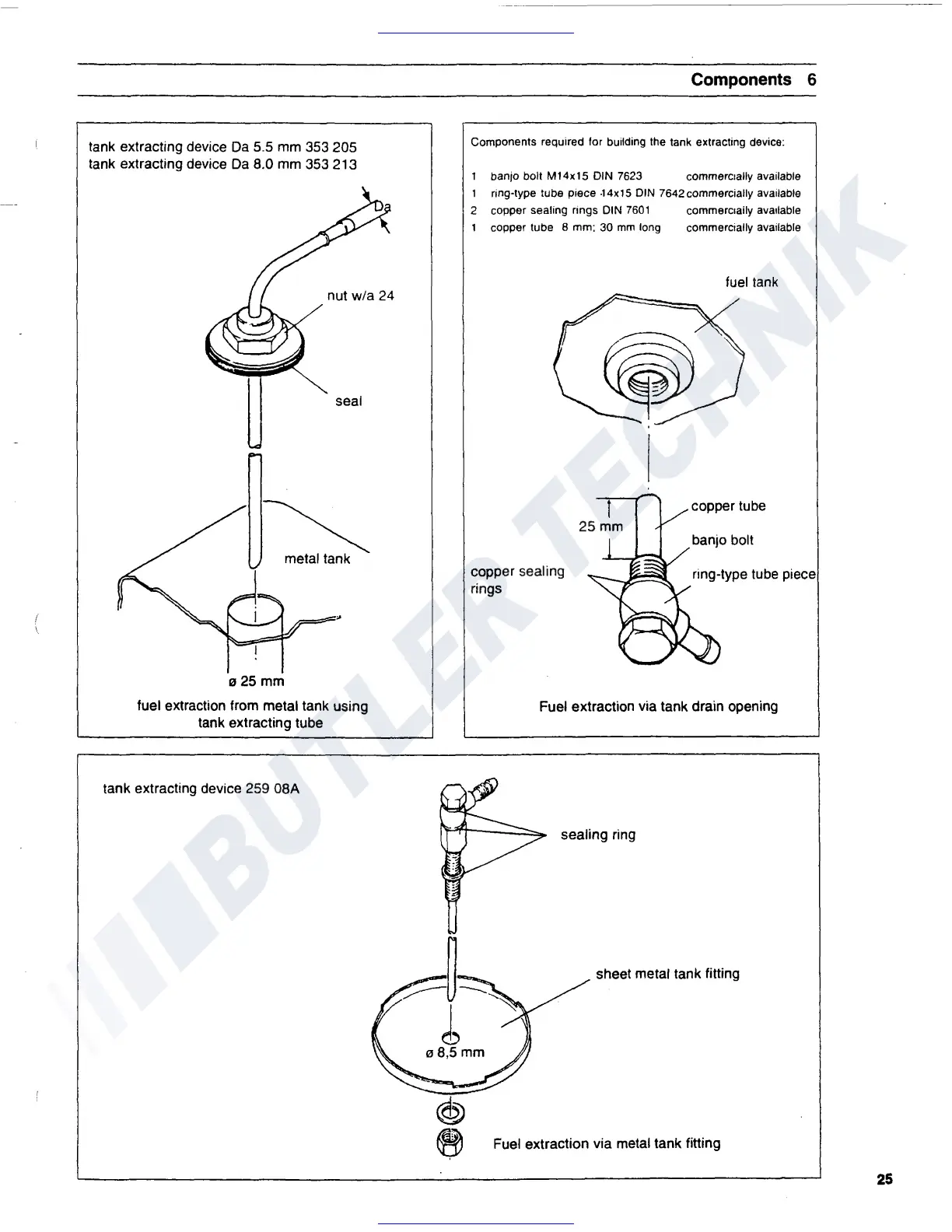

tank extracting device Da 5.5 mm 353 205
tank extracting device Da 8.0 mm 353 213
nut w/a 24
seal
~
metal tank
0 25 mm
fuel extraction from metal tank using
tank extracting tube
tank extracting device 259
OBA
@)
Components 6
Components required for building the tank extracting device:
1 banjo bolt M14x15 DIN 7623 commercially available
1 ring-type tube piece
-14x15 DIN 7642commercially available
2 copper sealing rings
DIN 7601 commercially available
1
copper tube 8 mm: 30 mm long
copper sealing
rings
commercially available
fuel tank
ring-type tube piece
Fuel extraction via
tank drain opening
sealing ring
sheet metal tank fitting
e Fuel extraction via metal tank fitting
25
