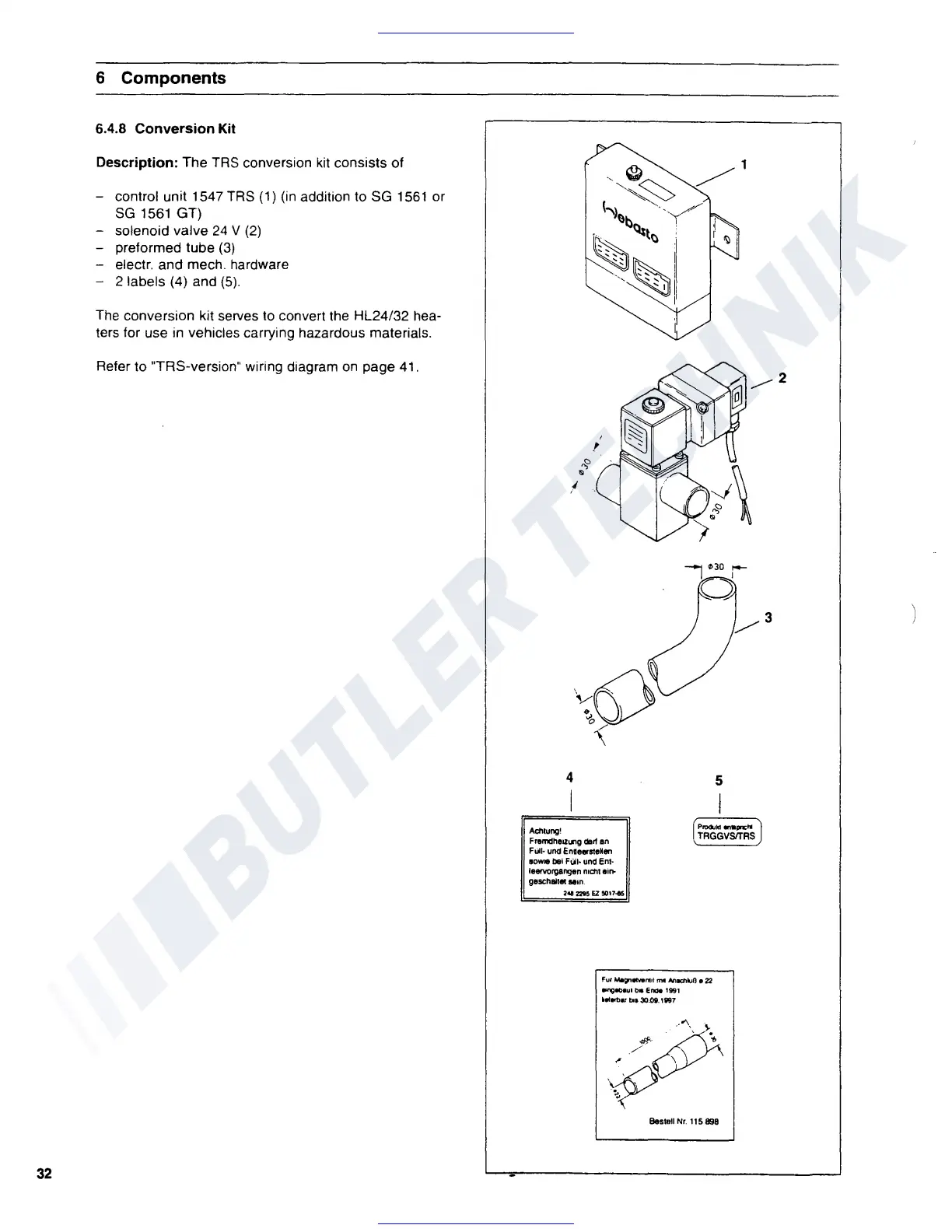

6 Components
6.4.8 Conversion Kit
Description: The TRS conversion kit consists of
- control unit 1547 TRS (1) (in addition to SG 1561 or
SG 1561 GT)
- solenoid valve
24 V (2)
- preformed tube (3)
- electr. and mech. hardware
- 2 labels (4) and
(5).
The conversion kit serves to convert the HL24/32 hea-
ters for use in vehicles carrying hazardous materials.
Refer to "TRS-version" wiring diagram
on page 41.
4
I
Acnlung!
FrerndheJZung r:ta~ an
Full• una Ena-1110Nen
- Dai ful~ und En~
•-rvangen nld11 ein-
g- eetn.
Hl221tSEZ!ll17-16
5
PraGJkl _,ai:n:hl
TRGGVS'TRS
Fu, MI01"1tllven11t ffllll Anld'l~B e 22
-"QIOIUI b ■ Ende 1991
•tiflfbar bll 30.09, 1997
lletllell Nr. 115 898
