Roof-Mounted Air Conditioner KK2000 E
Axial blower
The axial blower (4) consists of a direct current motor and fan wheel.
Once the air conditioner is switched on, it will constantly be run with board voltage and
supply the condenser with the required external air.
Radial blower
The radial blower (5) contains a multi-stage DC motor that can be run at three different
speeds. It vacuums the cabin air through the vaporizer and blows it through the nozzles
in the air manifold plate back into the cabin.
Compressor
The compressor (figure 2.5) consists of the swash plate compressor and the magnetic
coupling with fan belt washer. It is switched on and off as needed with the magnetic
coupling when the air conditioning system is on.

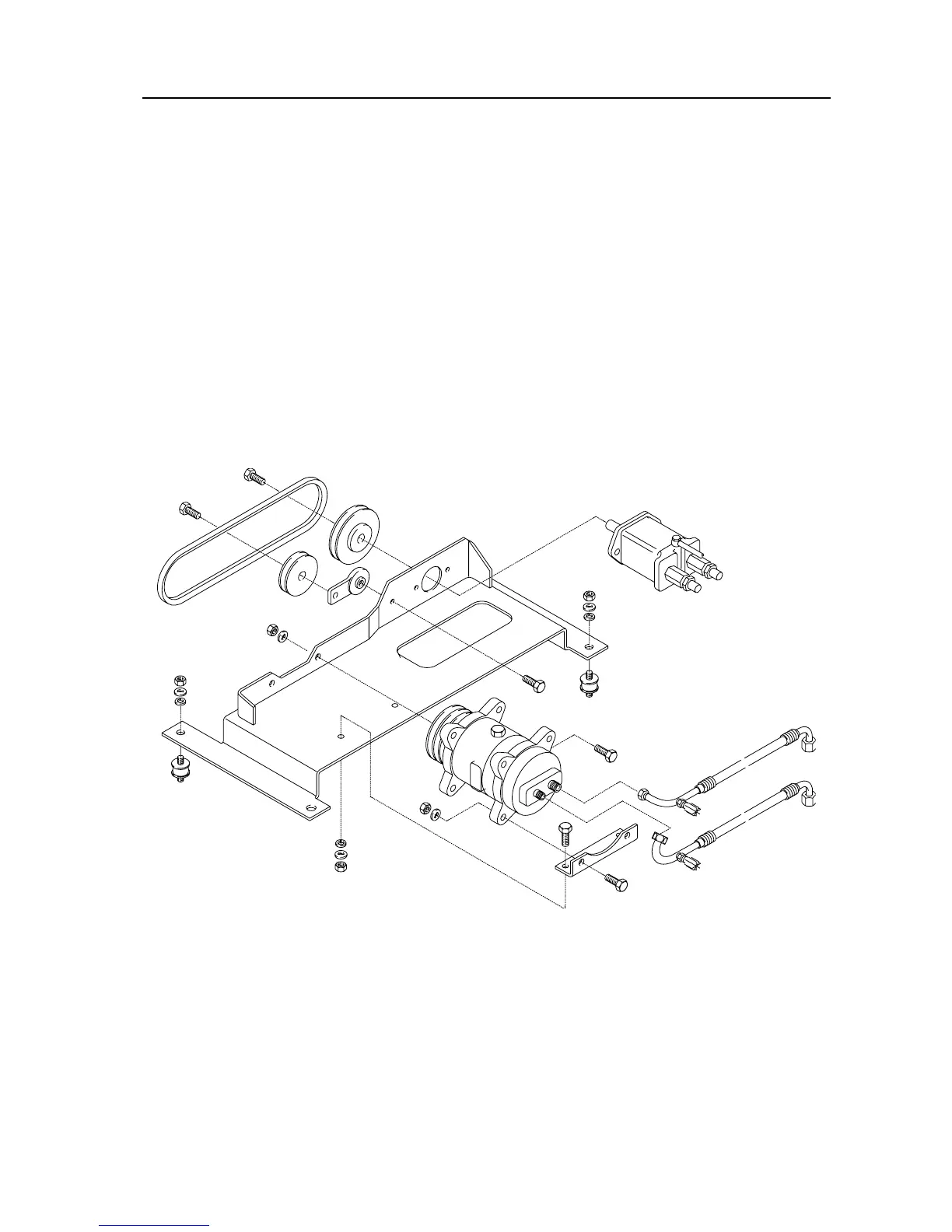

Figure 2.5.
