Webasto Thermo 90 ST Installation Instructions

Marine heating system Installation Instructions
© Webasto Global Comfort Solutions
®
7

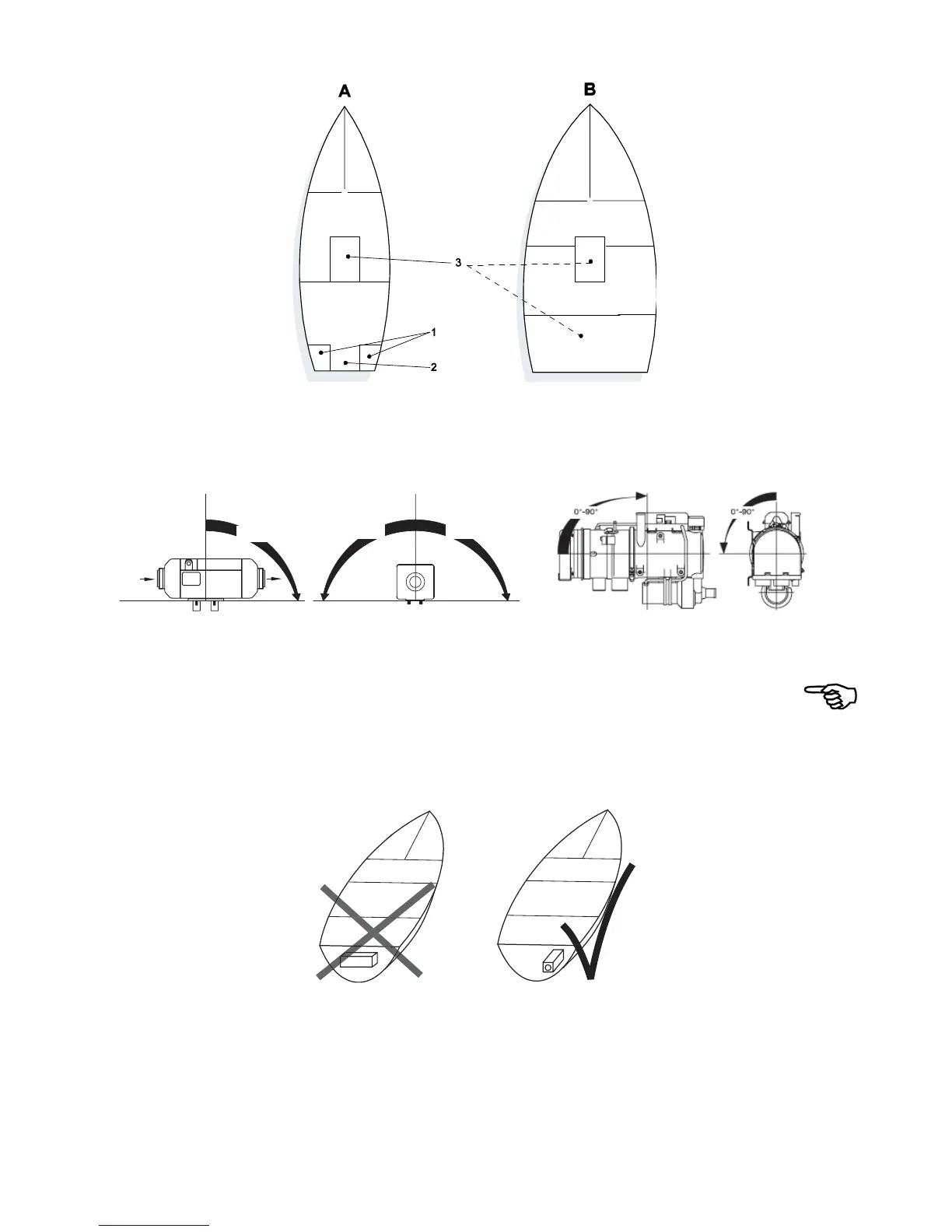

Heating system installation in lockers (1), control cabinets (2) or engine compartment (3).
4.2 Equipment orientation
Permissible installation locations: see device-specific installation instructions.
0-90˚
0-90˚
0-90˚
Examples of permissible installation locations for Air Top
®
air heating system and Thermo 90 ST
®
water
heating system
• Installation locations: consider possible ship inclination.
• Recommended installation location: exhaust outlet downwards, heater parallel to ship’s
longitudinal axis.
• Do not install transversely in sailing boats.
Exception: if heater operation is only when moored or in motorboats then installation
transverse to the longitudinal axis is also permissible.
Install heater system along the longitudinal axis in sailing boats.

Webasto Thermo 90 ST Specifications

General

Heating Capacity	9 kW
Weight	4.8 kg
Dimensions	254 x 100 x 177 mm
Fuel	Diesel
Nominal Voltage	12V or 24V
Heating Power	9 kW
Voltage	12V or 24V
