Webasto Thermo Top E - Page 17

17
Peugeot 207
a = 640 mm
b = 530 mm

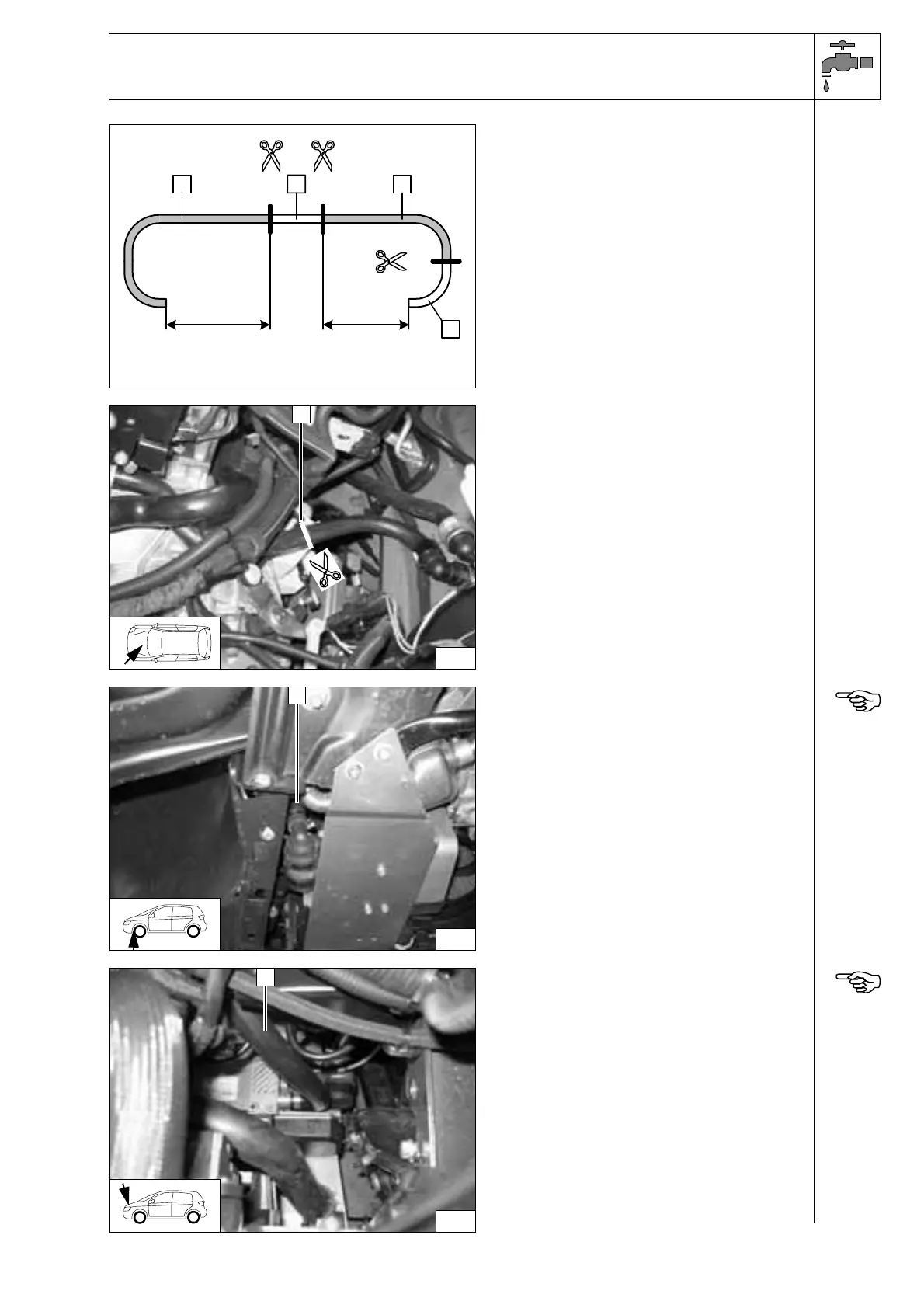

Dispose of section X
Cutting the
water hose
into
sections
1 Splitting point
Splitting
point
Assemble the water hose A with the straight
end on the heater unit inlet.
Connect-
ing to the
heater unit
Assemble the water hose B with 90° bend on
the heater unit outlet.
Connect-
ing to the
heater unit
ab
A B
X
X
1
25
26
A
27
B
