Webasto Thermo Top E - Page 20

20

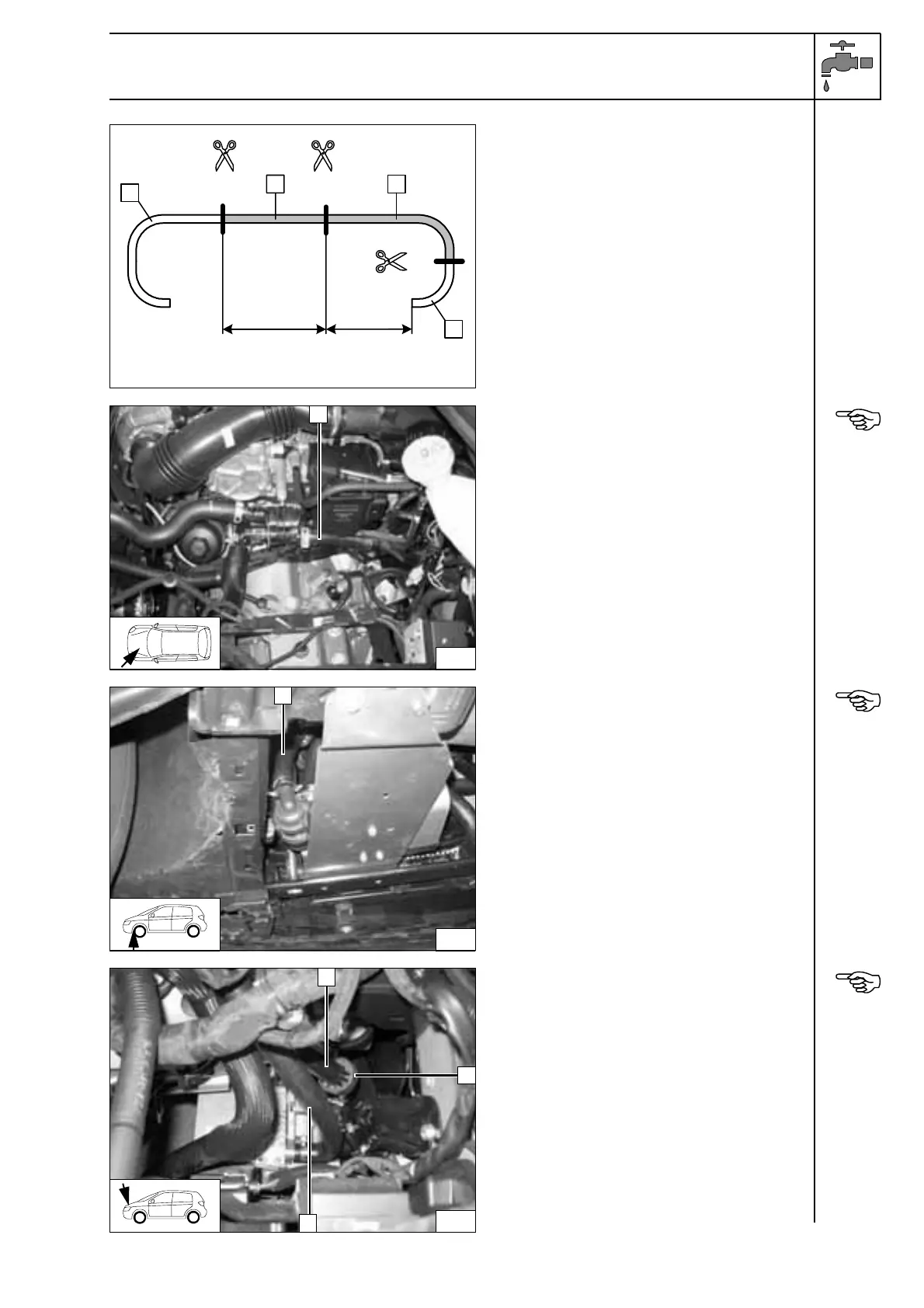

Peugeot 207
b = 480 mm
c = 390 mm
Dispose of section X
Cutting
water hose
into
sections
Pull the water hose 1 off the engine outlet.
The clamp will be used again.
Splitting
point
Assemble the water hose B with the straight
end on the heater unit inlet.
Connect-
ing to the
heater unit
Assemble the water hose C with 90° bend on
the heater unit outlet.
1 Black rubber profile
Connect-
ing to the
heater unit
cb
C
X
X
B
1
31
32
B
33
C
B
1
