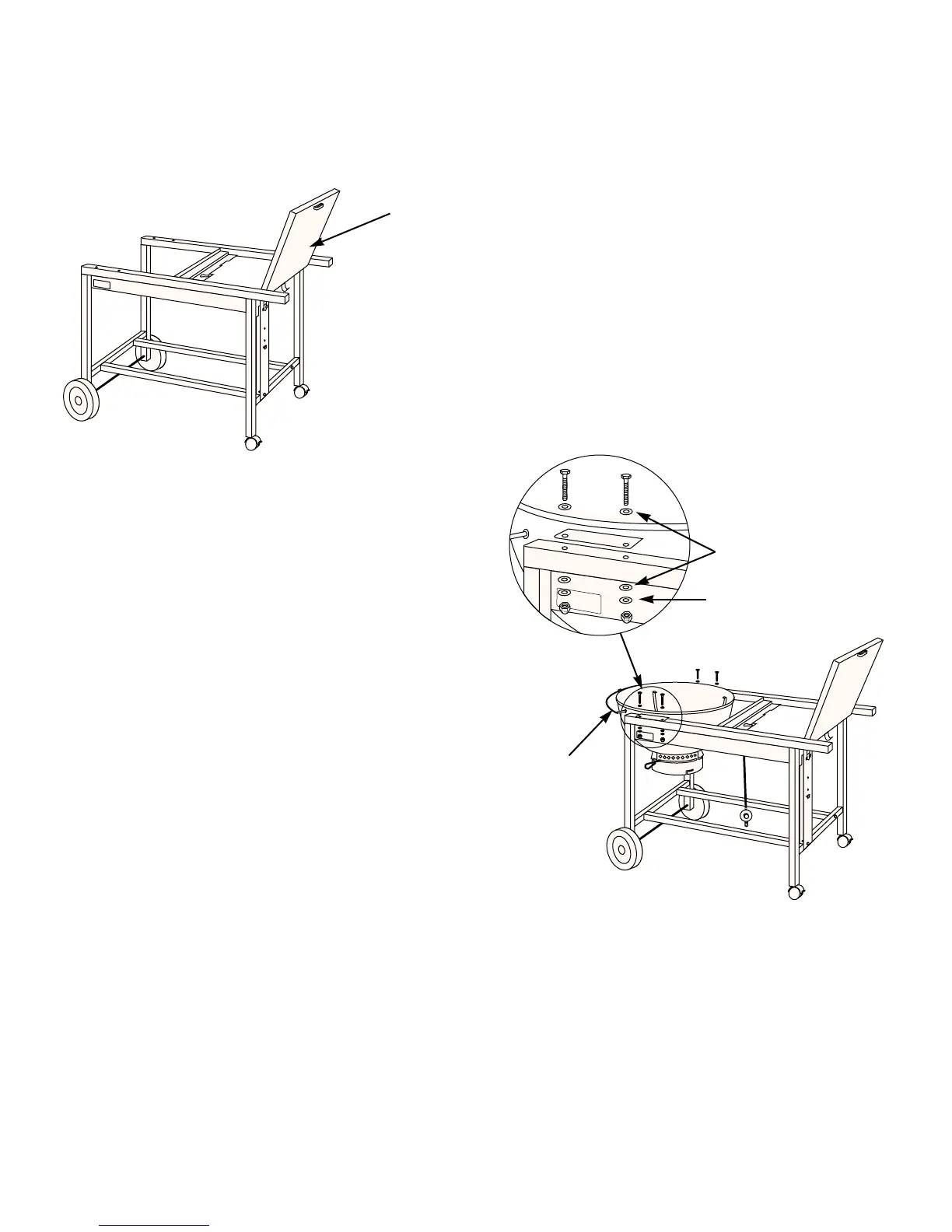

Figure 6
Step 6
Uncover CharBin lid
Remove protective plastic covering from CharBin
lid. Figure 6.
Figure 7
Step 7
Install bowl assembly
You will need: bowl assembly, four 1 3/4 inch bolts,
eight nylon washers, four aluminum washers, four acorn
nuts, 7/16 inch open-end or adjustable wrench and
pliers.
Set bowl assembly in open end of frame with lid holder
to the outside, and align mounting brackets over holes
in frame. Figure 7.
Slip a nylon washer on a bolt and insert bolt through
bowl mounting bracket and frame. Place a nylon washer
then an aluminum washer and acorn nut on end of bolt.
Figure 7.
Repeat for the other three bolts. Do not tighten until all
four bolts are correctly in place.
CAUTION: Do not overtighten the bolts.
Overtightening can fracture the porcelain.
Lid holder
Nylon washers
Aluminum washer
CharBin lid
