14

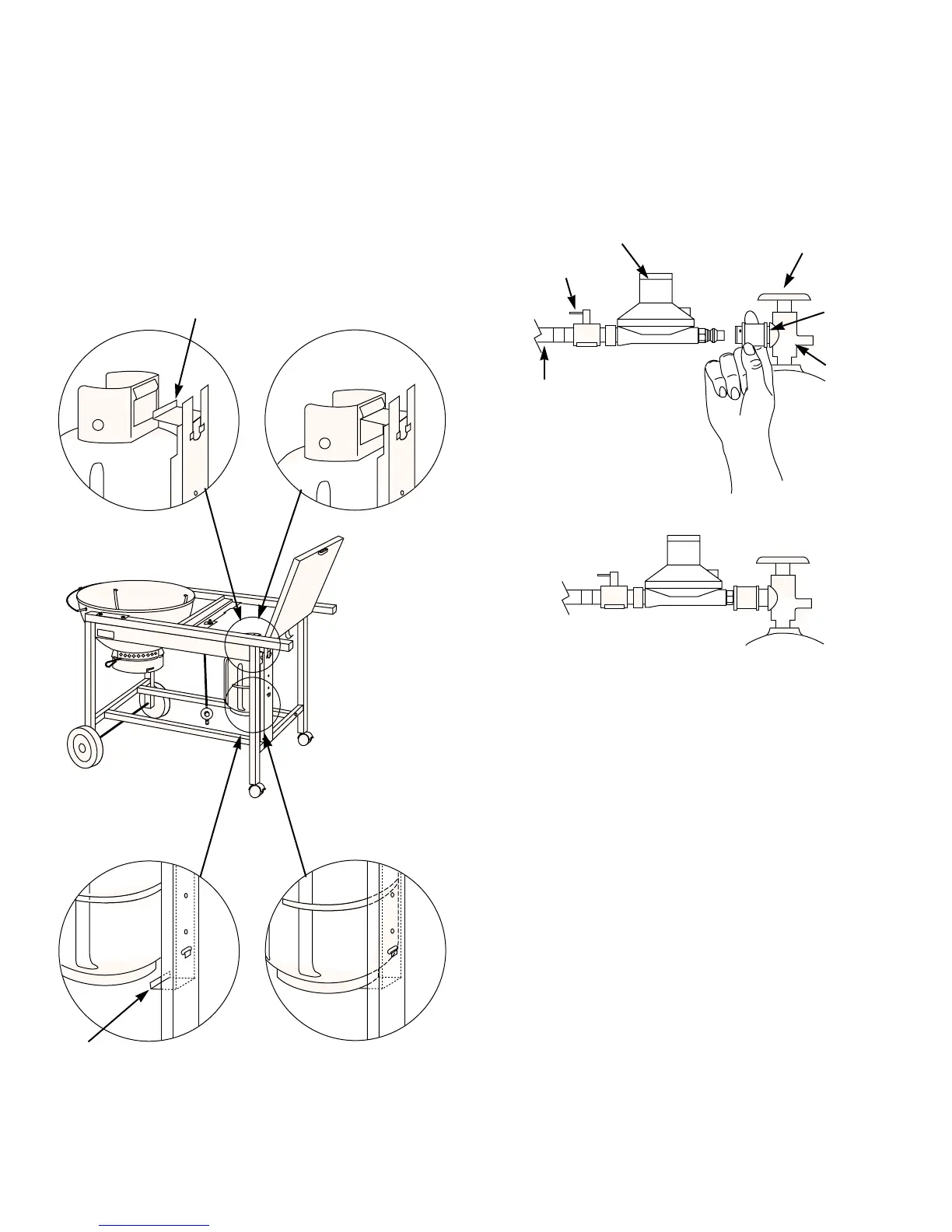

Figure 9
Figure 10
Step 10
Install and connect filled LP tank
WARNING: Make sure that the LP tank valve is
closed. Close by turning clockwise.
Hook LP tank onto tank holder assembly.
The square hole on the tank collar fits over the top lip of
the tank holder assembly. Figure 9 (a).
The bottom of the tank rests firmly on the lower lip of the
tank holder assembly. Figure 9 (b).
The hose and regulator are connected in the following
manner:
Slide back the collar of the quick disconnect on the tank
valve. Figure 10 (a). Push the male fitting of the regulator
into the quick disconnect, and maintain pressure. Slide
the collar closed. Figure 10 (b) shows the quick
disconnect engaged. Figure 10 (a) shows various
components of the tank and regulator.
(b)
Top lip of tank
holder assembly
Valve handwheel
Tank valve
Pressure
relief valve
Test valve
Regulator
Hose
Bottom lip of tank
holder assembly
(b)
(a)
(a)
