Weber Burner User Manual

17

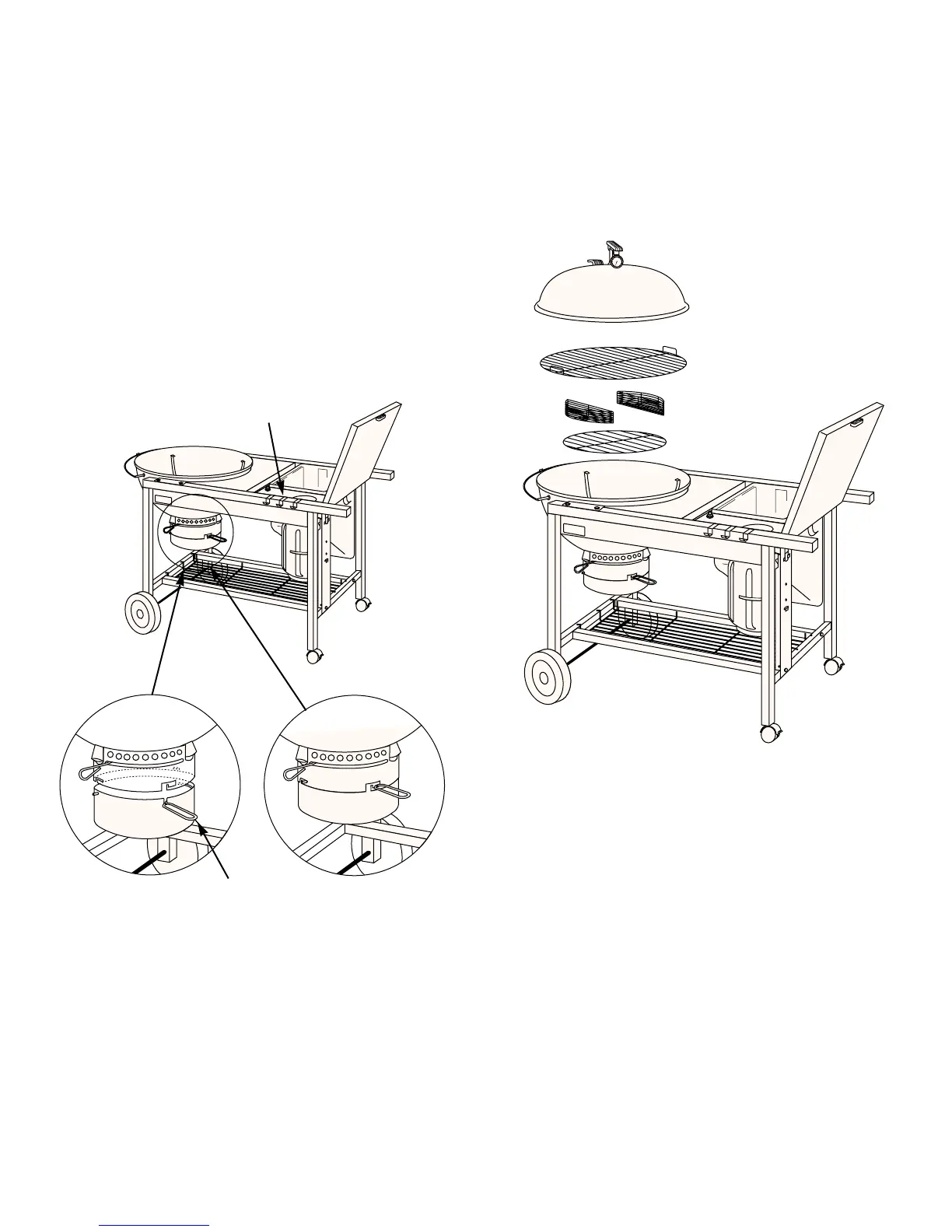

Figure 16
Step 14
Add grates, Char-Basket Fuel Holders and lid
You will need: charcoal grate, Char-Baskets, hinged
cooking grate and lid.
Place charcoal grate on bottom supports in bowl. Set
Char-Baskets on charcoal grate, cooking grate on top
supports, and lid on bowl. Figure 16.
Figure 15
Step 13
Install ash catcher, control panel & bottom rack
You will need: ash catcher, control panel and bottom
rack.
Align handle and prongs of ash catcher with their
appropriate slots on the ash catcher ring. The handle fits
into the larger slot. Figure 15 (a).
Lift ash catcher up into slots and rotate to the right. Ash
catcher will fit securely into place. Figure 15 (b).
Set control panel in place over igniter and LP tank
handwheel. Figure 15.
Slide bottom rack into position between bottom
connectors. Figure 15.
Control panel
Ash catcher handle
(a) (b)
