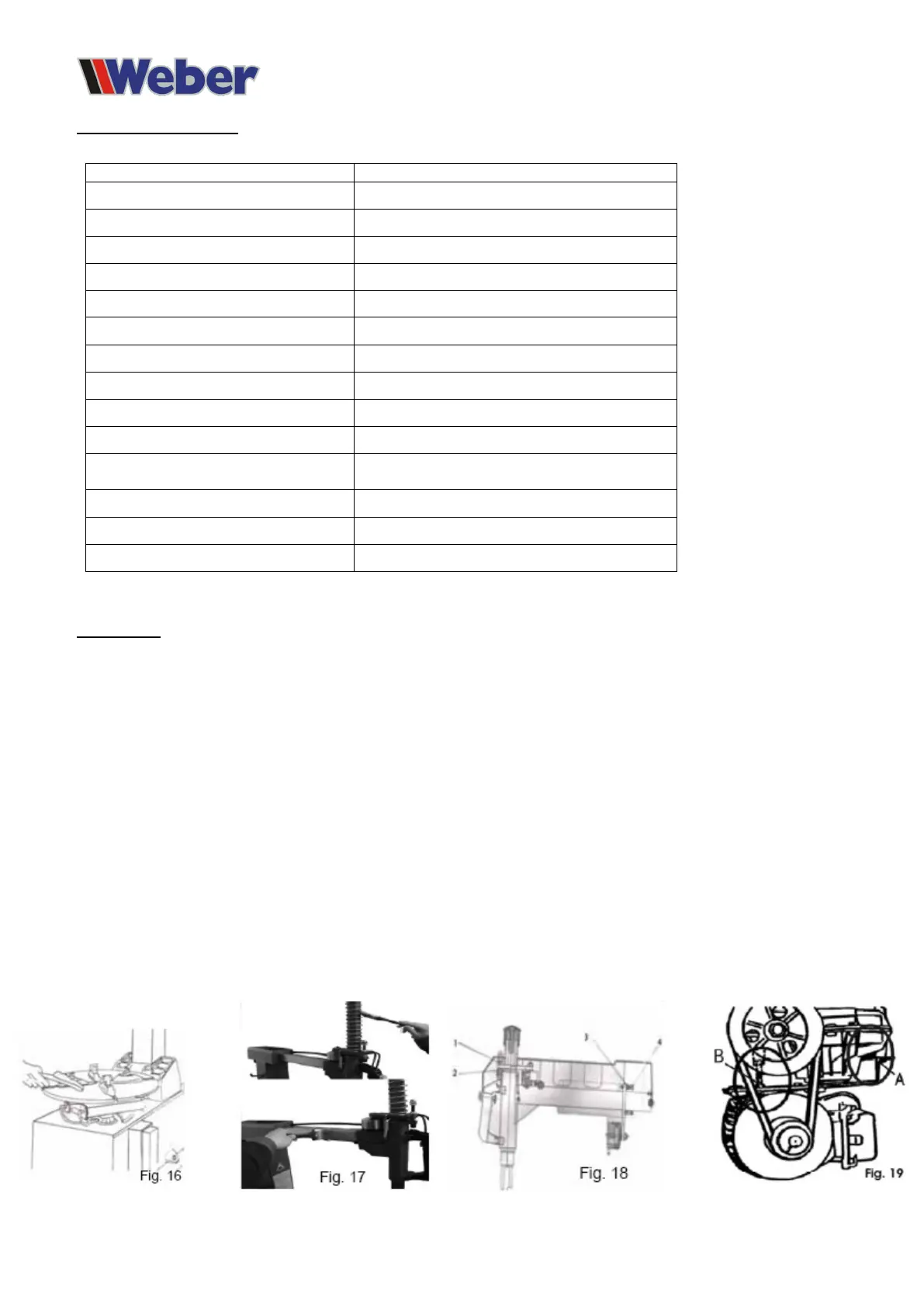

Technical Specifications
Max. wheel diameter 1200mm / 47"
Max. wheel width 450mm / 17"
Tire diameter 47" / 1200mm
Printing power 2500 kg
Working pressure 10 bar
Max. filling pressure tires 3.5 bar
Power supply, V/pH/Hz 400/3/50
Engine power 0.55 kW
Turning speed clamping
table
7-14 r.p.m. /min.
Sound level <70db
Dimensions 1250mm x 950mm x 920mm
Weight 310kg
Maintenance
To secure the machine parameters a monthly maintenance is required. The maintenance of the machine must be carried out by
technically experienced/authorized personnel. After the functional test, the tire changer must be disconnected from the power
supply (electrical and compressed air).
• Check the oil level in the maintenance unit on the maintenance frame. Use specific resin- and acid-free oil for
compressed air tools.
• Thorough cleaning of all moving parts of the mounting plate (Fig. 16). Light lubrication ensures proper functioning of the
clamping jaws.
• Check all screw and bolt connections of the tensioning mechanism including the cylinder unit and the entire machine.
• Clean and lubricate the hexagonal shaft of the mounting head and the horizontally movable arm (Fig. 17). To do this,
remove the plastic cover.
• Check the operation of the pneumatically operated clamping plates for latching horizontal and vertical movements.
Adjustment is possible on screws 1-4 (Fig. 18).
• Check the V-belt tension of the drive and adjust it if necessary by adjusting screw connections A and B (Fig. 19).
• Keep your work area clean and remove any dirt or loose objects in the area.
• In case of frequent use it is necessary to lubricate all moving parts on a weekly basis.
• Machine parts that are subject to wear and pose a safety risk must be replaced immediately.
Damaged parts must always be replaced with original parts.
