C-2
(1)
(2)
View from underneath
View inside of control panel

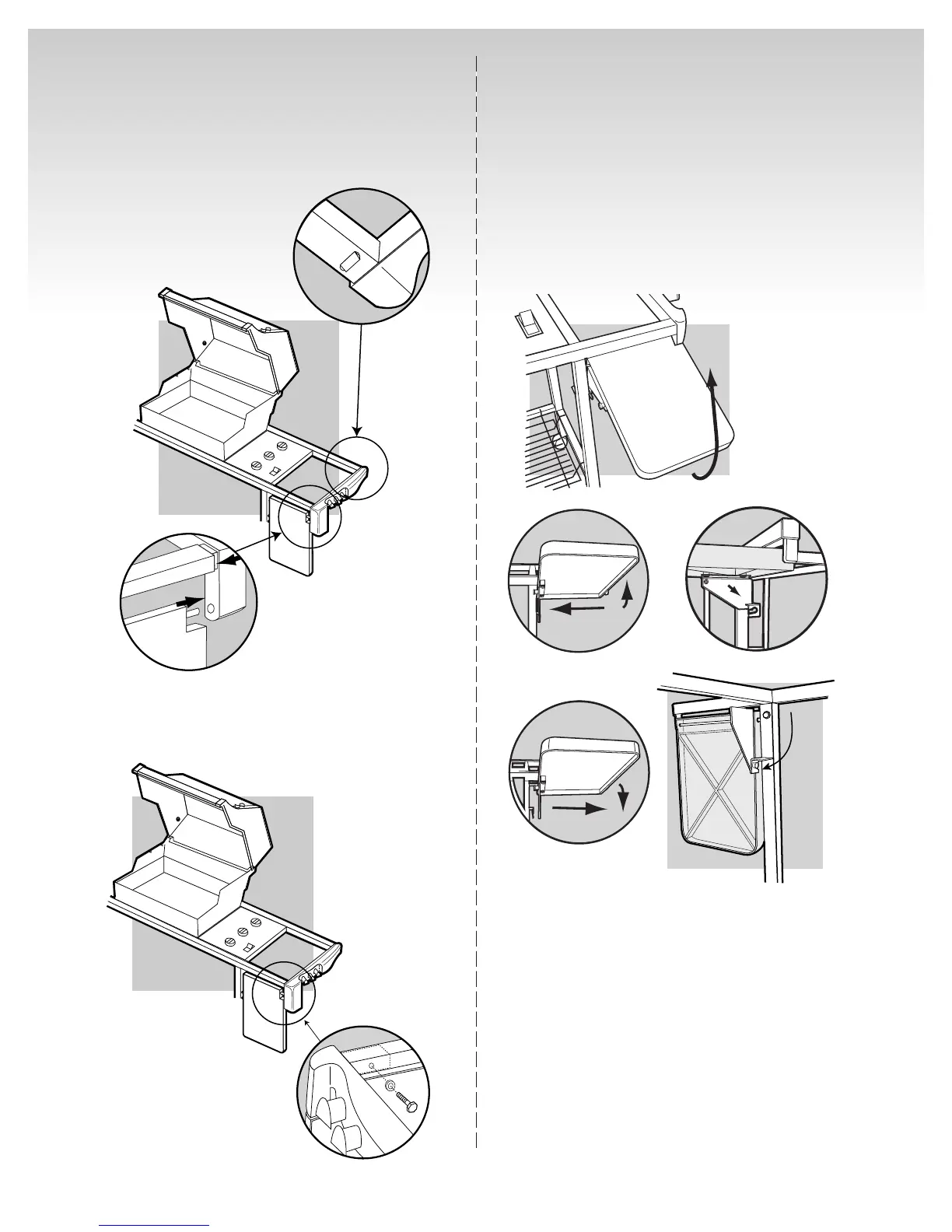

4.) While holding swing-up work surface in position,
insert the other end of the swing-up work surface
rod into the right end trim piece (1). Push the trim
piece into the frame as shown, making sure that
the tab on the back underside piece of the trim
piece is snapped into the slot in the rear frame (2).
5.) Add a washer to the bolt and insert it through the
front hole in the frame and the hole in the trim
piece. Tighten with a wrench.
To raise swing-up work surface: Lift table all the way up
and slide it to the left, then lower table until you feel it
lock in the up position.
To lower swing-up work surface: Lift table up until it
disengages and slide it to the right. Then lower it all the
way down so that the locking pin on the right side of
the table fits into the locking bracket on the leg, which
will secure the table in the down position.
Do not use the swing-up work surface as a cutting
board.
