Weco ESS 5K3-XP User Manual

WECO 5K3-XP RACK LV-EMEA
21
Version 11/11/2021
L
O
W
V
O
L
T
A
G
E

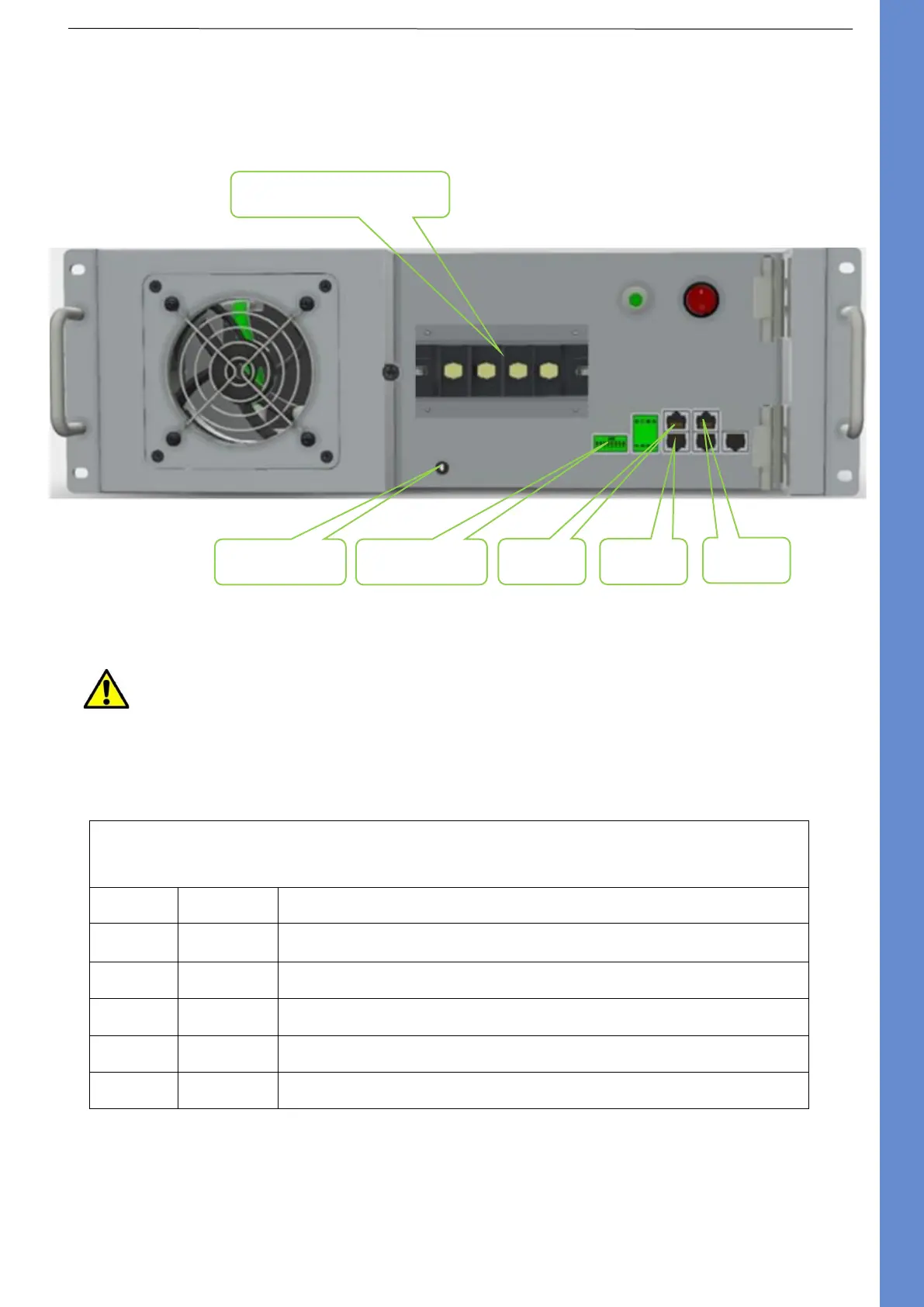

3.1 Battery Module Data Connections
CAUTION: The LV fuse is contained behind the positive fast Connector Plug
Access to the High Voltage fuse is restricted to authorized WeCo service personnel and the protection
lid cannot be opened by anyone else.
Module Definition Table
Interface
Name
Function
POWER
TERMINALS
LV POLES
+ + - -
LOW VOLTAGE POSITIVE (+ +) and NEGATIVE (- -) Screw Terminal
GND
GND
GROUND TERMINAL
RS485 A
RS485 INPUT
DATA LINE INPUT FROM MODULE ABOVE
RS 485 B
RS485 OUTPUT
DATA LINE OUTPUT TO NEXT MODULE
CAN A
CAN INPUT
CAN COMMUNICATION PORT TO INVERTER
+ + - -
TERMINAL BLOCK
GND
RS485 B
CAN A
RS485 A
DIP SWITCH
