Wecon LX Series - Or, Or Inverse; OR (OR); ORI (OR Inverse); Load Pulse, Load Trailing Pulse

To Next Page

To Previous Page

WECON Technology Co., Ltd.

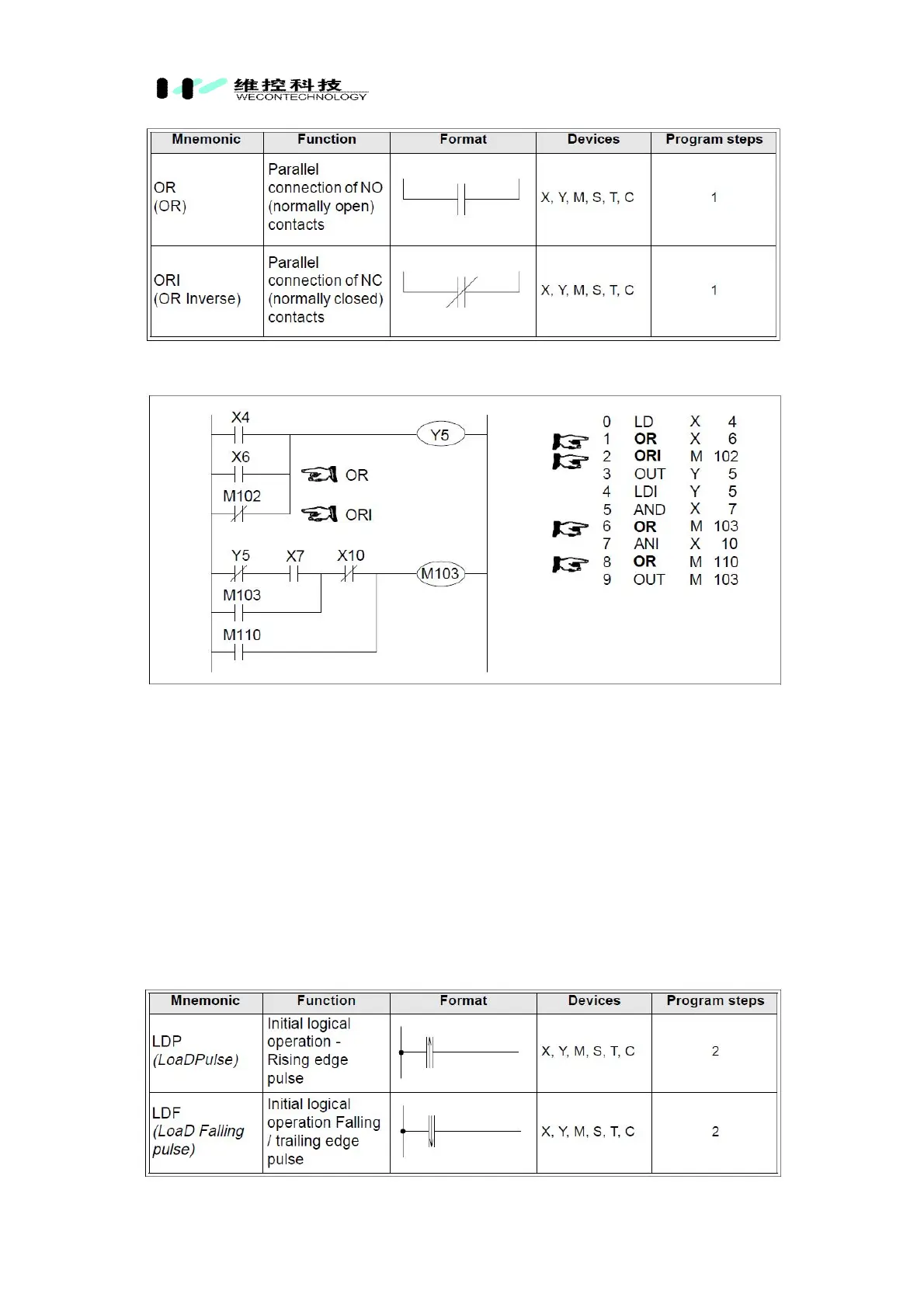

Program example:

Basic points to remember:

- Use the OR and ORI instructions for parallel connection of contacts. To connect a

block that contains more than one contact connected in series to another circuit block

in parallel, use an ORB instruction.

- Connect one side of the OR/ORI instruction to the left hand bus bar.

Peripheral limitations:

• The PLC has no limit to the number of contacts connected in series or in parallel.

However, some programming panels, screens and printers will not be able to display

or print the program if it exceeds the limit of the hardware. It is preferable for each

line or rung of ladder program to contain up to a maximum of 10 contacts and 1 coil.

Also keep number of follow-on outputs to a maximum of 24.

8. Load Pulse, Load Trailing Pulse
