- Use the ANDP and ANDF instructions for the serial connection of pulse contacts.
- Usage is the same as for AND and ANI; see earlier.
- ANP is active for one program scan after the associated device switches from OFF
to ON.
- ANF is active for one program scan after the associated device switches from ON to
OFF.

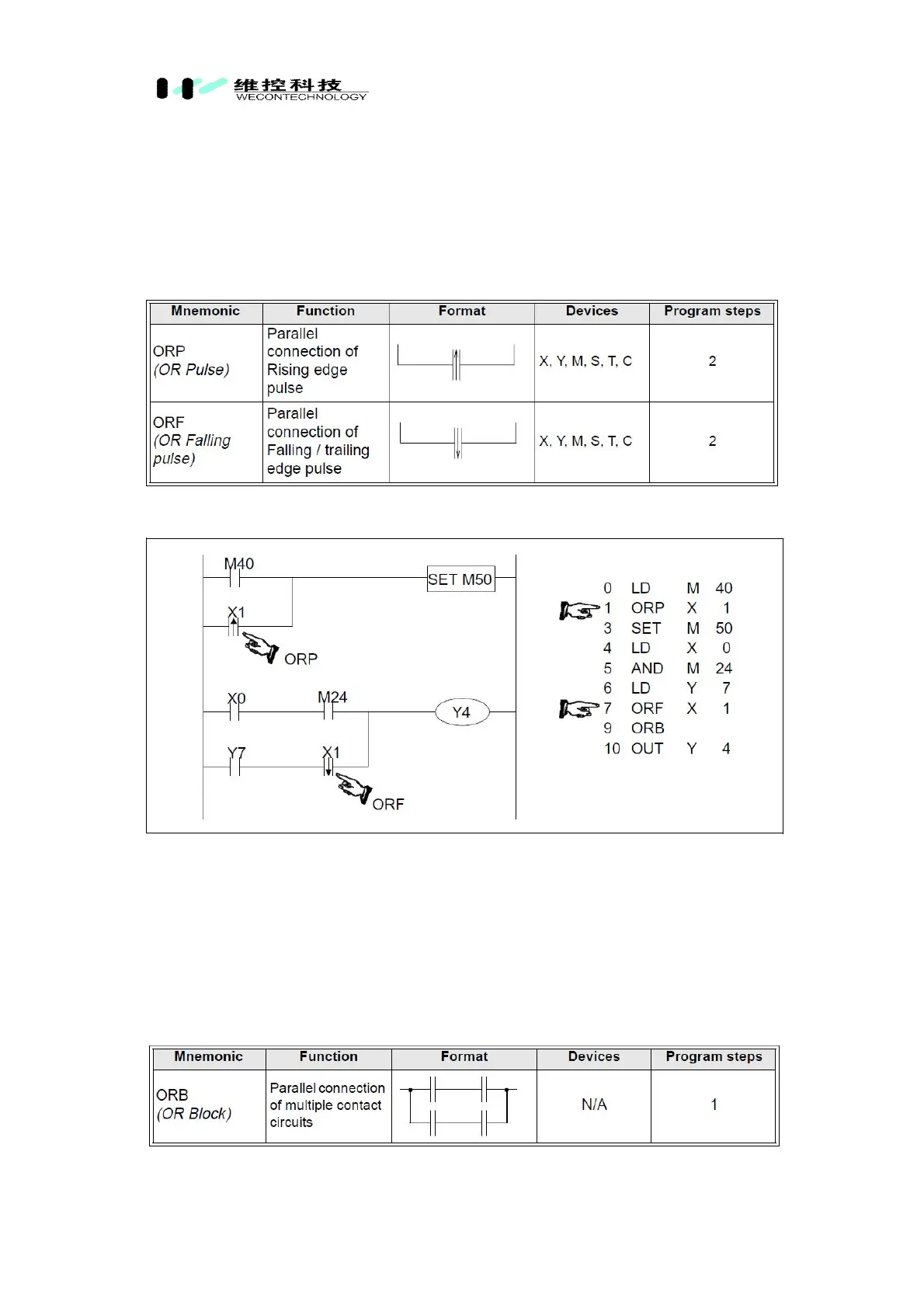

10. Or Pulse, Or Trailing Pulse
Program example:
Basic points to remember:
- Use the ORP and ORF instructions for the parallel connection of pulse contacts.
- Usage is the same as for OR and ORI; see earlier.
- ORP is active for one program scan after the associated device switches from OFF
to ON.
- ORF is active for one program scan after the associated device switches from ON to
OFF.
2.11 Or Block
Program example:
