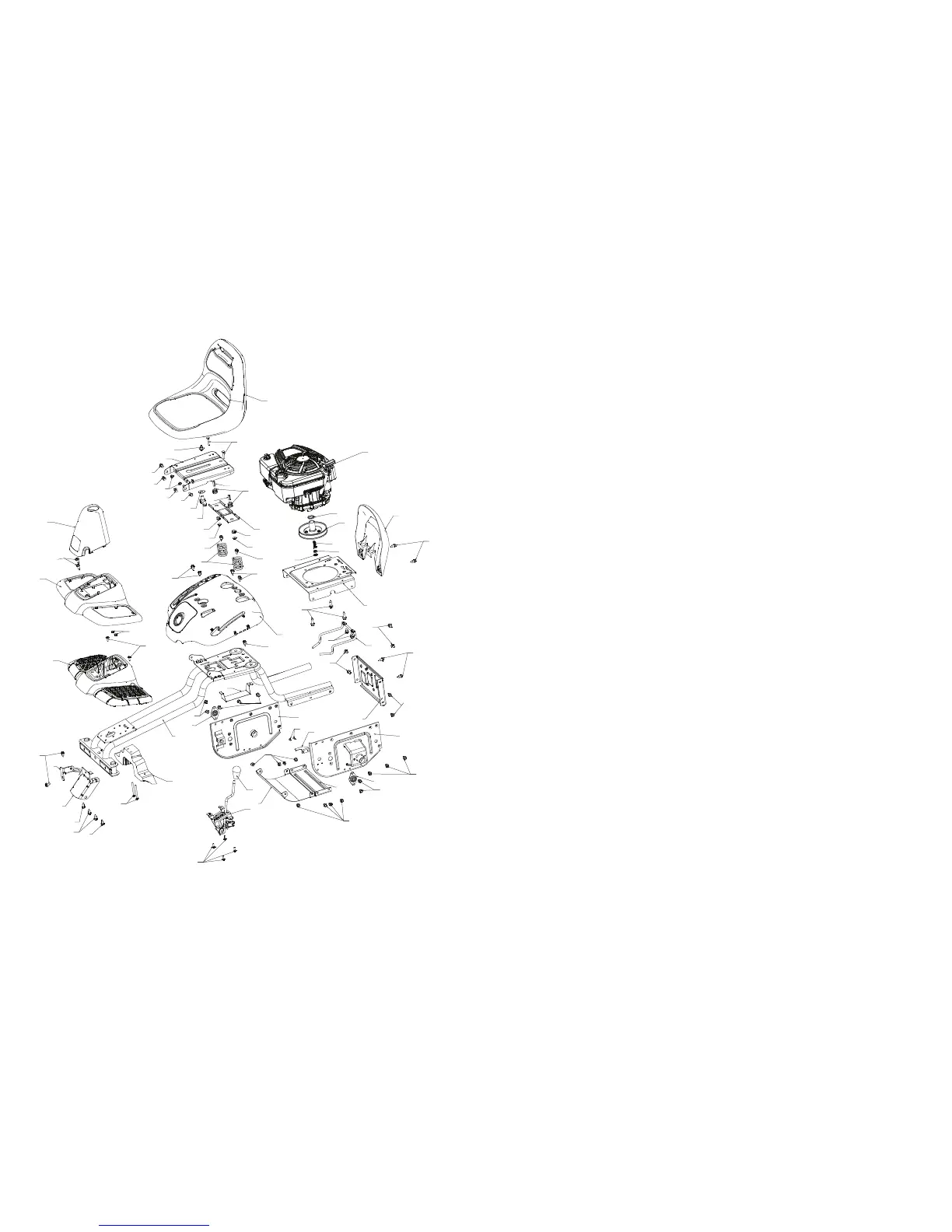

CORTADORA DE CÉSPED MODELO NO. WE261 (96022001101)
CHASIS
PRODUCTO NO. 960 22 00-11
11
1 532 43 65-00 WHEEL ASM (FRONT)
2 812 00 00-01 E-CLIP
3 532 18 89-67 WASHER, HARDENED
4 532 12 17-49 WASHER, 1/4 X 3/4
5 532 43 53-24 SPINDLE, RH
6 532 12 49-31 WASHER, HARDENED THRUST
7 532 12 49-37 BUSHING, STEERING COLUMN
8 532 42 10-76 PIN, 5/64 X 3/4 COTTER
9 819 13 14-14 WASHER
10 532 42 80-30 WELDMENT, LWR STRG SHAFT
11 532 42 80-35 LINK, STRNG LH
12 532 42 80-36 LINK, STRNG RH
13 874 78 05-24 BOLT, 5/16-18 X 1 1/2
14 819 13 10-16 WASHER
15 873 80 05-00 NUT, 5/16-18
16 532 42 80-44 BUSHING, STEERING SNAP
17 532 42 82-52 SUPPORT, UPPER STEERING
18 532 19 52-27 BUSHING, UPPER STEERING
19 817 00 05-12 BOLT, 5/16-18 X 3/4
20 532 42 80-45 CLIP, RETAINER SPRING
21 532 42 83-47 COVER, STEERING COLUMN
22 532 42 82-13 SHAFT, STEERING
23 532 43 77-47 ADAPTER, STEERING WHEEL
24 819 18 38-12 WASHER, 9/16 X 2 3/8 12 GA.
25 873 94 08-00 NUT, JAM LOCK 1/2-20
26 532 44 16-14 WHEEL, STEERING
27 532 44 16-15 CAP, STEERING WHEEL
28 532 19 98-49 CLIP, RETAINER SPRING
29 532 43 53-23 SPINDLE, LH
30 532 43 64-99 CAP, HUB, AXLE
31 819 34 32-10 WASHER 1-1/16 X 2 X 10 GA
45 532 16 54-92 BOLT SHOULDER 5/16-18 X .561
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
RIDING MOWER MODEL NUMBER WE261 (96022001101)
STEERING
PRODUCT NUMBER 960 22 00-11
To Next Page
