Weed Eater ONE - Page 5

24
10
11
1
2
3
4
5
7
9
8
12
13
41
14
15
16
16
17
17
17
40
21
18
18
19
19
19
19
20
20
21
22
37
42
24
25
26
27
27
28
29
30
31
32
33
34
35
36
37
37
38
39
39
48
LRV-A_Deck_6_r2
51
64
64
6
36
49
50

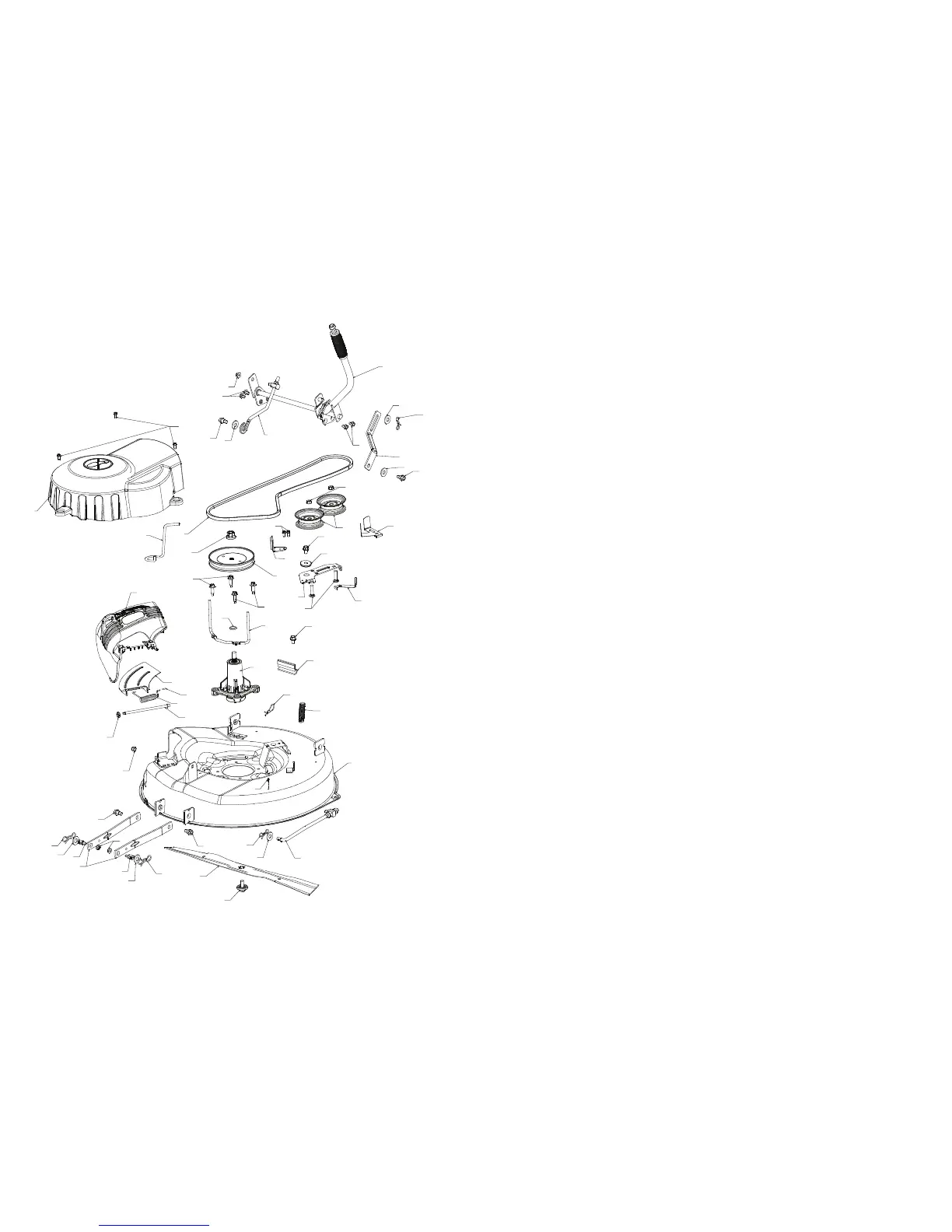

CORTADORA DE CÉSPED MODELO NO. WE261 (96022001101)
PLATAFORMA DE LA CORTADORA DE CÉSPED
PRODUCTO NO. 960 22 00-11
5
1 532 43 70-70 BATTERY
2 532 42 54-16 FOAM, POLYURETHANE
3 532 19 33-50 SWITCH, IGN, DLTA, P-IN, ROS
4 532 41 19-35 KEY/CHAIN
5 532 43 33-30 FUSE, 5A
6 532 42 59-37 FUSE, 40A
7 532 16 07-84 SWITCH, PLUNGER, NO, OLIVE
8 532 43 15-42 RELAY, 40A
9 532 10 95-53 SWITCH, INTLK,CL, MWR, GRY
10 532 17 61-38 SWITCH, INTERLOCK, NONC,GRAY
11 532 43 18-46 MODULE, STARTING, RECOIL, LRV
12 532 19 27-49 SWITCH, SEAT, DP, ROS
13 532 42 84-77 HARNESS, IGN, ELECTSTART, LRV
14 532 10 97-48 RELAY
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
RIDING MOWER MODEL NUMBER WE261 (96022001101)
ELECTRICAL
PRODUCT NUMBER 960 22 00-11
