CORTADORA DE CÉSPED MODELO NO. WE261 (96022001101)

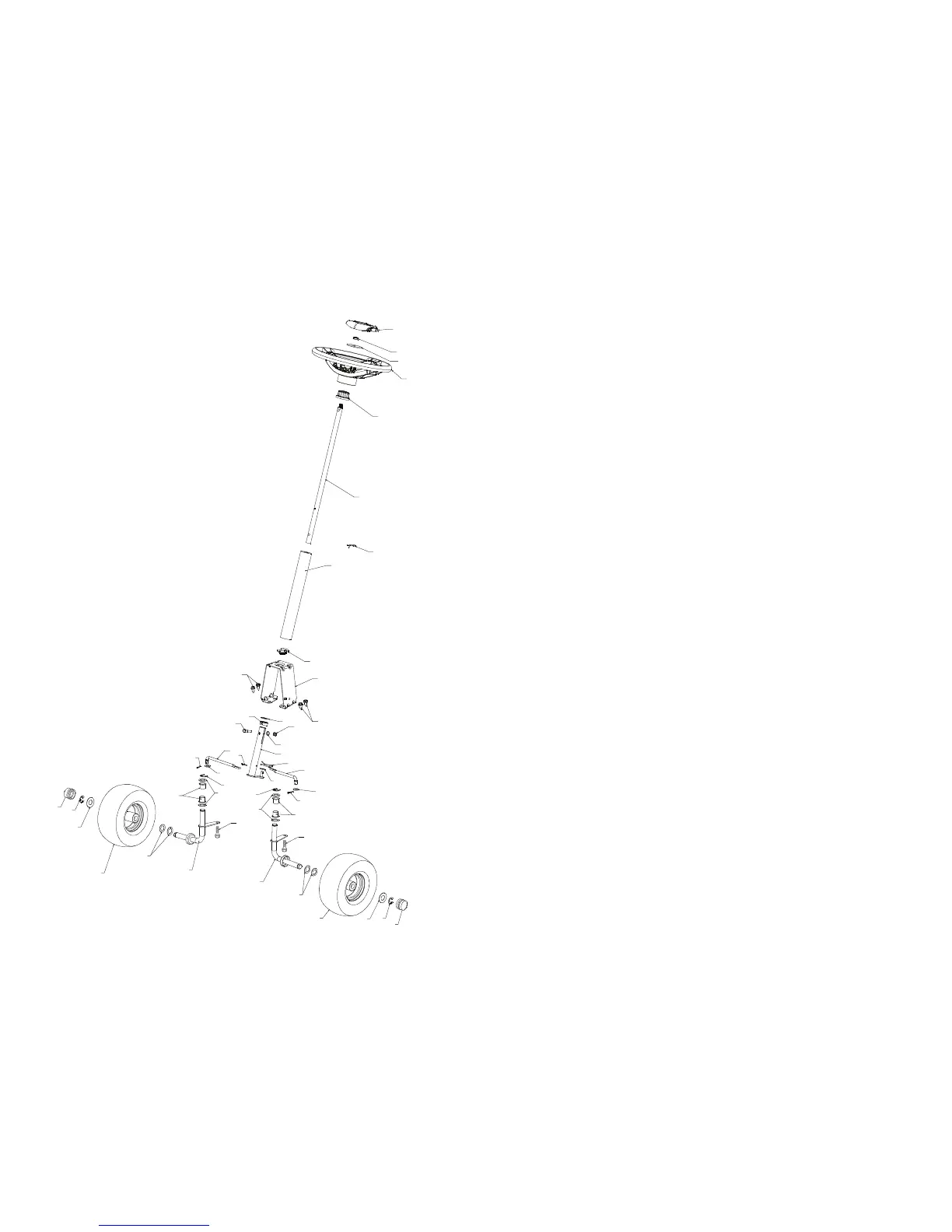

DIRECCIÓN
PRODUCTO NO. 960 22 00-11
7
1 532 42 80-48 WELDMENT, CHASSIS
2 532 42 82-44 SUPPORT, AXLE RH
3 532 42 82-47 SUPPORT, AXLE LH
4 532 42 83-46 SHIELD, TRANSAXLE FRONT
5 532 42 81-10 BRACE, AXLE CROSS
6 532 42 81-09 COVER, FRICTION DRIVE
7 532 42 80-40 PLATE, ENGINE
8 532 42 85-76 BRACKET, CHASSIS FRONT
9 532 42 88-56 BRACKET, STEERING SUPPORT
10 532 19 55-30 PAN, SEAT
11 532 17 46-48 BRACKET, SWITCH MOUNTING
12 532 43 68-91 BOOT, DUST
13 532 43 64-96 COVER, FOOT REST
14 532 42 82-50 STRUCTURE, FOOT REST
15 532 42 82-49 SUPPORT, FOOT REST
16 532 43 64-97 FENDER, CONTROL
17 532 42 83-48 GUARD, ENGINE
18 – – – – – – ENGINE, 12S907-2411-B1 (438113)
(ORDER PARTS FROM ENGINE
MANUFACTURER.)
19 532 42 89-86 KEEPER, BELT
20 532 42 80-46 BRACKET, BATTERY
21 532 42 98-15 LEVER, SWITCH
22 532 42 88-26 DECK CLUTCH ASM
23 532 14 98-46 KNOB
24 532 41 63-58 SCREW, NO. 10
25 872 14 04-24 BOLT, CARRIAGE 1/4-20 X 3
26 873 51 04-00 NUT, 1/4-20
27 532 43 00-87 SPACER, ENGINE
28 532 42 83-01 DISC, FRICTION ASM
29 532 43 08-17 BOLT, SCKT HD 3/8-24 X 1 .25
30 532 43 04-70 BEARING
31 532 43 73-22 SPACER, NEUTRAL
32 817 49 05-06 BOLT, HEX WSH HD 5/16-18 X 3/8
33 532 12 41-81 SPRING, SEAT
34 532 12 12-50 SPRING
35 872 05 04-12 BOLT, 1/4-20 X 1 1/2
36 532 12 70-18 BOLT, SHOULDER
37 819 17 19-12 WASHER, 17/32 X 1 3/16
38 532 16 63-69 KNOB, SEAT
39 532 13 43-00 SPACER
40 532 12 12-48 BUSHING, NYLON SNAP
41 532 12 39-76 NUT, LOCK
42 532 17 18-52 BOLT, 5/16-18 SHOULDER
43 873 80 05-00 NUT, 5/16-18
44 532 44 06-92 SEAT
45 817 00 05-12 BOLT, 5/16-18 X 3/4
46 817 49 05-08 BOLT, 5/16-18 X 1/2
47 532 08 67-77 SCREW
48 532 40 89-81 BEARING, FLANGE, BALL
49 817 06 05-16 SCREW, 5/16-18 X1
50 532 16 54-92 BOLT, SHOULDER, 5/16-18 X .561
52 532 14 50-06 CLIP PUSH-IN HINGED
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
RIDING MOWER MODEL NUMBER WE261 (96022001101)
CHASSIS
PRODUCT NUMBER 960 22 00-11
