Wega LB 4700 - GENERAL DESCRIPTION

66
espresso coffee machine - user instructions
English
3. PREPARATION OF THE MACHINE

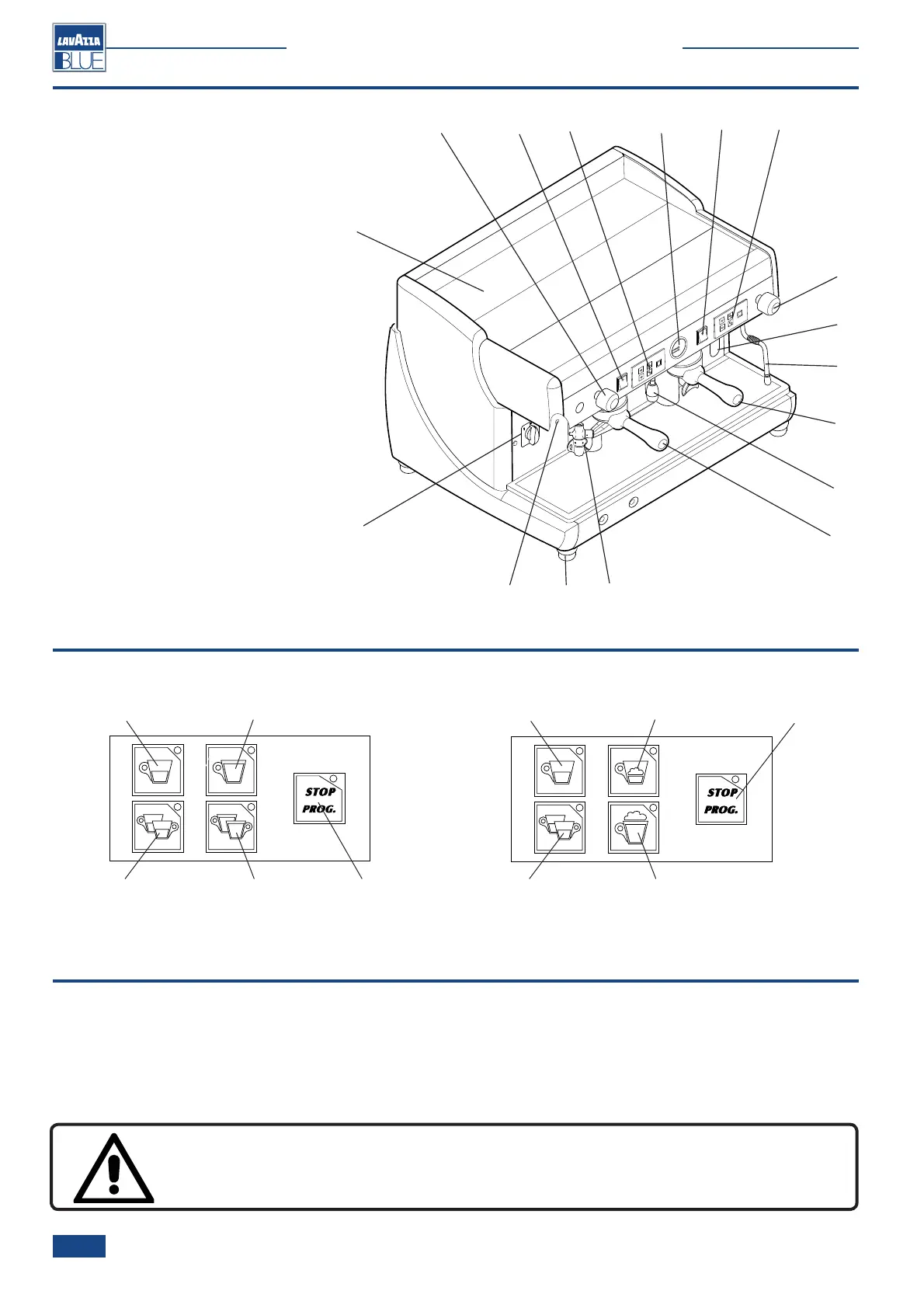

1. GENERAL DESCRIPTION
1 Boiler level-check window
2 Pressure gauge
3 Steam pressure gauge
4 Steam nozzle
5 2-cup filter holder
6 Adjustable foot
7 Hot water nozzle
8 Cappuccino maker
9 Power switch
10 Cup support grille
11 Machine-ON indicator light
12 Hot water knob
13 Manual delivery switch
14 Coffee + cappuccino push button panel
15 Coffee push button panel
16 Cappuccino filter holder
1
4
3
5
6
7
16
9
11
10
12 13 14 2
8
1513
2. PUSH BUTTON PANEL
Short cappuccino
Long cappuccino
1 Espresso
2 Espresso
Stop
Programming
1 Espresso
2 Espresso
1 Long coffee
2 Long coffee Stop
Programming
The preparation of the machine and its installation must be carried out by qualified personnel.
Place the coffee machine on a stable base suitable for a comfortable and correct use of the appliance.
For the machine to operate correctly it must be positioned on a perfectly horizontal surface. Any corrections in machine alignment
must be made by adjusting the feet (6).
Use of the machine without all the installation operations having been carried out by technical
personnel could damage it seriously.
