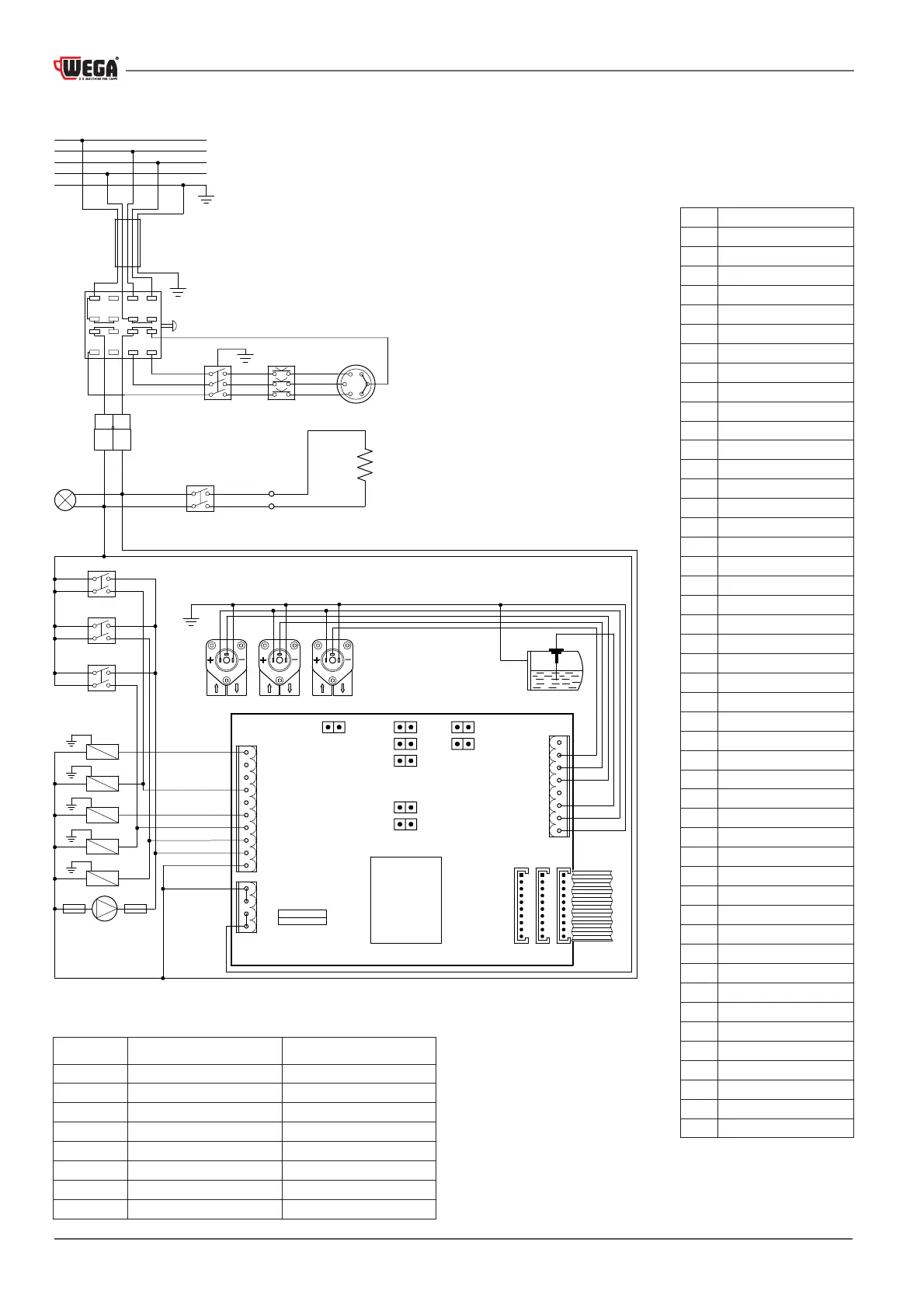

14.7.6 Wiring diagram cod. WY18090030 - WY18090031 *GICAR*
CN7
CN6
SL
NE
BL
NE
MA
MA
MA
GV
RO
BL
VE
VE
VE
VE
VE
CAL
CV3CV2CV1
RO
RO
RO
RO
RO
RO
BL
VE
BL
VE
BL
VE
CN5
CN4
CN3
JP8
CN2
F1
RO
BI
MB
JP7
JP5
JP2
JP1
JP3
JP4
JP6
CT
SCT
LA
PR
SA
CO
RE
400V
IST
R
S
T
N
MA
BL NE GR GV
CAB
MA
BL
IM1
IM2
IM3
EVT
EV1
EVC
EV3
EV2
MP
TR
13 9 5
1
3
71115
16 12 8
4
2
610
14
FP1
FP2
OOO
BI White
BL Blue
CAL Boiler
CN2 Supply connector
CN3
Push button panel connector GR1
CN4
Push button panel connector GR2
CN5
Push button panel connector GR3
CN6 Service outputs connector
CN7 Low voltage connector
CO Power switch
CT Supply connector
CV1 Volumetric counter GR1
CV2 Volumetric counter GR2
CV3 Volumetric counter GR3
EV1 Solenoid valve GR1
EV2 Solenoid valve GR2
EV3 Solenoid valve GR3
EVC Boiler lling solenoid valve
EVT Tea solenoid valve
F1 Inlet fuse (6.3A)
F2 Motor pump fuse (500mA)
FP1(*) Motor pump UL (OPD) fuse
FP2(*) UL (OPD) Fuse for 230V
GR Grey
GV Yellow-green
IC2 Eprom
IM1 GR1 manual switch
IM2 GR2 manual switch
IM3 GR3 manual switch
IST Cup heater switch
LA Indicator light
MA Brown
MB Push button panel membrane
MP Motor pump
NE Black
PR Pressure switch
RE Resistance
RL1 Tea solenoid valve relay
RL2 Solenoid valve relay GR1
RL3 Boiler solenoid valve relay
RL4 Solenoid valve relay GR3
RL5 Solenoid valve relay GR2
RL6 Pump relay
RO Red
SA Resistance safety device
SL Boiler level probe
TR Transformer
VE Green
(
*
) Fuses for UL versions with plug with
a greater capacity than 30A
JUMPER INSERTED NOT INSERTED
JP1 Not managed Not managed
JP2 Pre-infusion enabled Pre-infusion disabled
JP3 Programming enabled Programming disabled
JP4 Boiler lling with pump Boiler lling without pump
JP5 Tea key enabled Tea key disabled
JP6 Tea dispensing with pump Tea dispensing without pump
JP7 STOP key continuation enabled STOP key continuation enabled
JP8 Not managed Not managed
