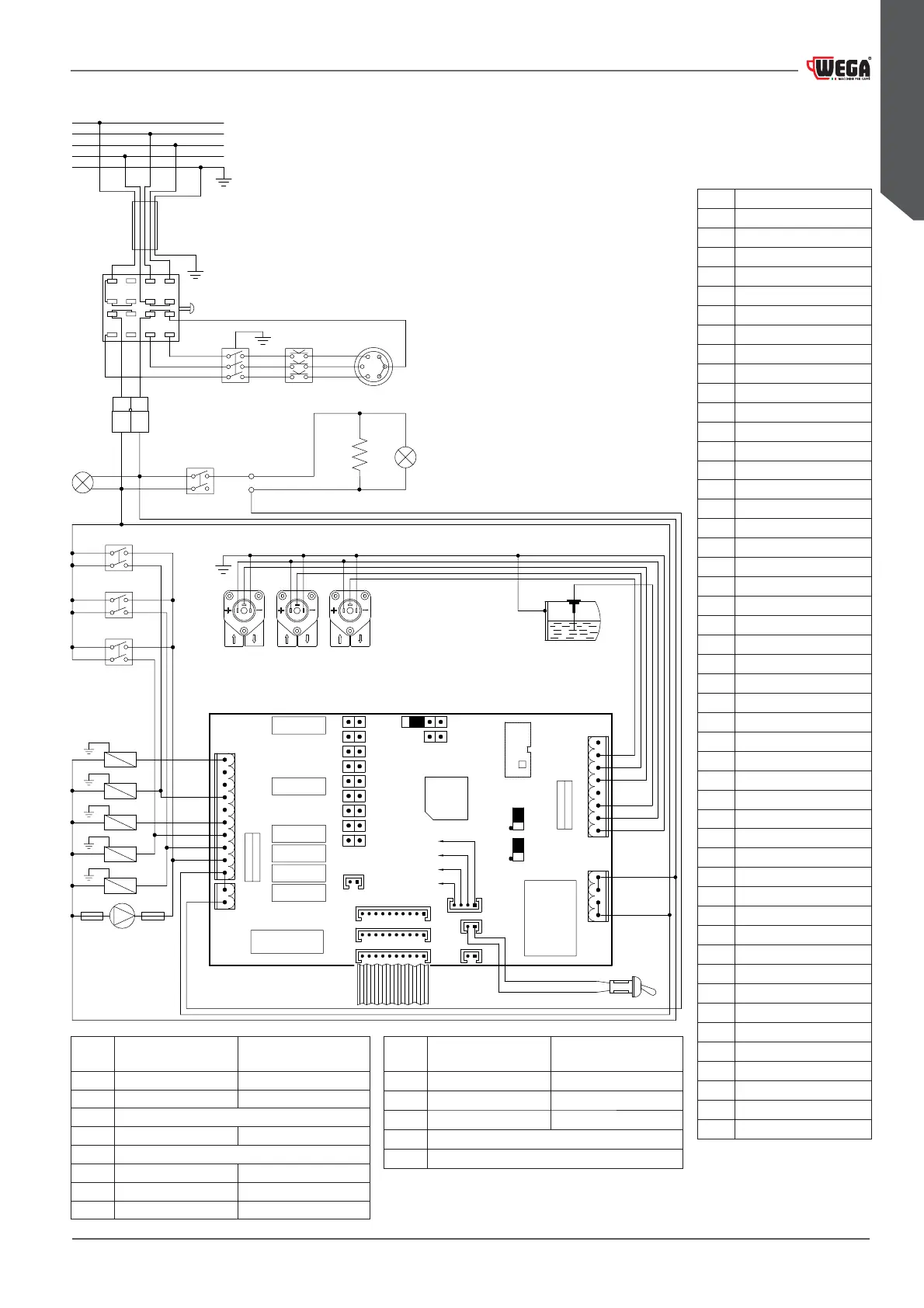

14.7.9 Wiring diagram cod. WY18090047 - WY18090048 *GIEMME*
CN2
CN1
CN14
SL
NE
BL
NE
MA
MA
MA
GV
RO
BL
VE
VE
VE
VE
VE
VE
CV3CV2CV1
CT
SCT
MB
IST
LA
CN10
CN11
CN12
CN6
LST
RL9
TRF1
JP5
JP3
CN5
JP6
JP4
F2
JP7
JP15
JP18
JP2
JP9
JP17
JP1
JP8
JP16
TXD
RXD
GND
JP12
JP14
CN4
+5V
CN18
RL6
RL4
RL3
RL2
RL10
F1
RL1
IC9
IP
RO
RO
RO
RO
RO
RO
BI
RO
BL
VE
BL
VE
BL
VE
PR
SA
CO
RE
400V
R
S
T
N
MA
BL NE GR GV
CAB
MA
BL
IM1
IM2
IM3
CAL
EVT
EV1
EVC
EV3
EV2
MP
13 9 5
1
3
71115
16 12 8
4
2
610
14
FP1
FP2
OOO
BI White
BL Blue
CAL Boiler
CN1 Supply connector
CN2 Low voltage connector
CN4 Serial transmission connector
CN10
Push button panel connector GR1
CN11 Push button panel connector GR2
CN12 Push button panel connector GR3
CO Power switch
CT Supply connector
CV1 Volumetric counter GR1
CV2 Volumetric counter GR2
CV3 Volumetric counter GR3
EV1 Solenoid valve GR1
EV2 Solenoid valve GR2
EV3 Solenoid valve GR3
EVC Boiler lling solenoid valve
EVT Tea solenoid valve
F1 Inlet fuse (6.3A)
F2 Motor pump fuse (500mA)
FP1(*) Motor pump UL (OPD) fuse
FP2(*) UL (OPD) Fuse for 230V
GR Grey
GV Yellow-green
IC2 Microprocessor
IM1 GR1 manual switch
IM2 GR2 manual switch
IM3 GR3 manual switch
IP Programming switch
IST Cup heater switch
LA Indicator light
MA Brown
MB Push button panel membrane
MP Motor pump
NE Black
P5 Tea dose
P6 Not managed
P7 Serial connection
P9 Service outputs connector
P10 Low voltage connector
P11 Power supply
PR Pressure switch
RE Resistance
RO Red
SA Resistance safety device
SL Boiler level probe
TR Transformer
VE Green
(
*
) Fuses for UL versions with plug with
a greater capacity than 30A
JUMPER INSERTED NOT INSERTED
JP1 Serial transmission enabled Serial transmission disabled
JP2 Pre-infusion enabled Pre-infusion disabled
JP3 Programming key connection
JP4 Boiler lling with pump Boiler lling without pump
JP5 Tea key connection
JP6 Tea dispensing with pump Tea dispensing without pump
JP7 Continuous function disabled Continuous function enabled
JP8 Dose count enabled Dose count disabled
JUMPER INSERTED NOT INSERTED
JP9 Credit/Debit enabled Credit/Debit disabled
JP15
Display function keys enabled Display function keys disabled
JP16 6-key push button panel enabled 4-key push button panel enabled
JP17 Boiler t°check with external pressure switch (always on)
JP18 Heat.temp./press. management always ON
