WEICHAI R6160 Series - Flowchart for lubricating system of R6160 A series diesel engine

R660系列柴油机维修保养手册
--
Maintenace Manual For R660 Series Diesel Engine
增压器Turbocharger
挺柱Tappet
凸轮轴Camshaft
机油冷却器Oil cooler
主油道Main oil passage
主轴承及连杆轴承Main bearings and
connecting rod bearings
电动预供油泵Electric oil pre-supply pump
机座Bed plate
摇臂Rocker arm
活塞Piston
机油泵Oil pump
机油滤清器Oil filter
限压阀Pressure limiting valve
飞轮Flywheel
回机座Return bed plate

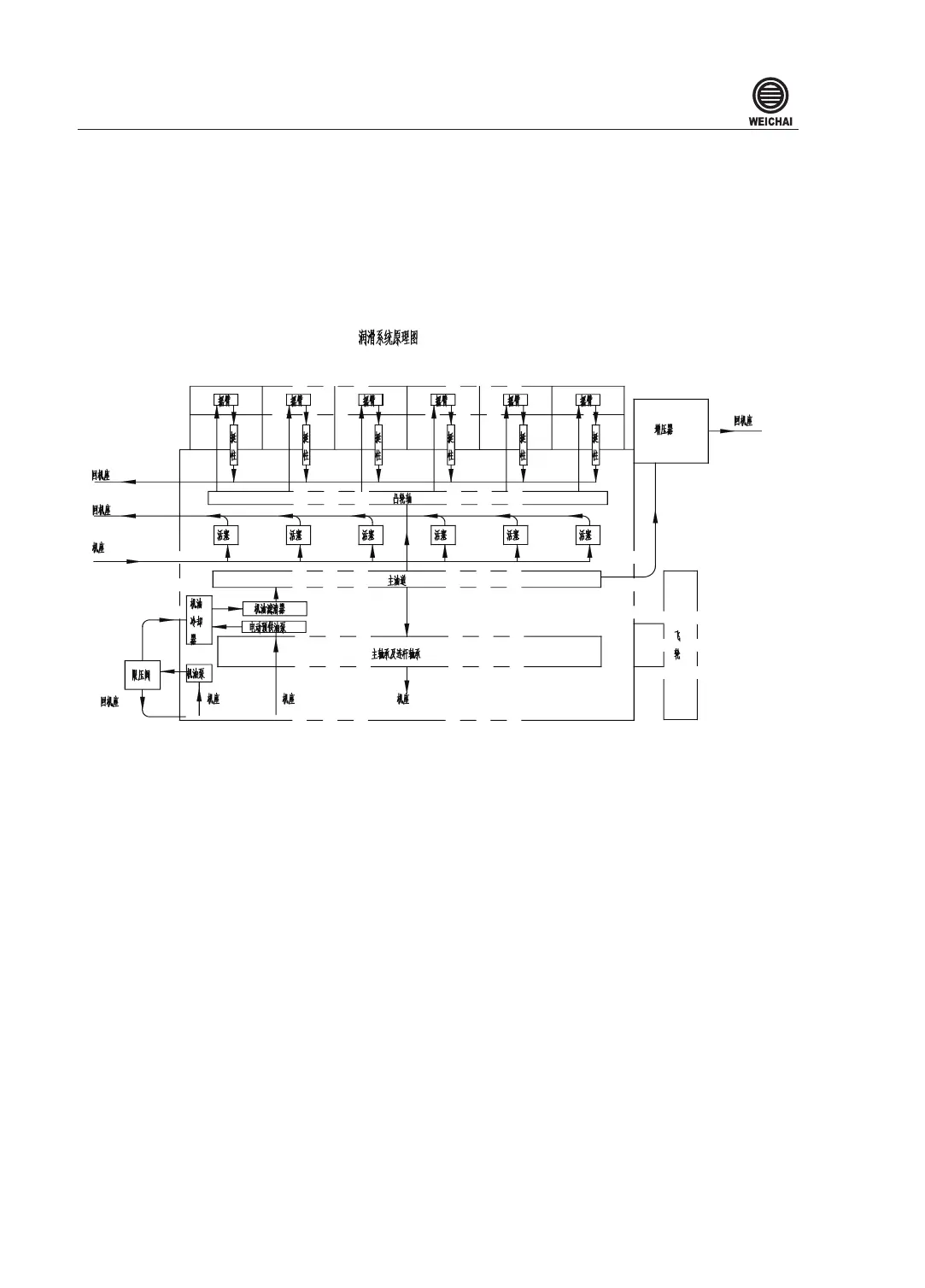

1.1 R6160A 系列柴油机润滑系统流程图
Flowchart for lubricating system of R6160A series diesel engine
