WEICHAI R6160 Series User Manual

R660系列柴油机维修保养手册
-6-
Maintenace Manual For R660 Series Diesel Engine
2．冷却系统
Cooling system

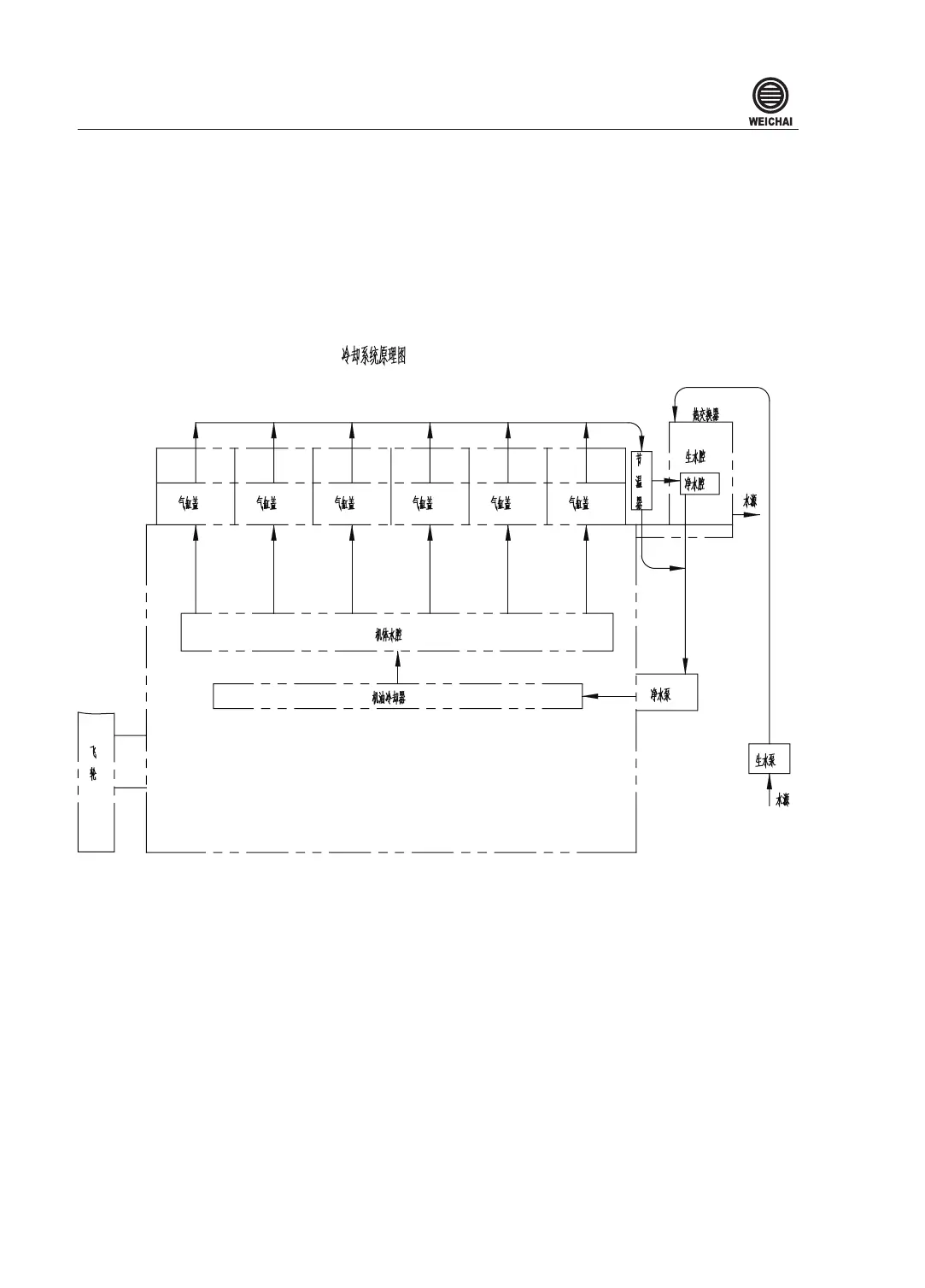

2.1 R6160A 系列柴油机冷却系统流程图
Flowchart for cooling system of R6160A series diesel engine
气缸盖Cylinder head
节温器Thermostat
热交换器Heat exchanger
生水腔Raw water cavity
净水腔Treated water cavity
水源Water source
净水泵Treated water
生水泵Raw water pump
机体水腔Water cavity of cylinder block
机油冷却器Oil cooler
飞轮Flywheel
