Operation and Maintenance Manual forWP10 Series Four-valve Diesel Engine (China IV, V)
15

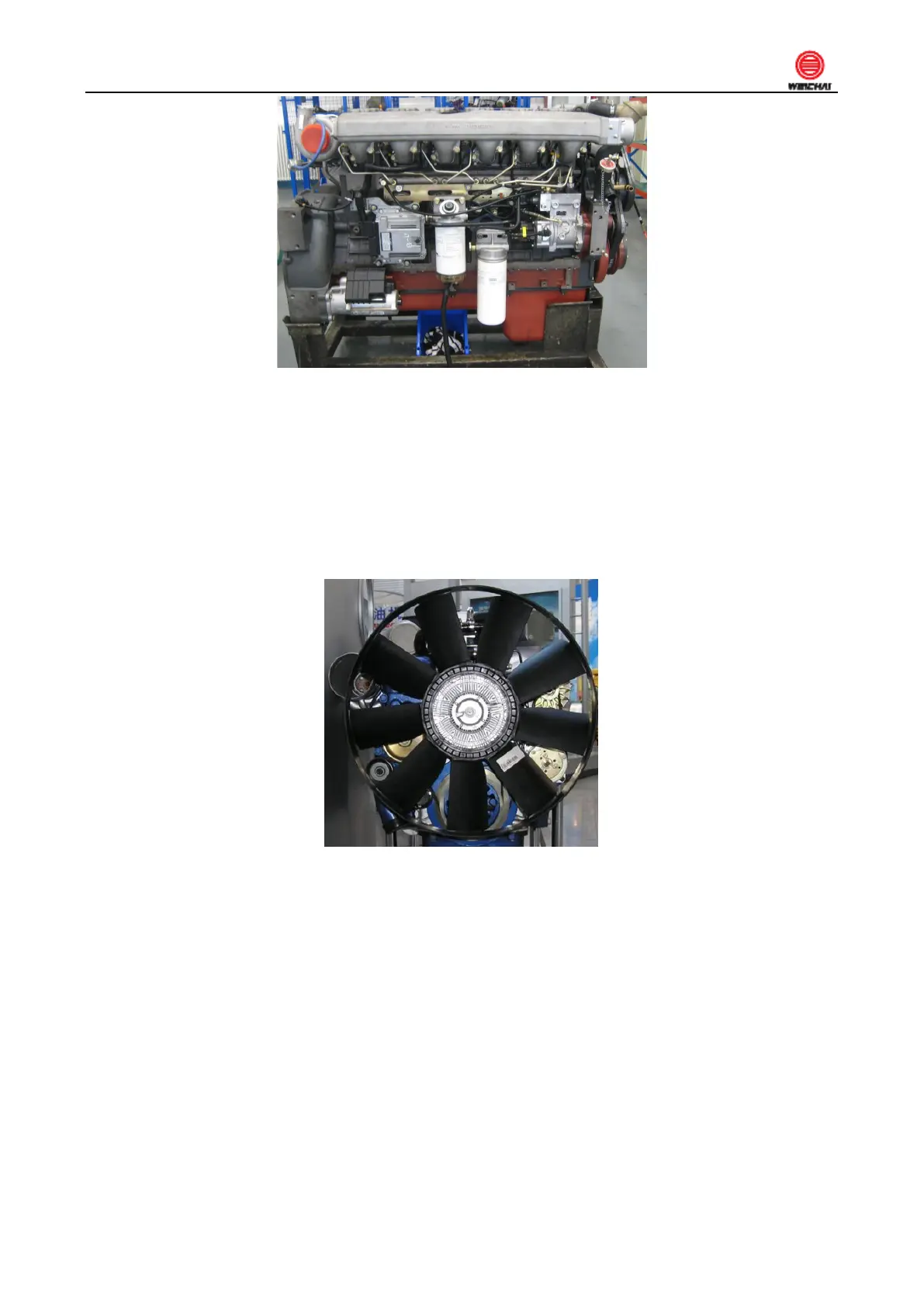

Figure 5-4 Diesel engine
e. Check the liquid level in DEF tank
The liquid level should be maintained in between 30% to 80% of total urea tank volume.
f. Check the fan
Visually check fan blade fordeformation and damage and check the connecting bolts for tightness (Figure 5-5).
Figure 5-5
g. Check the belt
The belt is automatically tensioned by the tensioner. Check the tension of belt by pressing the belt with hand.
h. Check the exhaust color
The normal color of exhaust gas is light grey. Do troubleshooting if the color has changed. See figure 5-6.
