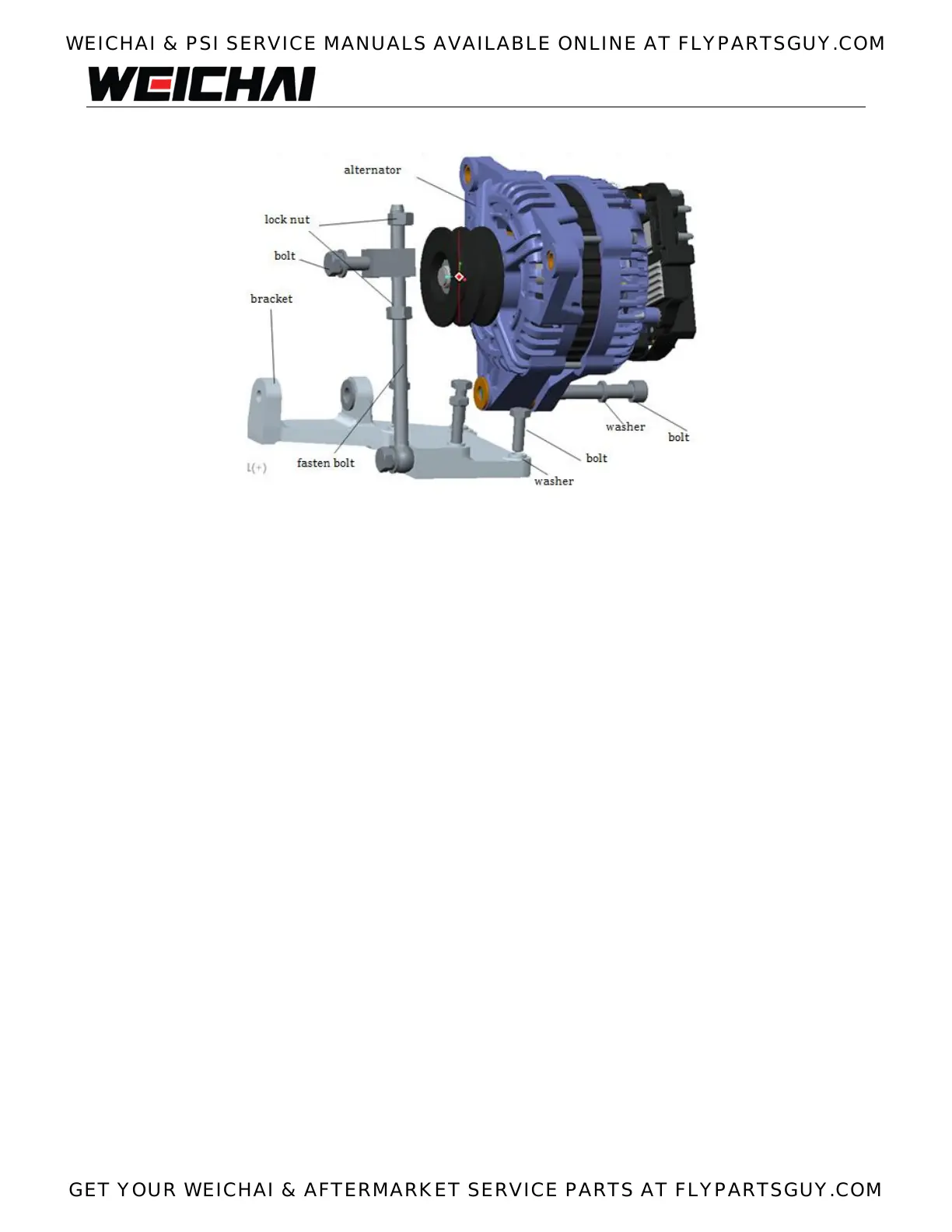

Fig. 5-2 Exploded view of generator
5.2.2 Alternator Disassembly Procedure
1. Remove the alternator lock nut to loosen the belt if it has not already been removed. Remove
the belt from the alternator pulley.
2. Remove the ground cable and the battery cable from the alternator.
3. Remove all bolts bolting the alternator to the bracket. Remove the alternator from its bracket.
4. Remove the four hex bolts bolting the alternator bracket to the engine block. Remove the
alternator bracket from the engine block.
5.2.3 Alternator Assembly Procedure
Reverse the Disassembly Procedure (5.2.2) to assemble the Alternator.
