11.8 Assembly and disassembly of thrust plates.

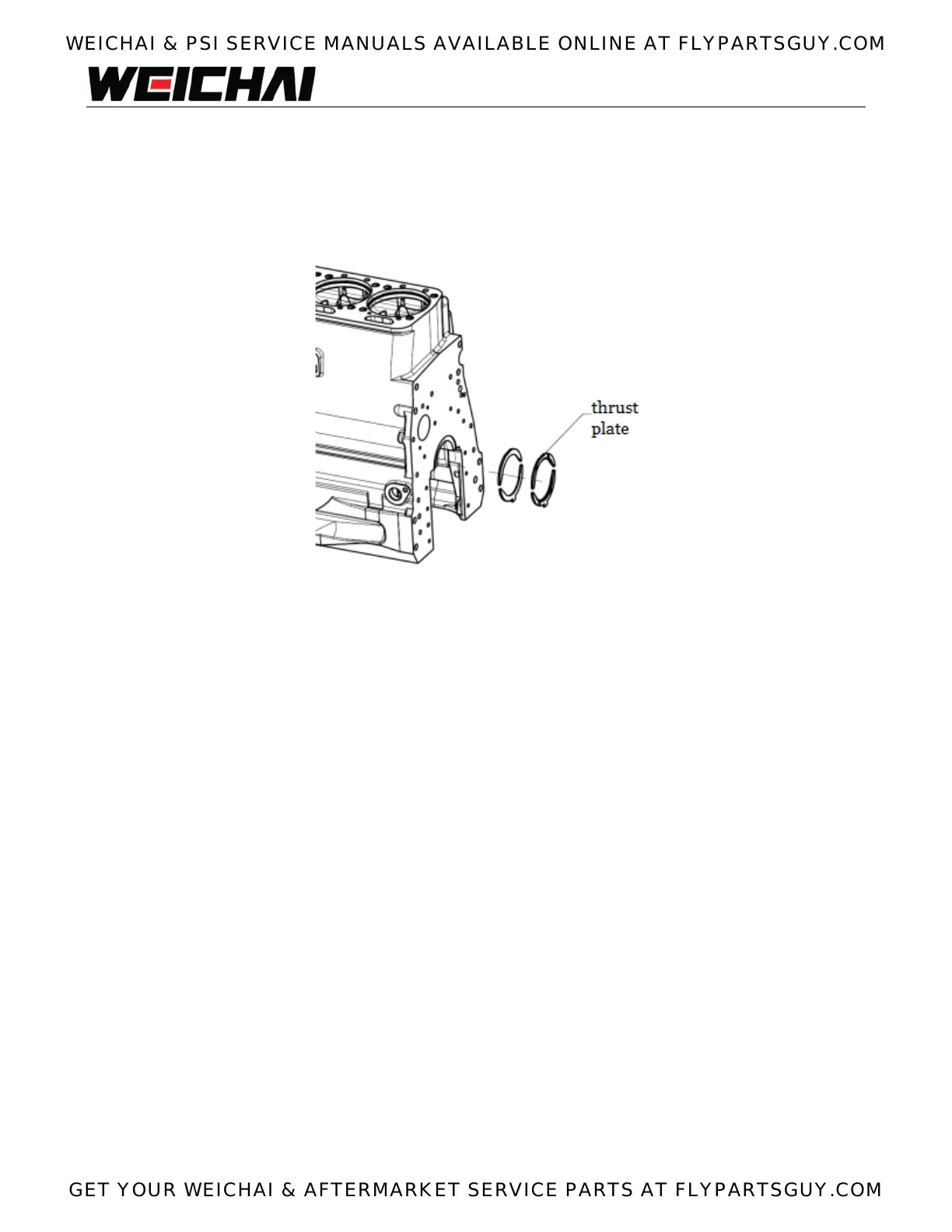

11.8.1 Exploded view of thrust plates.
Fig. 11- 12 Exploded view of thrust plates
11.8.2 Steps to disassemble thrust plates
① Remove main bearing cap (refer to disassemble engine block module steps)
② Remove crankshaft (refer to disassemble crankshaft steps)
③ Remove thrust plates (key point 1)
11.8.3 Steps to assemble thrust plates
Assembling thrust plate steps are contrary to disassembling ones.
11.8.4 Inspection and maintenance of thrust plates
Key point 1: Assembling
Thrust plate should be used in pairs and the side with oil groove should be outward during assembling.
Put the anti-misloading lug in corresponding groove of thrust bearing cap.
