Weichai America Corp.
Revision: August 2019 47
10 Oil & Lubrication System
10.1 Assembly and disassembly of oil sump.
10.1.1 Exploded view of oil sump.

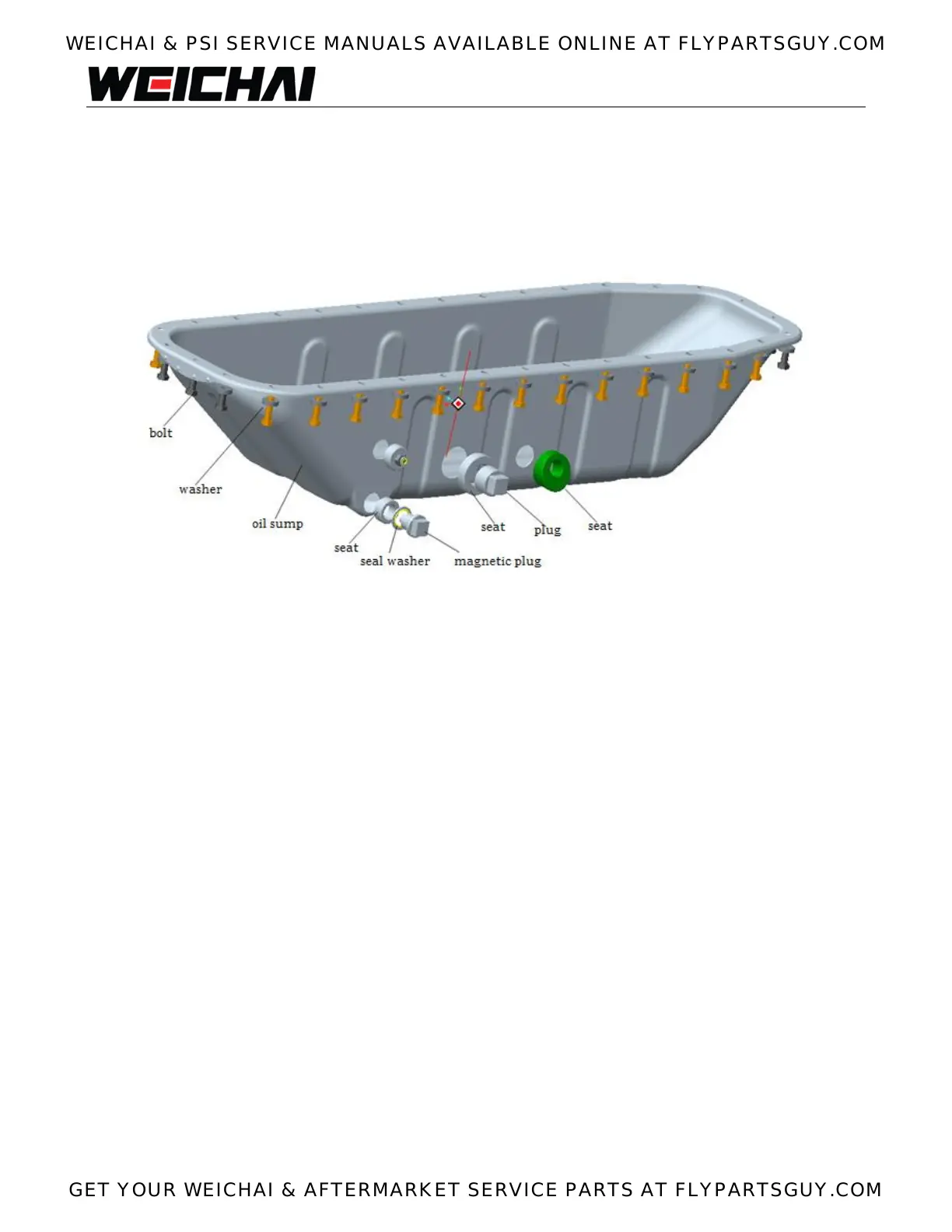

Fig. 10-1 Exploded view of oil sump
10.1.2 Steps to disassemble oil sump.
① Turn over engine to keep oil sump upward (key point 1)
② Remove fixing bolts of oil sump.
③ Remove oil sump.
④ Remove the combination gasket and magnetic screw plug assembly.
10.1.3 Steps to assemble oil sump.
Assembling steps are contrary to disassembling ones.
10.1.4 Inspection and maintenance of oil sump.
Key point 1: Disassembling
Before the disassembling, all engine oil should be drained out. Put an engine oil container under drain
screw plug of oil sump, screw off the plug with a plug wrench to drain oil out.
Key point 2: Assembling
