4.2.7 Loader unit
The loader unit consists of a lifting frame and the power
coupler system for attachments.
The lock of the power coupler is operated hydraulically.
The hydraulic functions of the loader unit are carried out
with various hydraulic cylinders. Various hydraulic connec-
tions for attachments with hydraulic functions are located
on the loader unit. The loader unit also includes the at-
tached attachment.
4.2.8 Driver's platform
Depending on the equipment, the ROPS/FOPS protective
superstructure for the driver is designed as an overhead
guard or cab and tested with category 1.
• ROPS is the abbreviation for: Roll Over Protective
Structure
• FOPS is the abbreviation for Falling Object Protective
Structure
The operator's seat and the operating and control elements
are located on the driver's platform.
4.2.8.1 Fire extinguisher

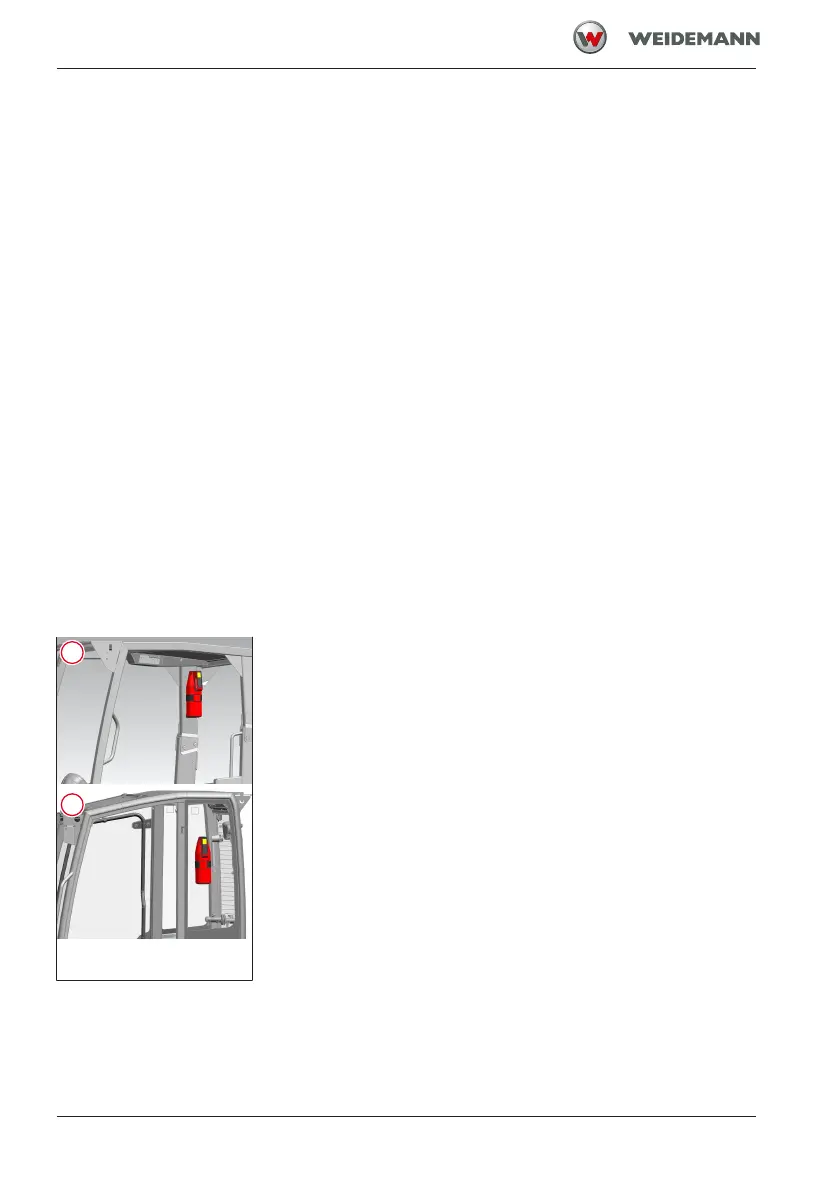

Fig.3: Installation site for
the fire extinguisher
1 For overhead guard equipment
2 For cab equipment
The fire extinguisher is not included in the vehicle’s stand-
ard equipment. Only have the fire extinguisher retrofitted
by an authorized specialist service center. Operate the fire
extinguisher according to the instructions printed on the fire
extinguisher.
To maintain the functionality of the fire extinguisher, follow
the instructions below:
• Have fire extinguishers checked regularly or refilled. A
corresponding test badge is located on the container.
• Only use fire extinguishers in an emergency.
• If the fire extinguisher has been used, have it checked
immediately by an authorized service center and re-
filled. It may be necessary to replace it with a new fire
extinguisher.
