5.2.1.1 Seat MSG20
1 2 3

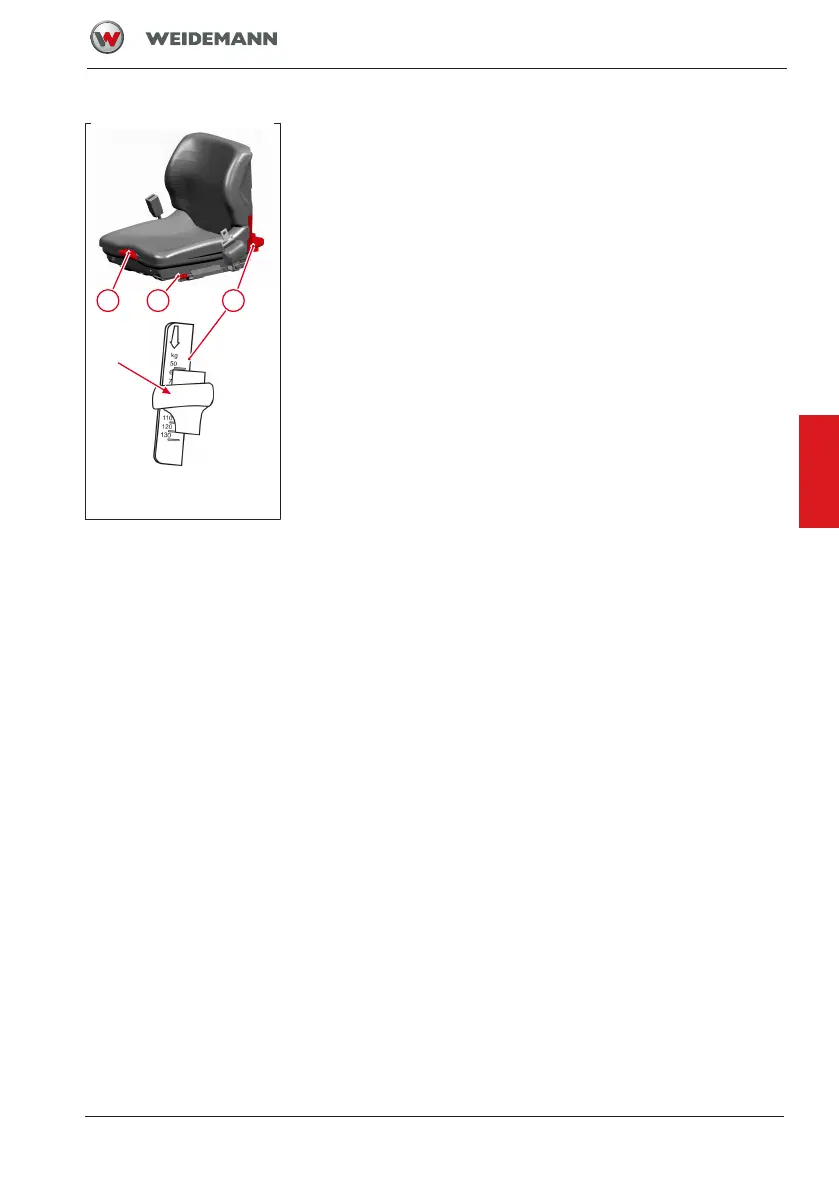

Fig.44: Seat adjustment
options MSG20
Sit on the seat to adjust.
Adjusting the backrest
1. Pull lever 1 upward and hold.
2. Then slide the seat forward or backward until the
backrest is at the required angle.
3. Release lever1.
After adjustment, lever 1 must engage in the desired posi-
tion. Once it is locked in place the backrest must no longer
move.
Adjusting longitudinal direction
1. Pull lever 2 upward and hold.
2. Push the seat forwards or backwards into the desired
position.
3. Release lever2.
After adjustment, lever 2 must engage in the desired posi-
tion. It shall not be possible to move the seat after it has
been locked.
Adjusting the suspension
1. Push lever 3 down until the operator weight (e.g. 80
kg) is set on the scale.
ð The suspension is correctly adjusted when the
weight set on the scale matches the operator's
weight.
2. Release lever3.
ð Lever 3 engages.
ð The suspension is adjusted to the operator weight.
If the suspension is to be changed to a lower operator
weight than set on the scale, proceed as follows:
1. Push lever 3 all the way down.
ð Lever 3 goes up to the lowest weight (50 kg).
2. Repeat the procedure as described above.
