14
27. Attach the Lat Cable (74) to the Weight
Carriage (35) with the M10 x 20mm Bolt (89)
and an M10 Nylon Locknut (80).
28. Identify the Butterfly Cable (76). Attach the
Cable to the Left Butterfly Arm (33) with an
M8 x 22mm Shoulder Bolt (101) and an M8
Nylon Locknut (81). Make sure the flat edge
of the Cable is against the Butterfly Arm. Do
not overtighten the Nylon Locknut; the
Cable must pivot freely.
80
89
35
74
27
28
76
33
81

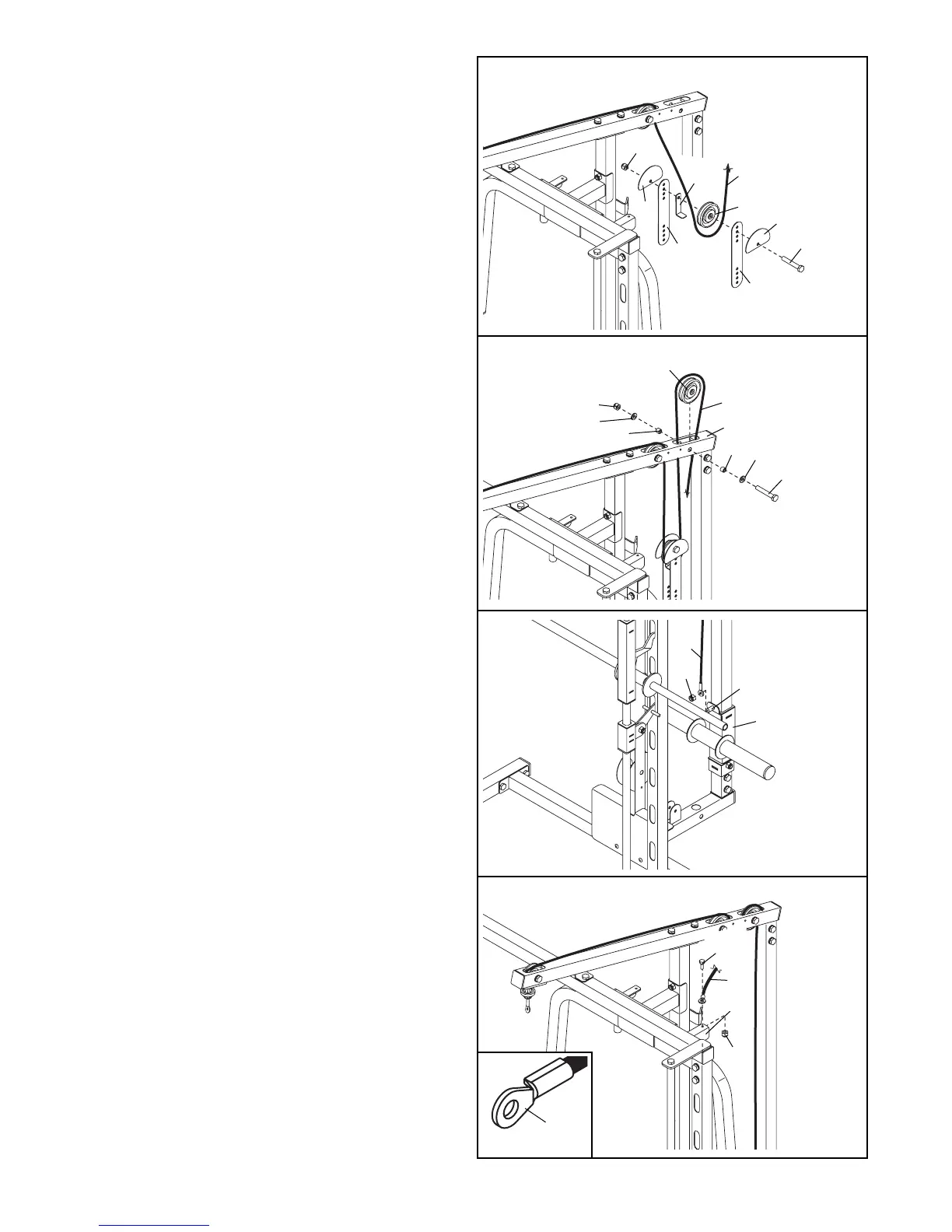

25. Route the Lat Cable (74) under a 90mm Pulley
(55). Attach the Pulley and a Cable Trap (61) to
two Pulley Plates (59) with an M10 x 48mm
Bolt (92), two Half Guards (58), and an M10
Nylon Locknut (80). Make sure the Cable Trap
is oriented to hold the Cable in the groove
of the Pulley. Do not overtighten the Nylon
Locknut; the Pulley must turn freely.
80
58
59
59
58
92
61
74
55
25
26
74
55
80
83
77
77
83
85
31
26. Route the Lat Cable (74) up through the Top
Frame (31), over a 90mm Pulley (55), and
down through the Top Frame. Next, attach the
Pulley inside the Top Frame with an
M10 x 68mm Bolt (85), two M10 Washers (83),
two 16mm x 13mm Spacers (77), and an M10
Nylon Locknut (80).
Flat
Edge
101
To Next Page
