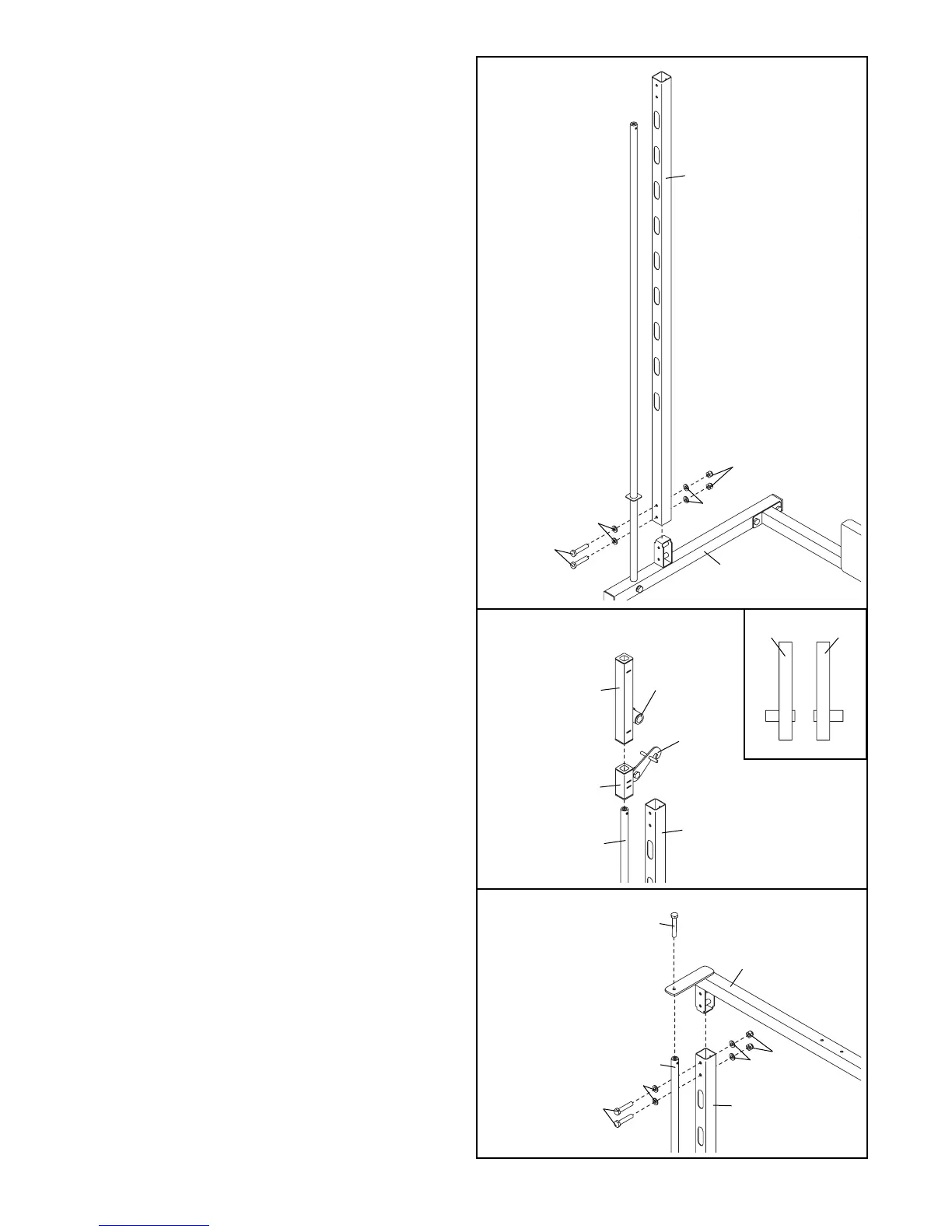

16. Attach a Front Upright (29) to the right Side
Base (51) with two M10 x 68mm Bolts (85), four
M10 Washers (83), and two M10 Nylon
Locknuts (80). Do not tighten the Nylon
Locknuts yet.
Repeat this step with the left Side Base (51).
17. Slide one of the Safety Spotters (38) onto the
right Guide Rod (28). Engage the Spotter Hook
(40) into one of the holes near the lower end of
the right Front Upright (29).
See the inset drawing. Identify the Right Barbell
Guide (36). Orient the Right Barbell Guide as
shown and slide it onto the right Guide Rod (28).
Repeat this step with the other Safety
Spotter (not shown) and the Left Barbell
Guide (not shown).
18. Attach the Front Top Frame (30) to the right
Front Upright (29) with two M10 x 68mm Bolts
(85), four M10 Washers (83), and two M10
Nylon Locknuts (80). Do not tighten the Nylon
Locknuts yet.
Repeat this step with the left side of the
Front Top Frame (30).
Attach the Front Top Frame (30) to the right
Guide Rod (28) with an M10 x 25mm Bolt (86).
Do not tighten the Bolt.
29
16
80
83
51
83
85
38
36
36
37
17
18
40
Short End
28
29
86
30
28
29
80
83
83
85
To Next Page
