10

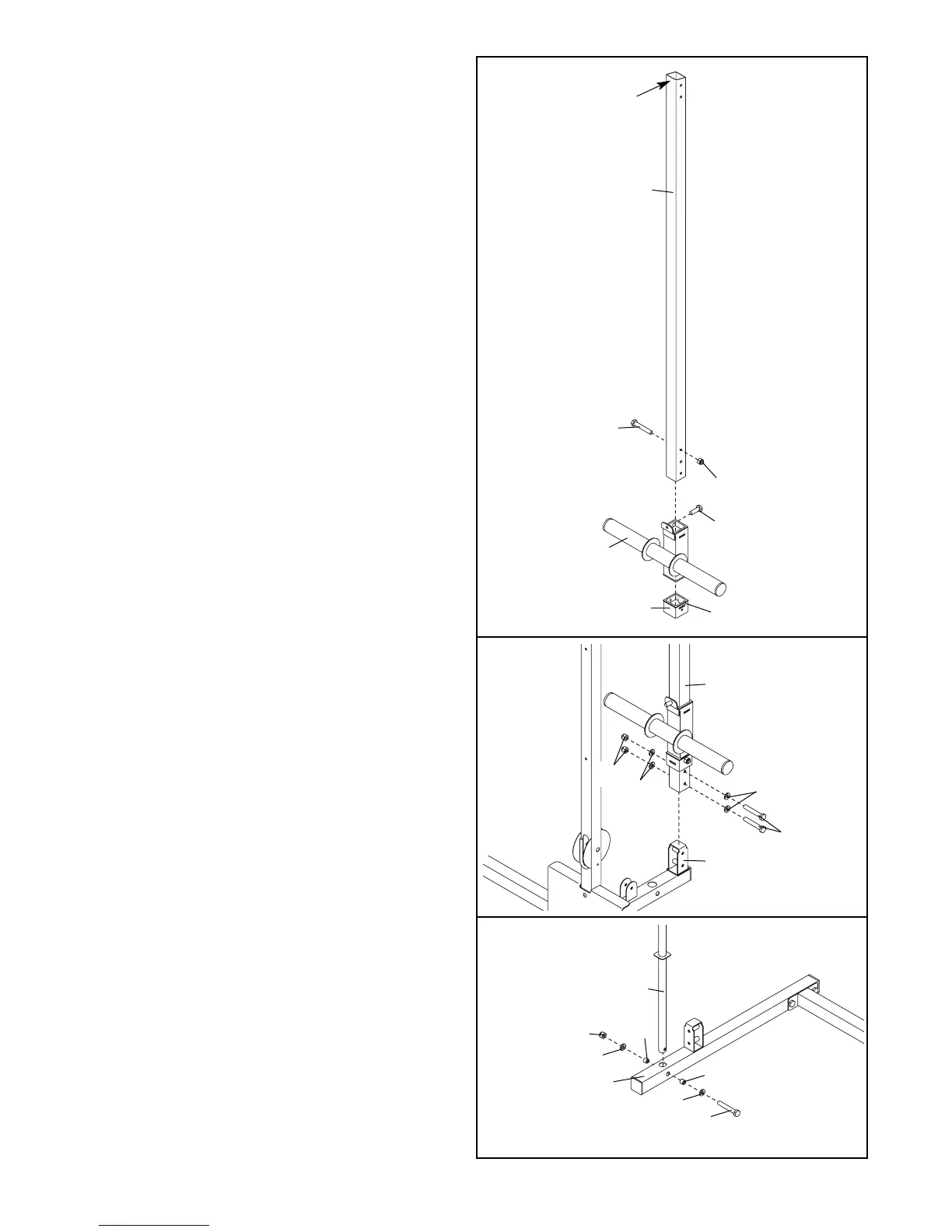

13. Insert an M10 x 20mm Bolt (89) into the Weight
Carriage (35). Orient the Weight Carriage and
the Rear Upright (27) as shown. Slide the
Weight Carriage onto the Upright.
Orient the Weight Carriage Stop (48) so the
60mm Bushing (54) is at the top. Slide the
Weight Carriage Stop onto the Rear Upright
(27) and secure it with an M8 x 70mm Bolt (93)
and an M8 Nylon Locknut (81).
14. Attach the Rear Upright (27) to the Rear Base
(25) with two M10 x 68mm Bolts (85), four M10
Washers (83), and two M10 Nylon Locknuts
(80). Do not tighten the Nylon Locknuts yet.
15. Attach a Guide Rod (28) to the right Side Base
(51) with an M8 x 65mm Bolt (79), two M8
Washers (84), two 13mm x 13mm Spacers
(78), and an M8 Nylon Locknut (81). Do not
tighten the Nylon Locknut.
Repeat this step with the left Side Base (51).
27
Tall
Side
13
93
35
89
48
54
81
25
27
83
83
80
85
14
15
28
81
84
51
78
78
84
79
