Weider 350 Bench User Manual

16

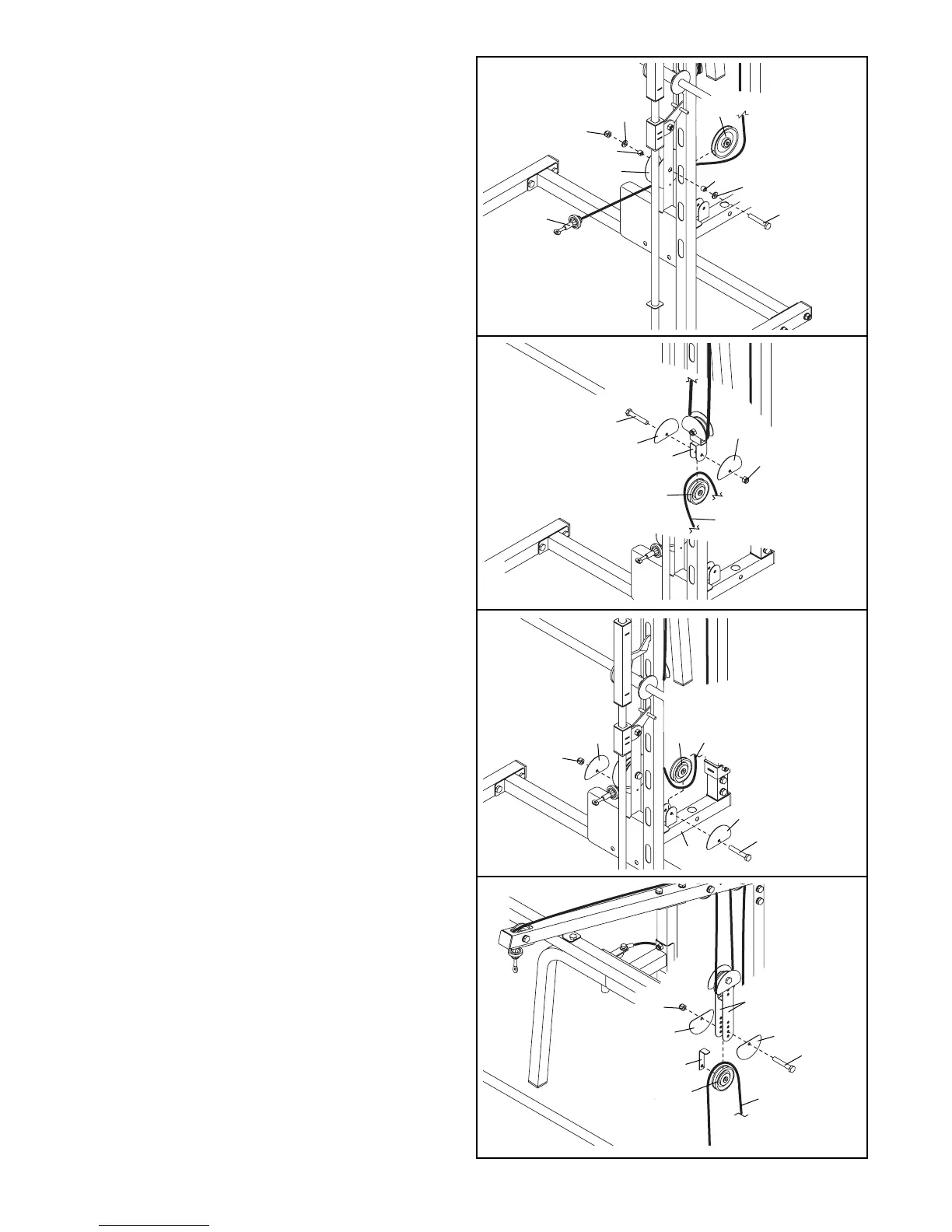

35. Route the Low Cable (75) under a 90mm Pulley
(55). Attach the Pulley to the Rear Base (25)
with an M10 x 48mm Bolt (92), two Half Guards
(58), and an M10 Nylon Locknut (80). Do not
overtighten the Nylon Locknut; the Pulley
must turn freely.
36. Route the Low Cable (75) over a 90mm Pulley
(55). Attach the Pulley and a Cable Trap (61) to
the two Pulley Plates (59) with an M10 x 48mm
Bolt (92), two Half Guards (58), and an M10
Nylon Locknut (80). Make sure the Cable Trap
is oriented to hold the Cable in the groove
of the Pulley. Do not overtighten the Nylon
Locknut; the Pulley must turn freely.
55
75
58
58
80
92
25
35
36
58
58
59
92
75
61
33. Identify the Low Cable (75). Route the Cable
through the Center Upright (26) and under a
115mm Pulley (57). Attach the Pulley inside the
Upright with an M10 x 68mm Bolt (85), two M10
Washers (83), two 16mm x 13mm Bushings
(77), and an M10 Nylon Locknut (80).
75
80
77
26
83
57
85
33
34
92
58
60
58
80
75
55
34. Route the Low Cable (75) over a 90mm Pulley
(55). Attach the Pulley to the Double Pulley
Bracket (60) with an M10 x 48mm Bolt (92), two
Half Guards (58), and an M10 Nylon Locknut
(80).
Do not overtighten the Nylon Locknut;
the Pulley must turn freely.
55
83
77
80
