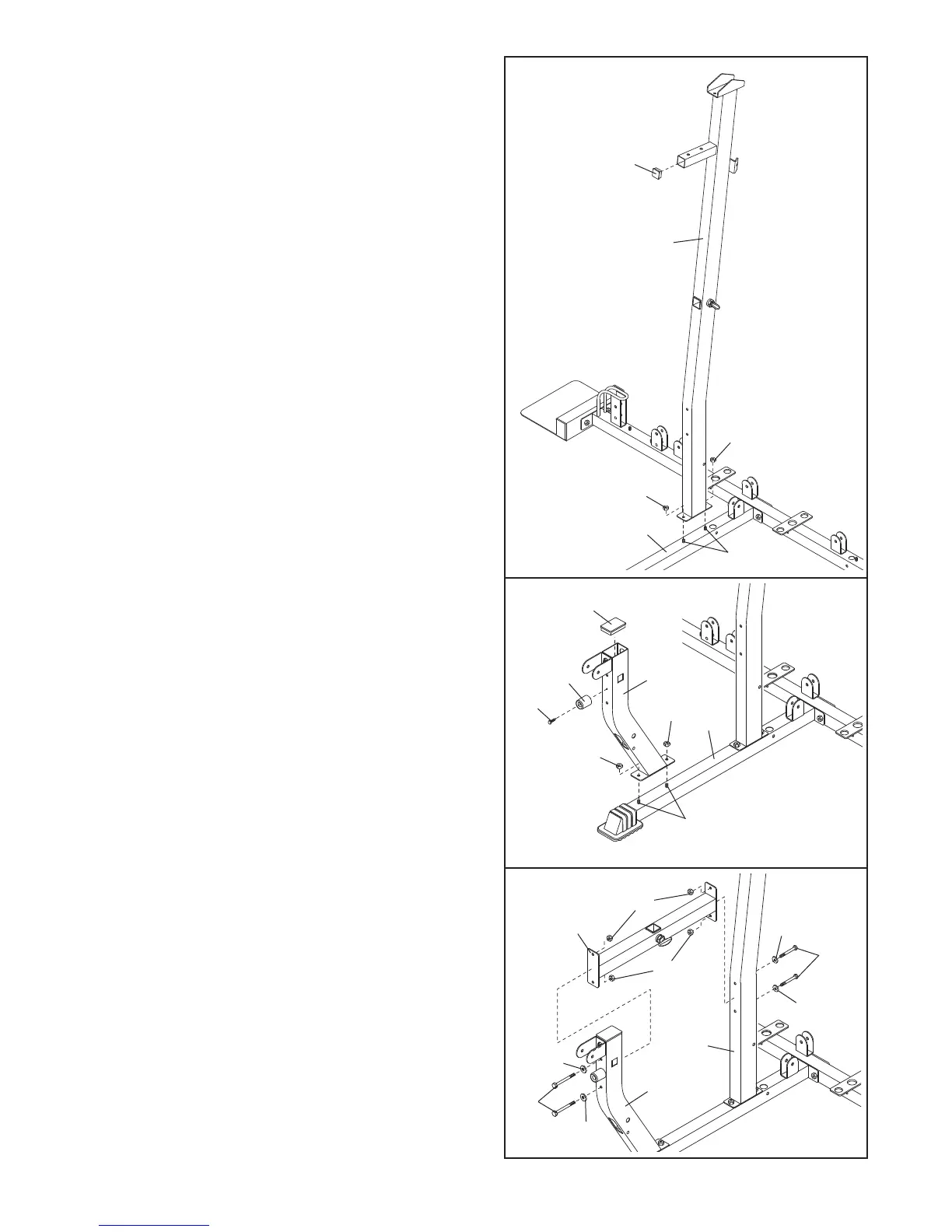

4. Press a 1 1/2” Square Inner Cap (67) into the
square tube on the Butterfly Upright (3). Slide the
Butterfly Upright onto the two indicated 5/16” x 2 1/2”
Carriage Bolts (110) in the Short Base (2). Finger
tighten a 5/16” Nylon Locknut (86) onto each
Carriage Bolt.
Do not tighten the Nylon Locknuts
yet.
5. Press a 2” x 3” Inner Cap (58) into the top of the
Seat Upright (9). Attach the Leg Lever Bumper (77)
to the Seat Upright with a #10 x 1” Screw (14).
Slide the Seat Upright (9) onto the two indicated
5/16” x 2 1/2” Carriage Bolts (110) in the Short
Base (2). Finger tighten a 5/16” Nylon Locknut (86)
onto each Carriage Bolt.
Do not tighten the Nylon
Locknuts yet.
7
4
3
86
110
86
2
67
5
2
110
86
86
77
14
58
9
6
9
92
92
90
3
90
90
90
86
86
8
6. Hold the Seat Frame (8) between the Seat Upright
(9) and the Butterfly Upright (3). Attach the Seat
Frame to the Seat Upright with two 5/16” x 3 3/4”
Bolts (92), two 5/16” Washers (90), and two 5/16”
Nylon Locknuts (86).
Do not tighten the Nylon
Locknuts yet.
Attach the Seat Frame (8) to the Butterfly Upright
(3) with two 5/16” x 3 3/4” Bolts (92), two 5/16”
Washers (90), and two 5/16” Nylon Locknuts (86).
Do not tighten the Nylon Locknuts yet.

Weider 3550 Specifications

General

Brand	Weider
Model	3550
Category	Home Gym
Language	English
