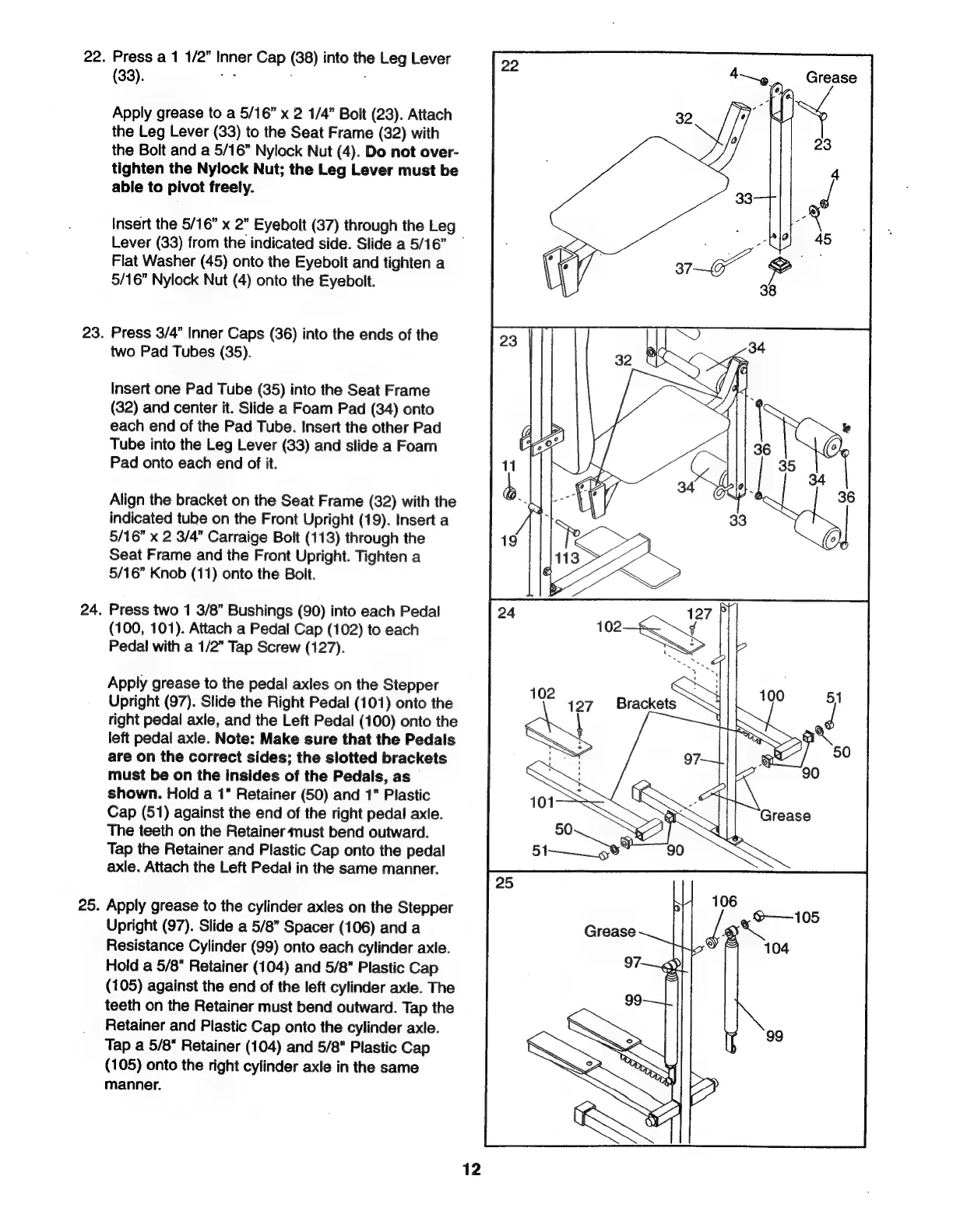

22.
23.
24.
25.
Press
а
1
1/2”
Inner
Cap
(38)
into
the
Leg
Lever
(33).
оо
>
:
Apply
grease
to
a
5/16”
x
2
1/4”
Bolt
(23).
Attach
the
Leg
Lever
(33)
to
the
Seat
Frame
(32)
with
the
Bolt
and
a
5/16”
Nylock
Nut
(4).
Do
not
over-
tighten
the
Nylock
Nut;
the
Leg
Lever
must
be
able
to
pivot
freely.
Insert
the
5/16”
x
2”
Eyebolt
(37)
through
the
Leg
Lever
(33)
from
the
indicated
side.
Slide
a
5/16”
`
Flat
Washer
(45)
onto
the
Eyebolt
and
tighten
a
5/16”
Nylock
Nut
(4)
onto
the
Еуерой.
Press
3/4”
Inner
Caps
(36)
into
the
ends
of
the
two
Pad
Tubes
(35).
Insert
one
Pad
Tube
(35)
into
the
Seat
Frame
(32)
and
center
it.
Slide
a
Foam
Pad
(34)
onto
each
end
of
the
Pad
Tube.
Insert
the
other
Pad
Tube
into
the
Leg
Lever
(33)
and
slide
a
Foam
Pad
onto
each
end
of
it.
Align
the
bracket
on
the
Seat
Frame
(32)
with
the
indicated
tube
on
the
Front
Upright
(19).
Insert
a
5/16”
x
2
3/4”
Carraige
Bolt
(113)
through
the
Seat
Frame
and
the
Front
Upright.
Tighten
a
5/16”
Knob
(11)
onto
the
Bolt.
Press
two
1
3/8”
Bushings
(90)
into
each
Pedal
(100,
101).
Attach
a
Pedal
Cap
(102)
to
each
Pedal
with
a
1/2”
Tap
Screw
(127).
Apply
grease
to
the
pedal
axles
on
the
Stepper
Upright
(97).
Slide
the
Right
Pedal
(101)
onto
the
right
pedal
axle,
and
the
Left
Pedal
(100)
onto
the
left
pedal
axle.
Note:
Make
sure
that
the
Pedals
are
on
the
correct
sides;
the
slotted
brackets
must
be
on
the
insides
of
the
Pedals,
as
|
shown.
Hold
a
1"
Retainer
(50)
and
1"
Plastic
Cap
(51)
against
the
end
of
the
right
pedal
axle.
The
teeth
on
the
Retainer
must
bend
outward.
Tap
the
Retainer
and
Plastic
Cap
onto
the
pedal
axle.
Attach
the
Left
Pedal
in
the
same
manner.
Apply
grease
to
the
cylinder
axles
on
the
Stepper
Upright
(97).
Slide
a
5/8”
Spacer
(106)
and
a
Resistance
Cylinder
(99)
onto
each
cylinder
axle.
Hold
a
5/8"
Retainer
(104)
and
5/8"
Plastic
Cap
(105)
against
the
end
of
the
left
cylinder
axle.
The
teeth
on
the
Retainer
must
bend
outward.
Tap
the
Retainer
and
Plastic
Cap
onto
the
cylinder
axle.
Tap
a
5/8"
Retainer
(104)
and
5/8"
Plastic
Cap
(105)
onto
the
right
cylinder
axle
in
the
same
manner.
