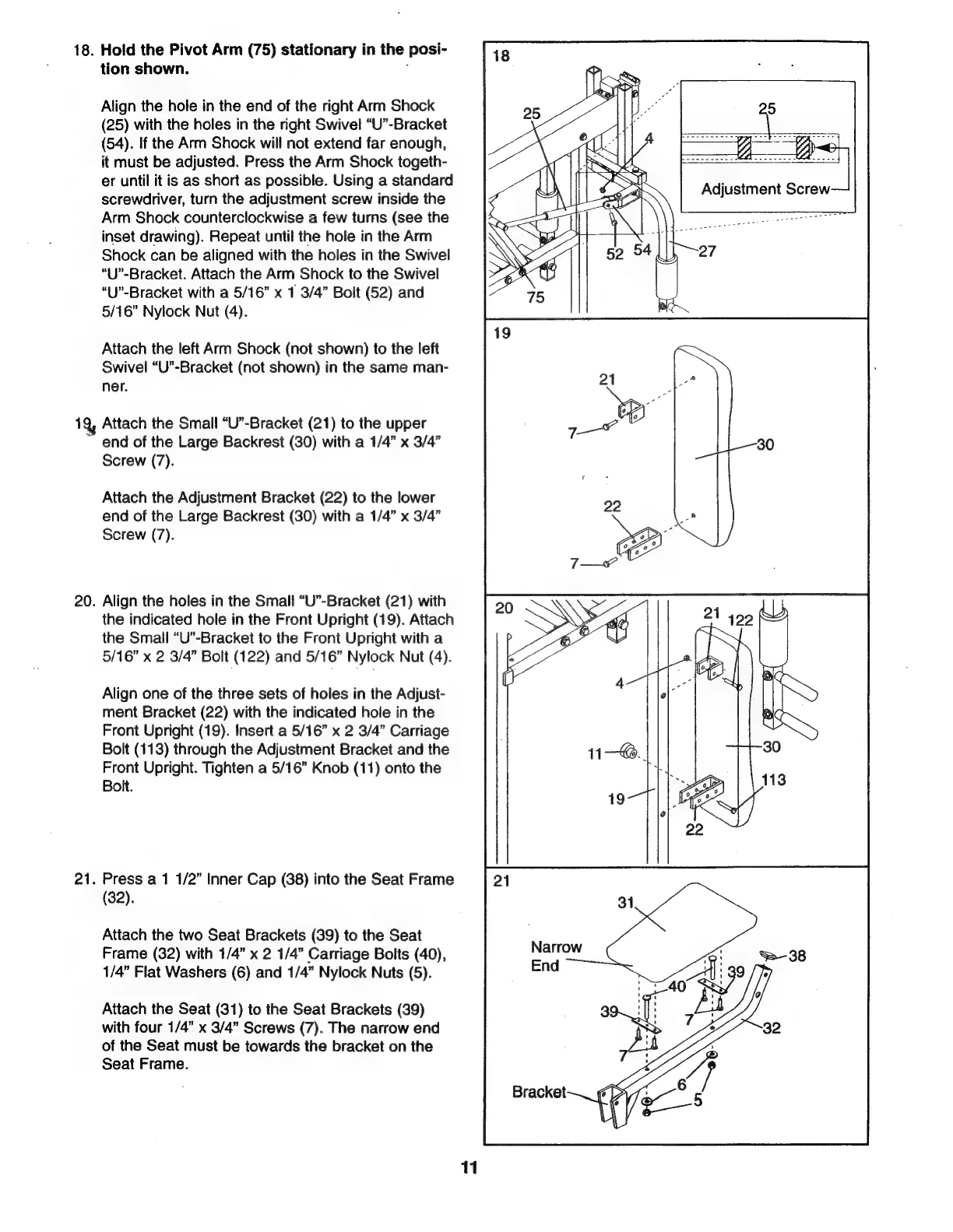

18. Hold the Pivot Arm (75) stationary іп the posi-
tion shown. ї
Align the hole in the end of the right Arm Shock
(25) with the holes іп the right Swivel “U”-Bracket
(54). If the Arm Shock will not extend far enough,
it must be adjusted. Press the Arm Shock togeth-
er until it is as short as possible. Using a standard
screwdriver, turn the adjustment screw inside the
Arm Shock counterclockwise a few turns (see the
inset drawing). Repeat until the hole in the Arm
Shock can be aligned with the holes in the Swivel
“U”-Bracket. Attach the Arm Shock to the Swivel
“О”-Вгаскеї with a 5/16” х 1 3/4” Bolt (52) and
5/16” Nylock Nut (4).
Attach the left Arm Shock (not shown) to the left
Swivel “U”-Bracket (not shown) іп the same man-
ner.
19, Attach the Small “U”-Bracket (21) to the upper
“ епа of the Large Backrest (30) with а 1/4” x 3/4”
Screw (7).
Attach the Adjustment Bracket (22) to the lower
end of the Large Backrest (30) with a 1/4” x 3/4”
Screw (7).
20. Align the holes in the Small “U”-Bracket (21) with
the indicated hole in the Front Upright (19). Attach
the Small “U”-Bracket to the Front Upright with a
5/16” x 2 3/4” Bolt (122) and 5/16” Nylock Nut (4).
Align one of the three sets of holes in the Adjust-
ment Bracket (22) with the indicated hole in the
Front Upright (19). Insert a 5/16” x 2 3/4” Carriage
Bolt (113) through the Adjustment Bracket and the
Front Upright. Tighten a 5/16” Knob (11) onto the
Bolt.
21. Press a 1 1/2” Inner Cap (38) into the Seat Frame
(32).
Attach the two Seat Brackets (39) to the Seat
Frame (32) with 1/4” x 2 1/4” Carriage Bolts (40),
1/4” Flat Washers (6) and 1/4” Nylock Nuts (5).
Attach the Seat (31) to the Seat Brackets (39)
with four 1/4” x 3/4” Screws (7). The narrow end
of the Seat must be towards the bracket on the
Seat Frame.
