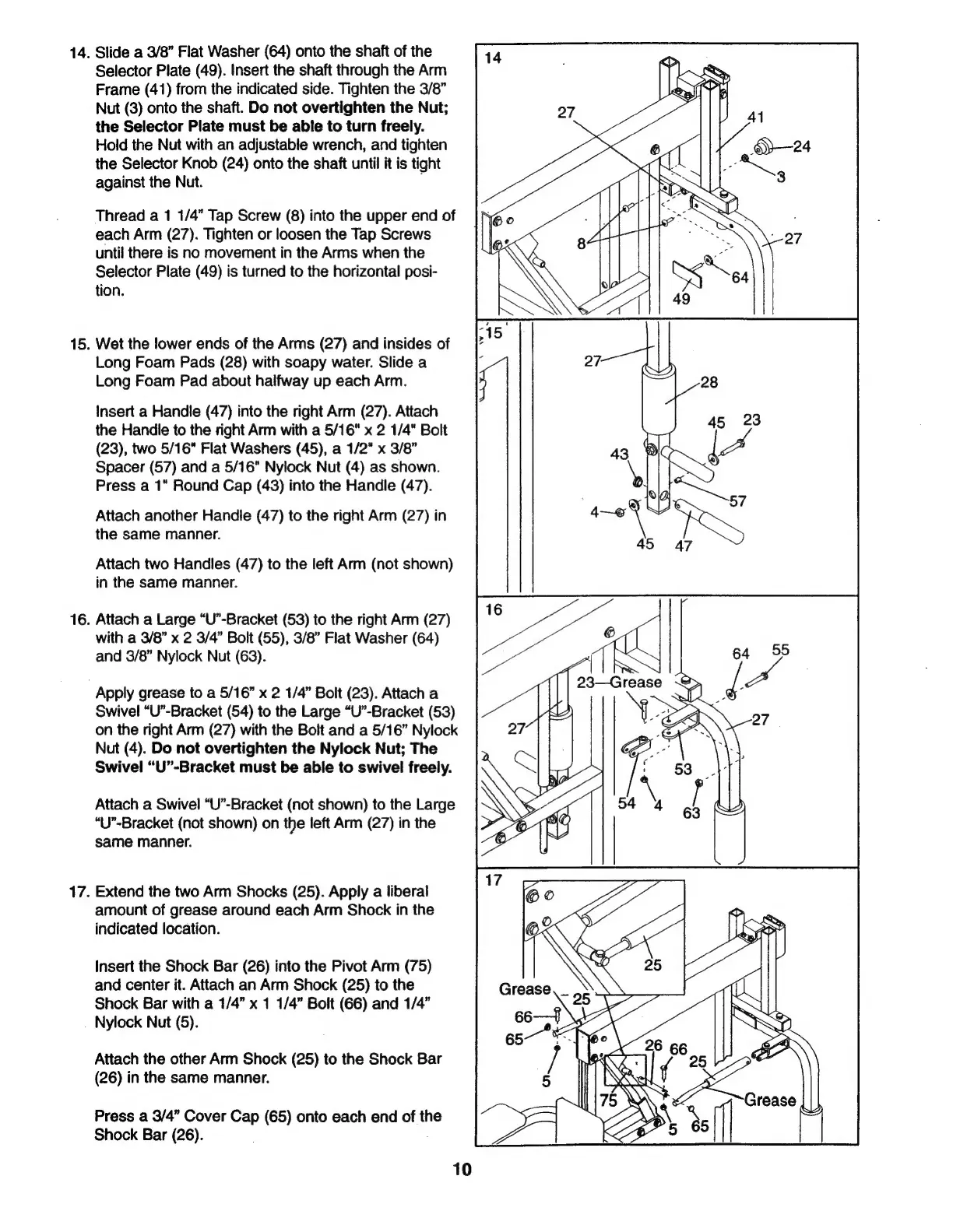

14.
Slide
а
3/8”
Flat
Washer
(64)
onto
the
shaft
of
the
Selector
Plate
(49).
Insert
the
shaft
through
the
Arm
Frame
(41)
from
the
indicated
side.
Tighten
the
3/8”
Nut
(3)
onto
the
shaft.
Do
not
overtighten
the
Nut;
the
Selector
Plate
must
be
able
to
turn
freely.
Hold
the
Nut
with
an
adjustable
wrench,
and
tighten
the
Selector
Knob
(24)
onto
the
shaft
until
it
is
tight
against
the
Nut.
,
Thread
a
1
1/4”
Tap
Screw
(8)
into
the
upper
end
of
each
Arm
(27).
Tighten
or
loosen
the
Tap
Screws
until
there
is
no
movement
in
the
Arms
when
the
Selector
Plate
(49)
is
turned
to
the
horizontal
posi-
tion.
15.
Wet
the
lower
ends
of
the
Arms
(27)
and
insides
of
Long
Foam
Pads
(28)
with
soapy
water.
Slide
a
Long
Foam
Pad
about
halfway
up
each
Arm.
Insert
a
Handle
(47)
into
the
right
Arm
(27).
Attach
the
Handle
to
the
right
Arm
with
a
5/16"
x
2
1/4"
Bolt
(23),
two
5/16"
Flat
Washers
(45),
a
1/2"
x
3/8”
Spacer
(57)
and
a
5/16"
Nylock
Nut
(4)
as
shown.
Press
a
1"
Round
Сар
(43)
into
the
Handle
(47).
Attach
another
Handle
(47)
to
the
right
Arm
(27)
in
the
same
manner.
Attach
two
Handles
(47)
to
the
left
Arm
(not
shown)
in
the
same
manner.
16.
Attach
а
Large
“U”-Bracket
(53)
to
the
right
Arm
(27)
with
a
3/8”
x
2
3/4”
Bolt
(55),
3/8”
Flat
Washer
(64)
and
3/8”
Nylock
Nut
(63).
Apply
grease
to
a
5/16”
x
2
1/4”
Bolt
(23).
Attach
a
Swivel
“U”-Bracket
(54)
to
the
Large
“U”-Bracket
(53)
on
the
right
Arm
(27)
with
the
Bolt
and
a
5/16”
Nylock
Nut
(4).
Do
not
overtighten
the
Nylock
Nut;
The
Swivel
“U”-Bracket
must
be
able
to
swivel
freely.
Attach
a
Swivel
“U”-Bracket
(not
shown)
to
the
Large
“U”-Bracket
(not
shown)
on
the
left
Arm
(27)
in
the
same
manner.
17.
Extend
the
two
Arm
Shocks
(25).
Apply
a
liberal
amount
of
grease
around
each
Arm
Shock
in
the
indicated
location.
Insert
the
Shock
Bar
(26)
into
the
Pivot
Arm
(75)
and
center
it.
Attach
an
Arm
Shock
(25)
to
the
Shock
Bar
with
a
1/4”
x
1
1/4”
Bolt
(66)
and
1/4”
Nylock
Nut
(5).
Attach
the
other
Arm
Shock
(25)
to
the
Shock
Bar
(26)
in
the
same
manner.
Press
a
3/4”
Cover
Cap
(65)
onto
each
end
of
th
Shock
Bar
(26).
s
10
