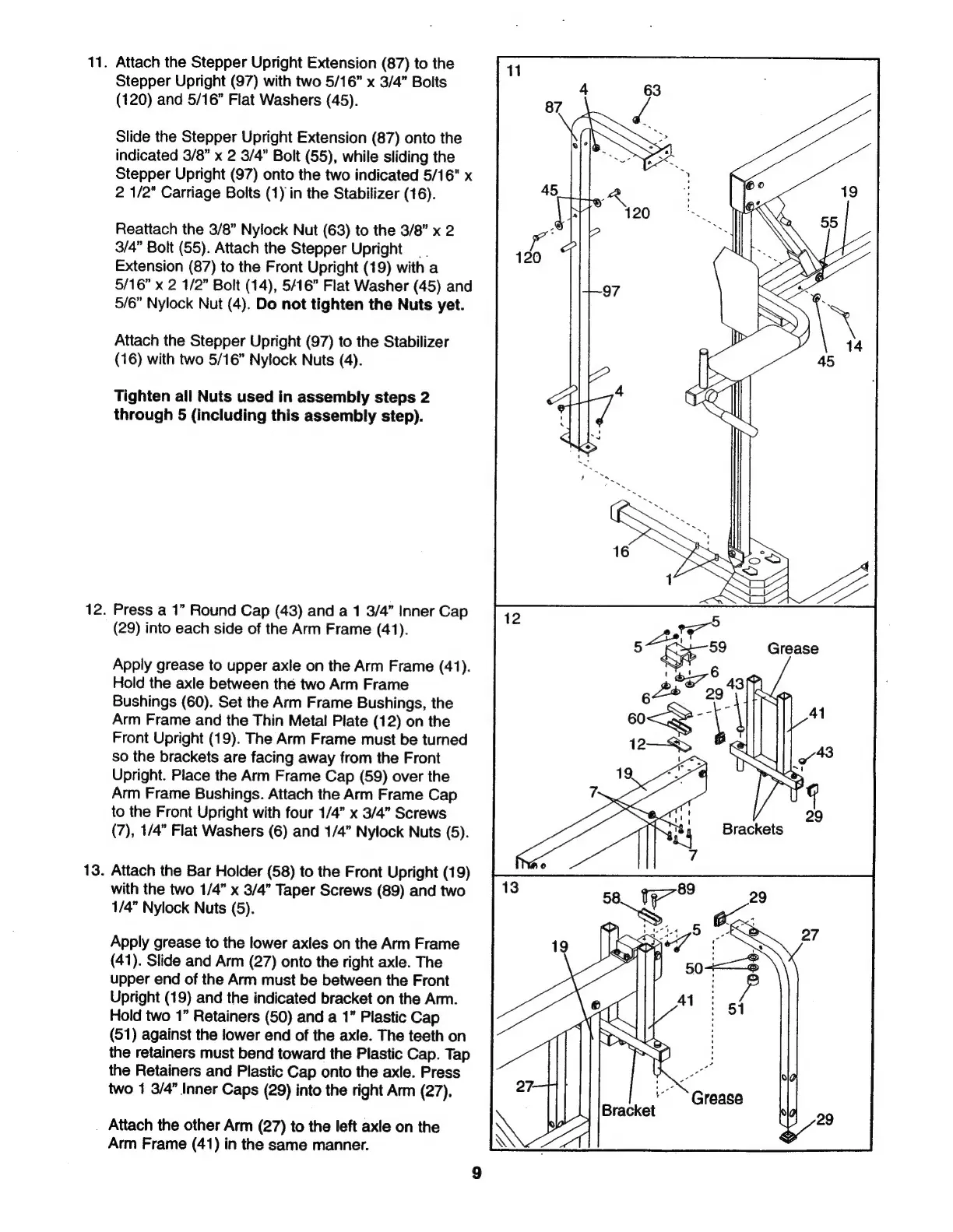

11. Attach the Stepper Upright Extension (87) to the
Stepper Upright (97) with two 5/16” x 3/4” Bolts
(120) and 5/16” Flat Washers (45).
Slide the Stepper Upright Extension (87) onto the
indicated 3/8” x 2 3/4” Bolt (55), while sliding the
Stepper Upright (97) onto the two indicated 5/16" x
2 1/2" Carriage Bolts (1) in the Stabilizer (16).
Reattach the 3/8” Nylock Nut (63) to the 3/8” x 2
3/4” Bolt (55). Attach the Stepper Upright _.
Extension (87) to the Front Upright (19) with a
5/16” x 2 1/2” Bolt (14), 5/16” Flat Washer (45) and
5/6” Nylock Nut (4). Do not tighten the Nuts yet.
Attach the Stepper Upright (97) to the Stabilizer
(16) with two 5/16” Nylock Nuts (4).
Tighten all Nuts used in assembly steps 2
through 5 (including this assembly step).
12. Press a 1” Round Cap (43) and a 1 3/4” Inner Cap
(29) into each side of the Arm Frame (41).
Apply grease to upper axle on the Arm Frame (41).
Hold the axle between the two Arm Frame
Bushings (60). Set the Arm Frame Bushings, the
Arm Frame and the Thin Metal Plate (12) on the
Front Upright (19). The Arm Frame must be turned
so the brackets are facing away from the Front
Upright. Place the Arm Frame Cap (59) over the
Arm Frame Bushings. Attach the Arm Frame Cap
to the Front Upright with four 1/4” x 3/4” Screws
(7), 1/4” Flat Washers (6) and 1/4” Nylock Nuts (5).
13. Attach the Bar Holder (58) to the Front Upright (19)
with the two 1/4” x 3/4” Taper Screws (89) and two
1/4” Nylock Nuts (5).
Apply grease to the lower axles on the Arm Frame
(41). Slide and Arm (27) onto the right axle. The
upper end of the Arm must be between the Front
Upright (19) and the indicated bracket on the Arm.
Hold two 1” Retainers (50) and a 1” Plastic Cap
(51) against the lower end of the axle. The teeth on
the retainers must bend toward the Plastic Cap. Tap
the Retainers and Plastic Cap onto the axle. Press
two 1 3/4” Inner Caps (29) into the right Arm (27),
. Attach the other Arm (27) to the left axle on the
Arm Frame (41) in the same manner.
