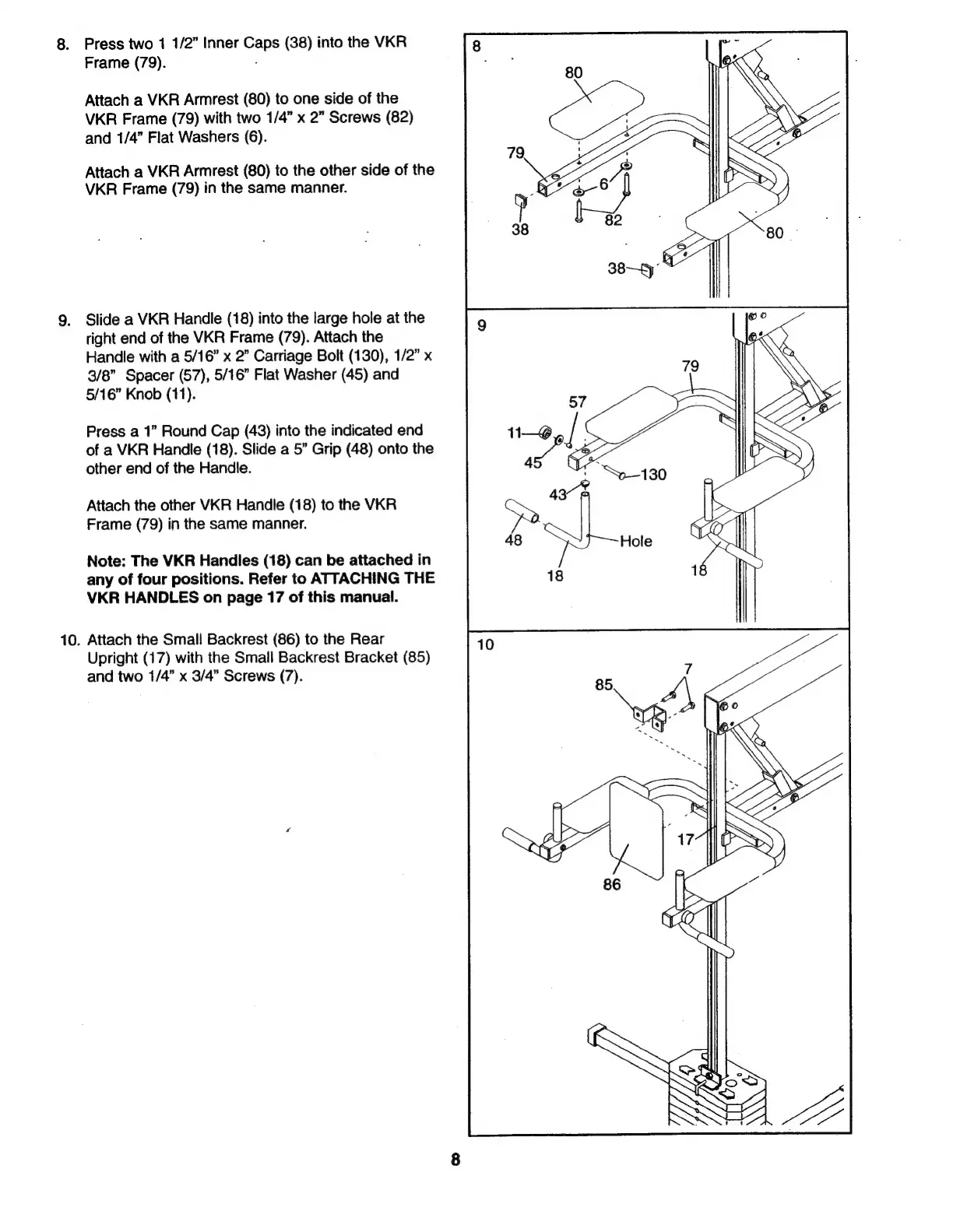

8.
Press
two
1
1/2”
Inner
Caps
(38)
into
the
VKR
Frame
(79).
.
Attach
а
УКВ
Armrest
(80)
to
one
side
of
the
VKR
Frame
(79)
with
two
1/4”
x
2”
Screws
(82)
and
1/4”
Flat
Washers
(6).
Attach
a
VKR
Armrest
(80)
to
the
other
side
of
the
VKR
Frame
(79)
in
the
same
manner.
9.
Slide
a
VKR
Handle
(18)
into
the
large
hole
at
the
right
end
of
the
VKR
Frame
(79).
Attach
the
Handle
with
a
5/16”
x
2”
Carriage
Bolt
(130),
1/2”
x
3/8”
Spacer
(57),
5/16”
Flat
Washer
(45)
and
5/16”
Knob
(11).
Press
a
1”
Round
Cap
(43)
into
the
indicated
end
of
a
VKR
Handle
(18).
Slide
a
5”
Grip
(48)
onto
the
other
end
of
the
Handle.
Attach
the
other
VKR
Handle
(18)
to
the
VKR
Frame
(79)
in
the
same
manner.
Note:
The
VKR
Handles
(18)
can
be
attached
in
any
of
four
positions.
Refer
to
ATTACHING
THE
VKR
HANDLES
on
page
17
of
this
manual.
10.
Attach
the
Small
Backrest
(86)
to
the
Rear
Upright
(17)
with
the
Small
Backrest
Bracket
(85)
and
two
1/4”
x
3/4”
Screws
(7).
