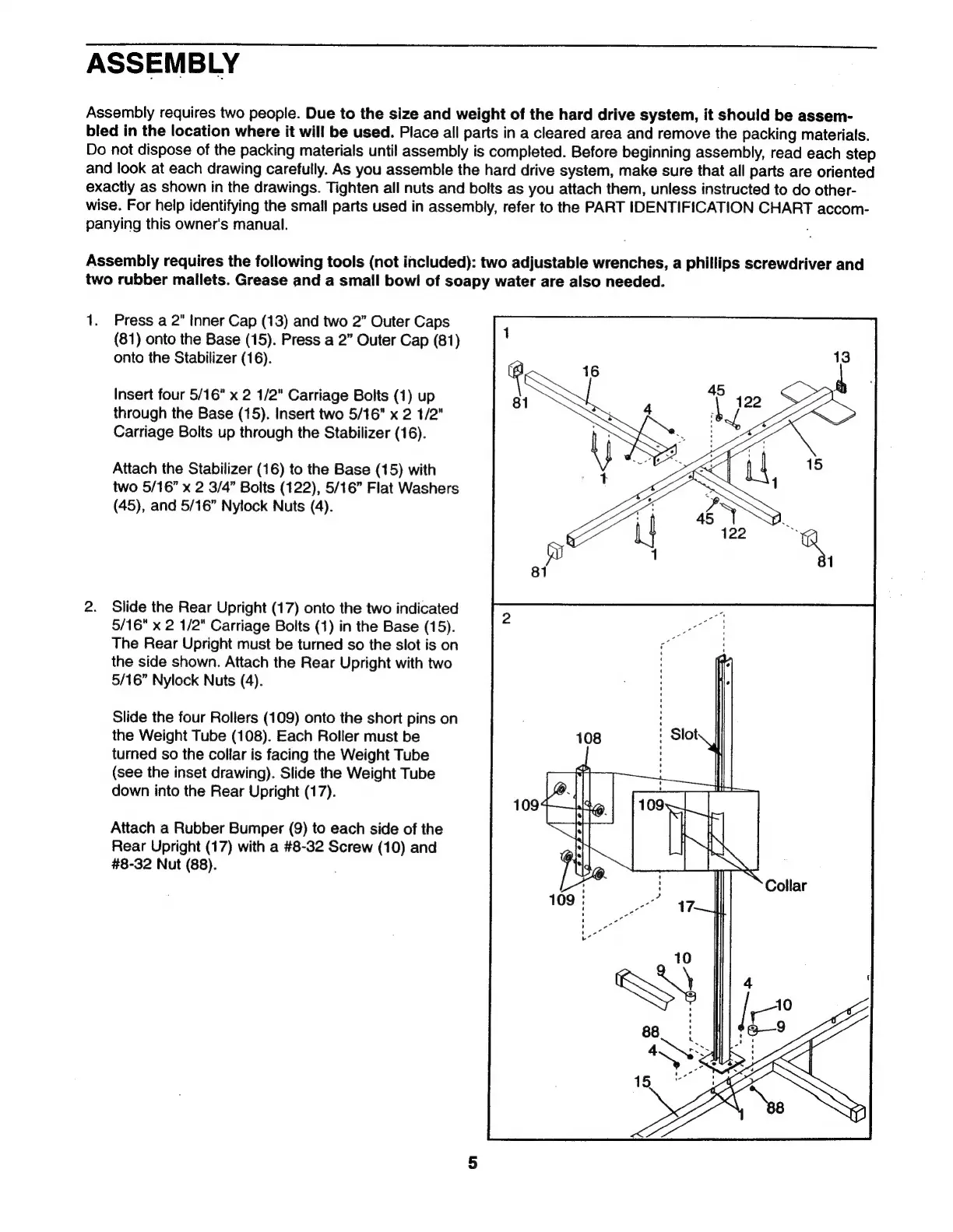

ASSEMBLY
Assembly
requires
two
people.
Due
to
the
size
and
weight
of
the
hard
drive
system,
it
should
be
assem-
bled
in
the
location
where
it
will
be
used.
Place
all
parts
in
a
cleared
area
and
remove
the
packing
materials.
Do
not
dispose
of
the
packing
materials
until
assembly
is
completed.
Before
beginning
assembly,
read
each
step
and
look
at
each
drawing
carefully.
As
you
assemble
the
hard
drive
system,
make
sure
that
all
parts
are
oriented
exactly
as
shown
in
the
drawings.
Tighten
all
nuts
and
bolts
as
you
attach
them,
unless
instructed
to
do
other-
wise.
For
help
identifying
the
small
parts
used
in
assembly,
refer
to
the
PART
IDENTIFICATION
CHART
accom-
panying
this
owner's manual.
Assembly
requires
the
following
tools
(not
included):
two
adjustable
wrenches,
a
phillips
screwdriver
and
two
rubber
mallets.
Grease
and
a
small
bowl
of
soapy
water
are
also
needed.
1. Press а 2" Inner Сар (13) and two 2” Outer Caps
(81) onto the Base (15). Press a 2” Outer Cap (81)
onto the Stabilizer (16).
Insert four 5/16" x 2 1/2" Carriage Bolts (1) up
through the Base (15). Insert two 5/16" x 2 1/2"
Carriage Bolts up through the Stabilizer (16).
Attach the Stabilizer (16) to the Base (15) with
two 5/16” x 2 3/4” Bolts (122), 5/16” Flat Washers
(45), and 5/16” Nylock Nuts (4).
2. Slide the Rear Upright (17) onto the two indicated
5/16" x 2 1/2" Carriage Bolts (1) in the Base (15).
The Rear Upright must be turned so the slot is on
the side shown. Attach the Rear Upright with two
5/16” Nylock Nuts (4).
Slide the four Rollers (109) onto the short pins on
the Weight Tube (108). Each Roller must be
turned so the collar is facing the Weight Tube
(see the inset drawing). Slide the Weight Tube
down into the Rear Upright (17).
Attach a Rubber Bumper (9) to each side of the
Rear Upright (17) with a #8-32 Screw (10) and
#8-32 Nut (88).
