Weider 8507 - Assembly: Top Frame Cable Connections; Top Frame Bolts, Pulleys, and Cable Plate Assembly

12

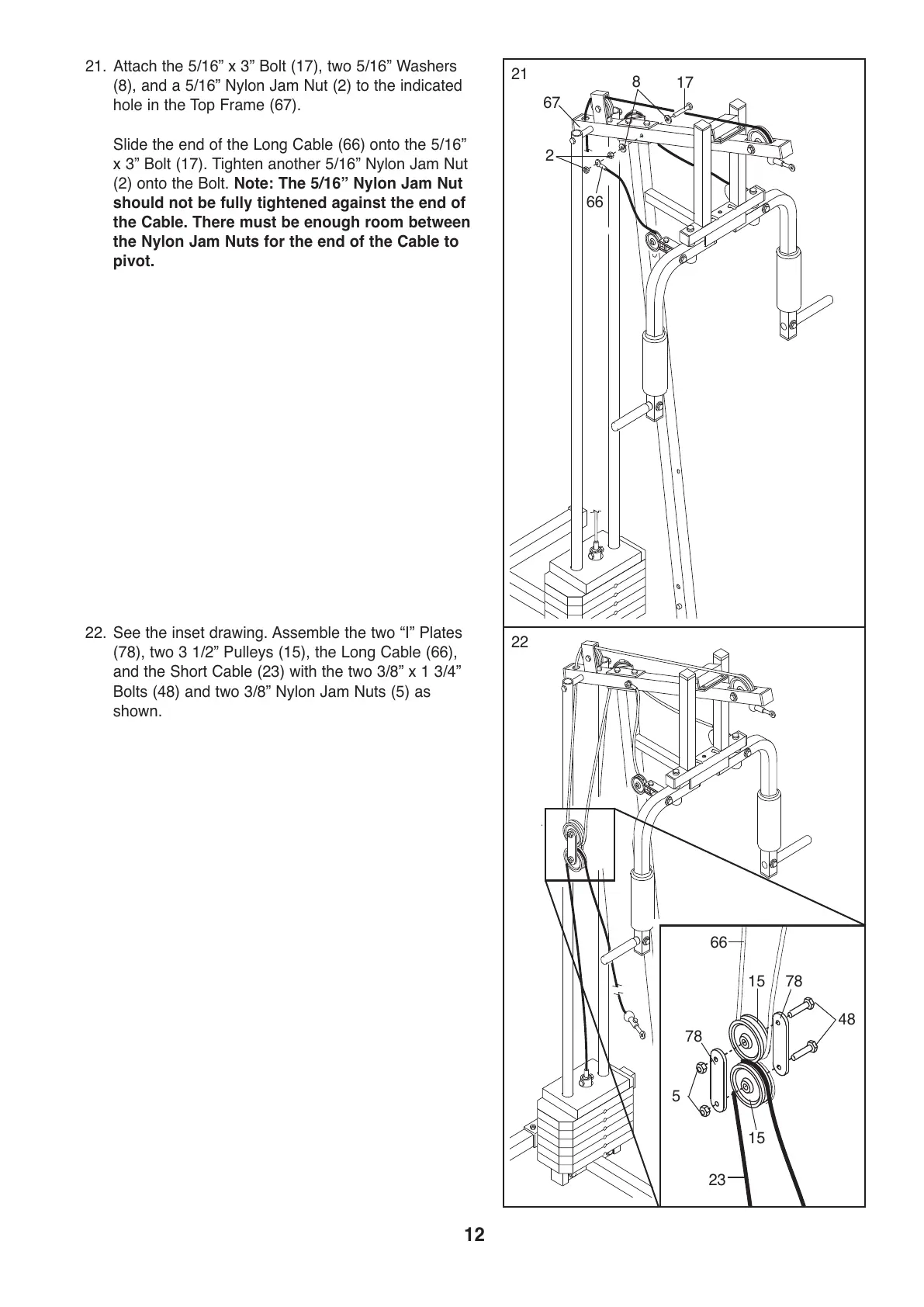

21. Attach the 5/16” x 3” Bolt (17), two 5/16” Washers
(8), and a 5/16” Nylon Jam Nut (2) to the indicated
hole in the Top Frame (67).
Slide the end of the Long Cable (66) onto the 5/16”
x
3” Bolt (17). Tighten another 5/16” Nylon Jam Nut
(2) onto the Bolt. Note: The 5/16” Nylon Jam Nut
should not be fully tightened against the end of
the Cable. There must be enough room between
the Nylon Jam Nuts for the end of the Cable to
pivot.
22. See the inset drawing. Assemble the two “I” Plates
(78), two 3 1/2” Pulleys (15), the Long Cable (66),
and the Short Cable (23) with the two 3/8” x 1 3/4”
Bolts (48) and two 3/8” Nylon Jam Nuts (5) as
shown.
22
21
67
8
17
2
6
6
78
23
66
15
15
48
5
78
