Weider 8507 - Assembly: Weight Stack Foundation; Weight Guides, Uprights, and Initial Tightening

5

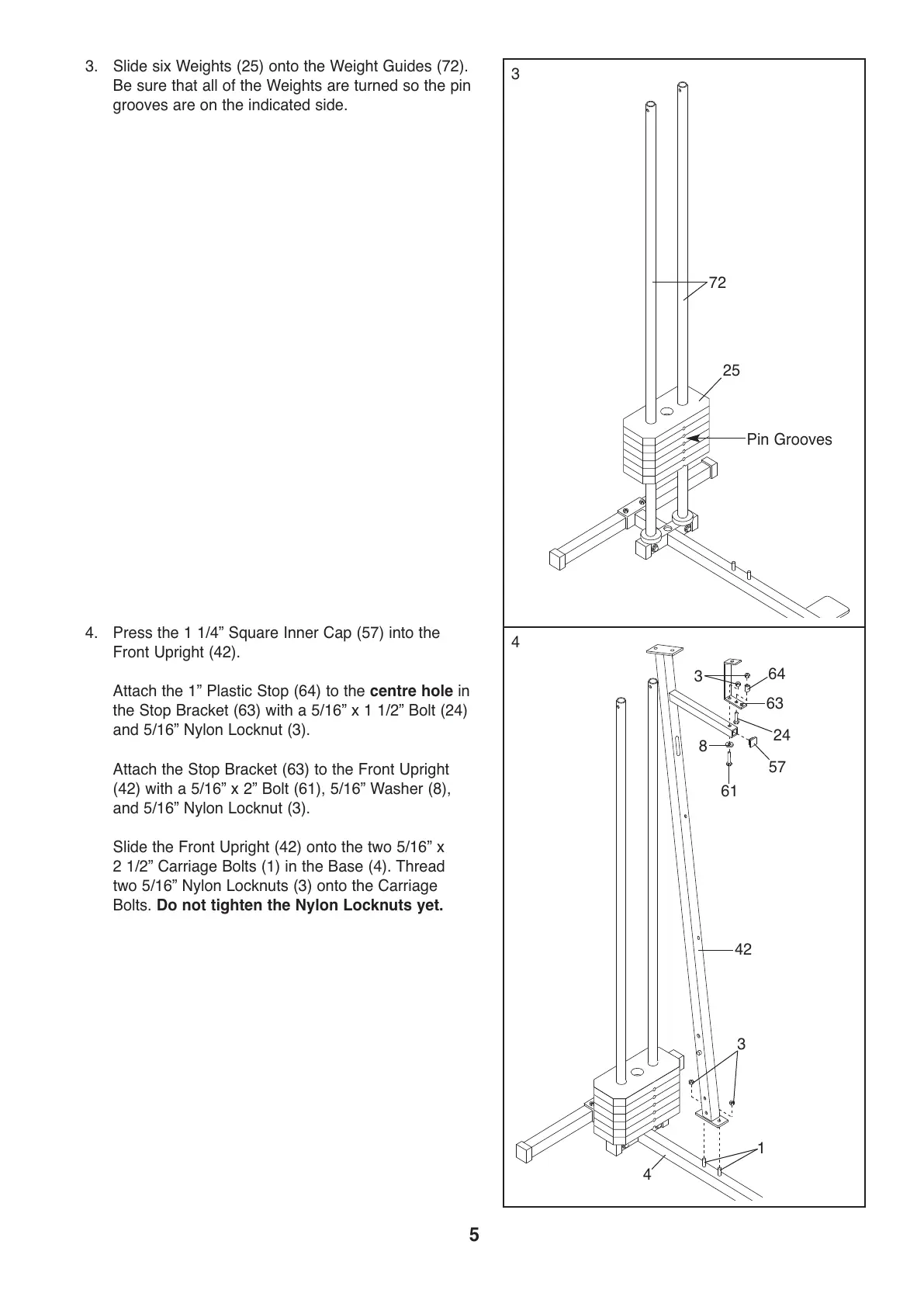

3. Slide six Weights (25) onto the Weight Guides (72).
Be sure that all of the Weights are turned so the pin
grooves are on the indicated side.
4. Press the 1 1/4” Square Inner Cap (57) into the
Front Upright (42).
Attach the 1” Plastic Stop (64) to the centre hole in
the Stop Bracket (63) with a 5/16” x 1 1/2” Bolt (24)
and 5/16” Nylon Locknut (3).
Attach the Stop Bracket (63) to the Front Upright
(42) with a 5/16” x 2” Bolt (61), 5/16” Washer (8),
and 5/16” Nylon Locknut (3).
Slide the Front Upright (42) onto the two 5/16” x
2 1/2” Carriage Bolts (1) in the Base (4). Thread
two 5/16” Nylon Locknuts (3) onto the Carriage
Bolts. Do not tighten the Nylon Locknuts yet.
3
4
25
72
Pin Grooves
42
1
4
3
61
8
57
64
24
63
3
