6

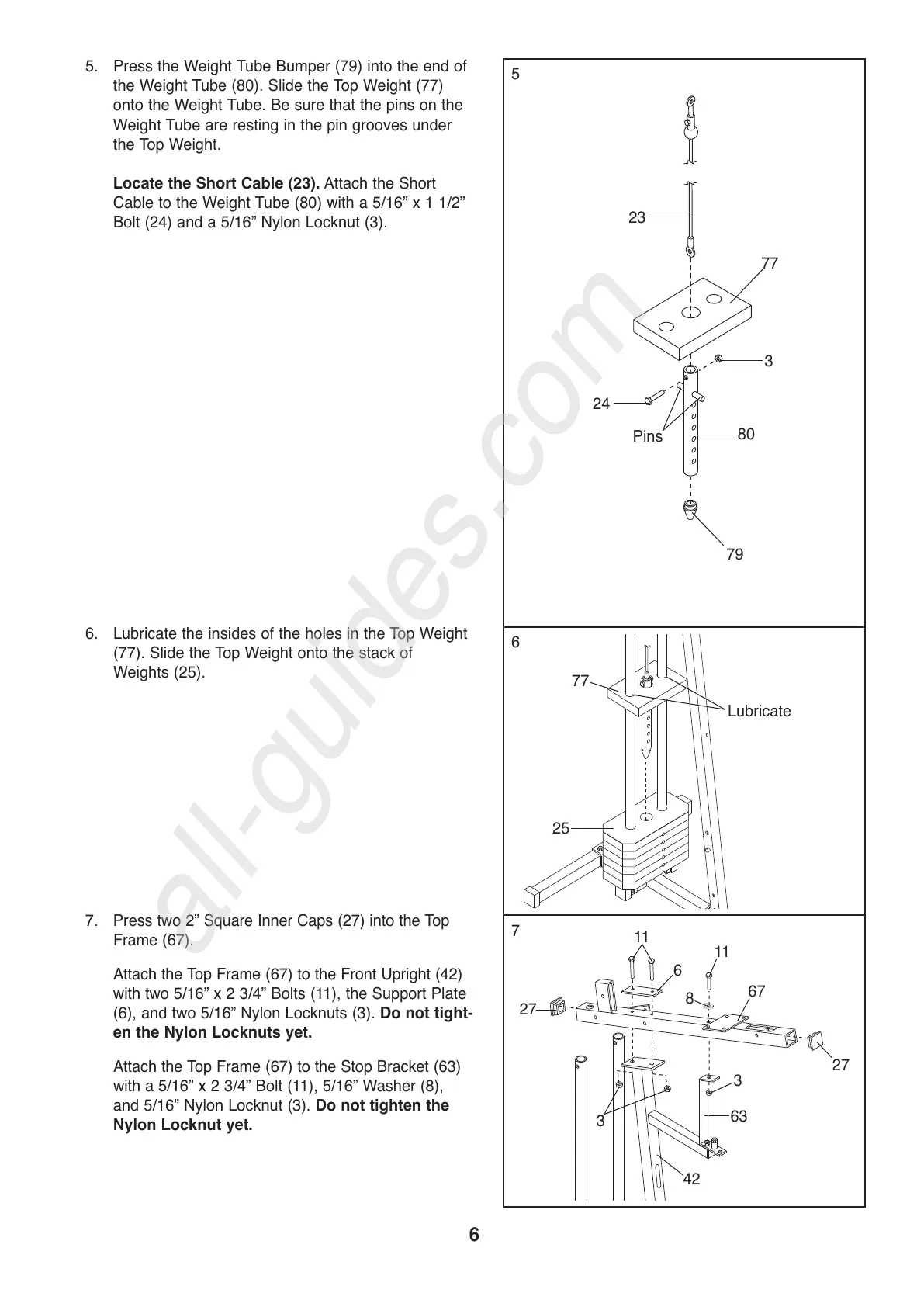

5. Press the Weight Tube Bumper (79) into the end of
the Weight Tube (80). Slide the Top Weight (77)
onto the Weight Tube. Be sure that the pins on the
W
eight Tube are resting in the pin grooves under
the Top Weight.
Locate the Short Cable (23). Attach the Short
Cable to the Weight Tube (80) with a 5/16” x 1 1/2”
Bolt (24) and a 5/16” Nylon Locknut (3).
6. Lubricate the insides of the holes in the Top Weight
(77). Slide the Top Weight onto the stack of
Weights (25).
7. Press two 2”
Square
Inner Caps (27) into the Top
Frame (67).
Attach the Top Frame (67) to the Front Upright (42)
with two 5/16” x 2 3/4” Bolts (11), the Support Plate
(6), and two 5/16” Nylon Locknuts (3). Do not tight-
en the Nylon Locknuts yet.
Attach the Top Frame (67) to the Stop Bracket (63)
with a 5/16” x 2 3/4” Bolt (11), 5/16” Washer (8),
and 5/16” Nylon Locknut (3). Do not tighten the
Nylon Locknut yet.
7
5
6
23
77
3
80
79
Lubricate
24
Pins
77
25
8
42
63
3
3
6
11
11
67
27
27
